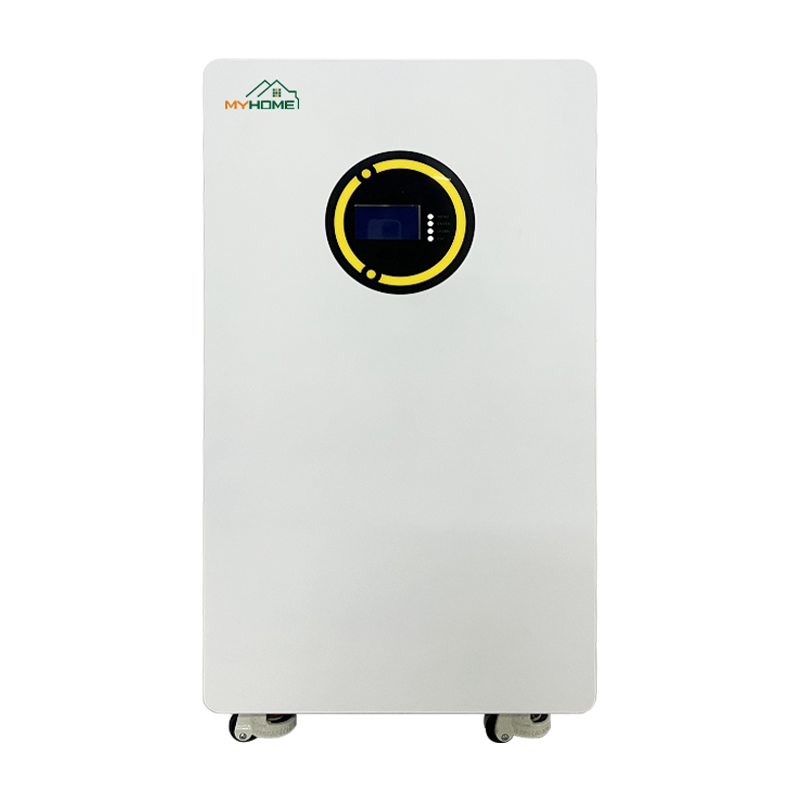

25.6V 314Ah 8038Wh Wall-Mounted Lithium Battery with Built-In BMS
25.6V 314Ah 8,038Wh Wall-Mounted Lithium Battery with Built-In BMS is a wall-mounted lithium battery designed for residential energy storage and backup power systems. It provides 8,038Wh of nominal energy capacity and includes a built-in BMS for battery protection. The IP54 design supports suitable indoor installation environments, while the 6000 times deep cycle design is intended for long-term energy storage use. It can be integrated with compatible solar systems and inverters for household backup applications.
Purchasing Information
MOQ: 100 pcs
Lead Time: 35 days
Payment Terms: TT / DP / LC
Shipping Methods: Maritime shipping / Air freight / Road transportation
For bulk orders, buyers can confirm the battery configuration, inverter compatibility, parallel connection requirements, branding, and packaging specifications before production.
Technical Specifications
| Model | 25.6V314AH | 51.2V314AH |
| Total(WH) | 8038.4 | 16076.8 |
| Nominal Voltage(V) | 25.6 | 51.2 |
| Battery Cell Energy(Ah) | 314 | 314 |
| Discharge voltage(V) | 29.2-20 | 58.4-40 |
| Charge voltage(V) | 29.2 | 58.4 |
| Max.Charge current(A) | 200 | 200 |
| Max.Discharge current(A) | 200 | 200 |
| Communication port | RS232/RS485/CAN-BUS | |
| Scalable | 16 | |
| Altitude | <2000M | |
| Humidity | <95% RH | |
| Operating termperature(°C) | -10~50 | |
| Storage Temperature(°C) | 0~35 | |
| Depth of discharge(DOD) | 80% | |
| Cycle life | 6000 cycle @ 80% DOD 25°C | |
| Design life | 10 years | |
| Installation | On Floor | |
| Weight(kg) | 88 | 140 |
| Dimension(L*W*H)mm | 430*250*460 | 430*250*750 |
| Ingress Protection | IP54 | |
