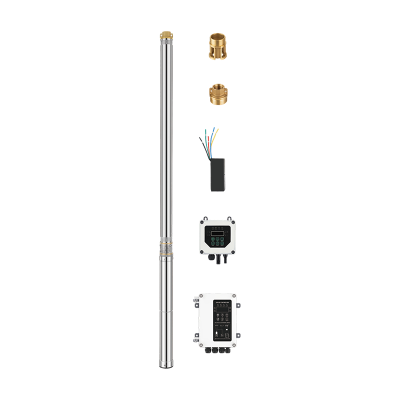

2TY1/1.5 2-Inch Solar Well Pump 300W-500W

The 2-Inch Solar Well Pump is widely used for:

• Deep well water extraction
• Household water supply
• Garden and agricultural irrigation
• Pasture and grassland water supply
• Water tower and long-distance water delivery

Solar-Powered Operation
2-Inch Solar Well Pump uses solar energy and low-voltage DC power for off-grid water supply applications.

Brushless DC Motor
The brushless DC motor with a permanent magnet rotor provides stable operation and good starting performance.

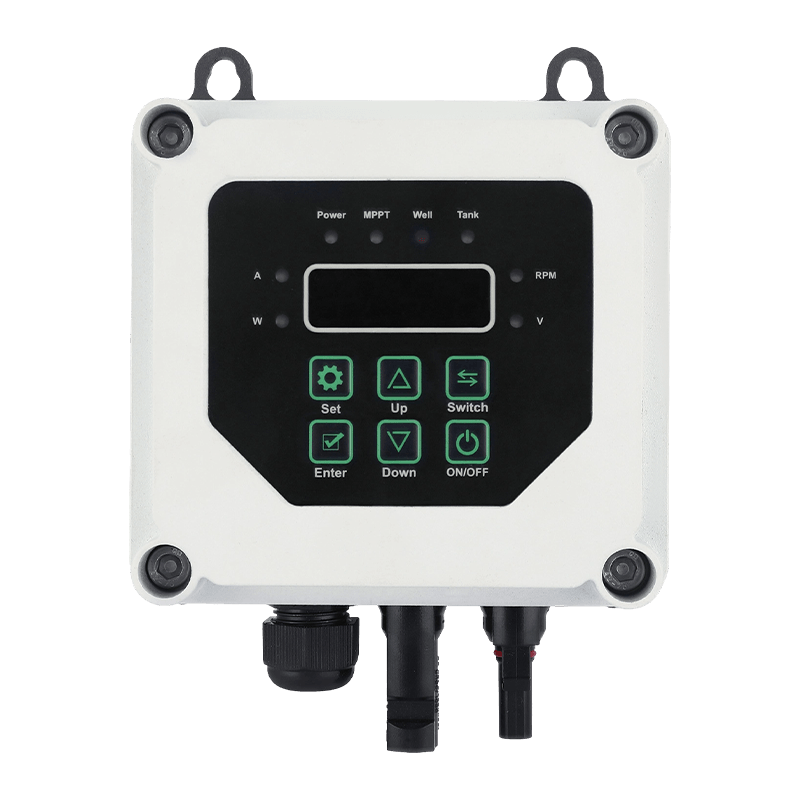

MPPT Controller
The MPPT controller supports sinusoidal starting and commutation for solar-powered operation.
Multiple Protection Functions

The controller provides undervoltage, overvoltage, overcurrent, overload, and no-water protection with automatic recovery.

Compact Deep-Well Design
2-Inch Solar Well Pump has a maximum outer diameter of 55 mm and supports a diving depth of 1-50 m.

Water Delivery Performance
The pump provides a maximum flow of 1.9 m³/h and a maximum head of 77 m.

2-Inch Solar Well Pump 300W-500W supports customer brand customization for B2B orders. OEM requirements such as branding, product labeling, packaging, and other agreed specifications can be discussed according to order quantity and production requirements.

Q1: What well size is the 2-Inch Solar Well Pump suitable for?
The maximum outer diameter is 55 mm, making it suitable for 2.5-inch deep well applications.

Q2: What is the maximum pumping depth?
The specified diving depth is 1-50 m, while the maximum head is 77 m.

Q3: What water conditions are required?
The medium temperature should be below 40°C, sand content should not exceed 2%, and the pH value should remain between 5 and 10. The pump must be completely immersed in water during operation.

Q4: What protection functions are available?
The controller provides undervoltage, overvoltage, overcurrent, overload, and no-water protection with automatic recovery.

Q5: What is the MOQ for 2-Inch Solar Well Pump 300W-500W?
The MOQ is 100 pcs, with a standard lead time of 35 days. Customer brand customization is also available.
