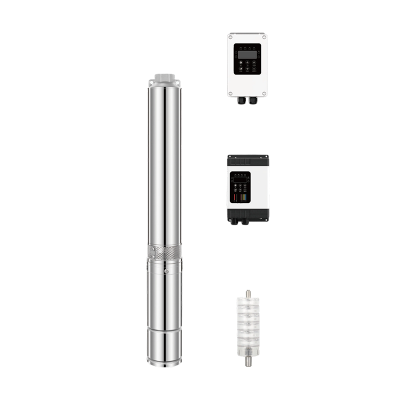

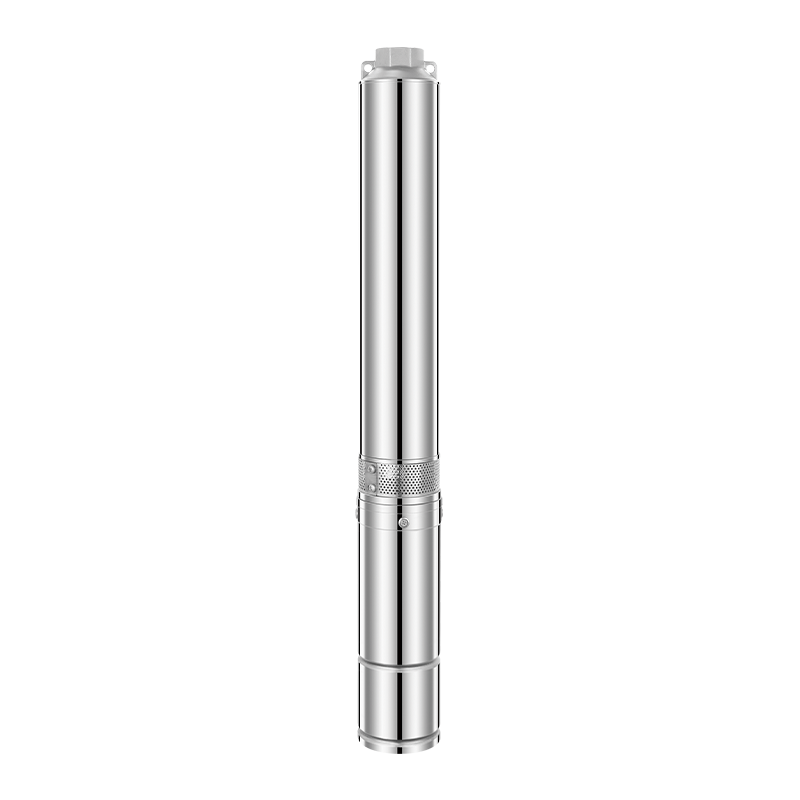

4TYF 4-Inch Solar Well Pump with Square-Wave Controller 600W-1500W

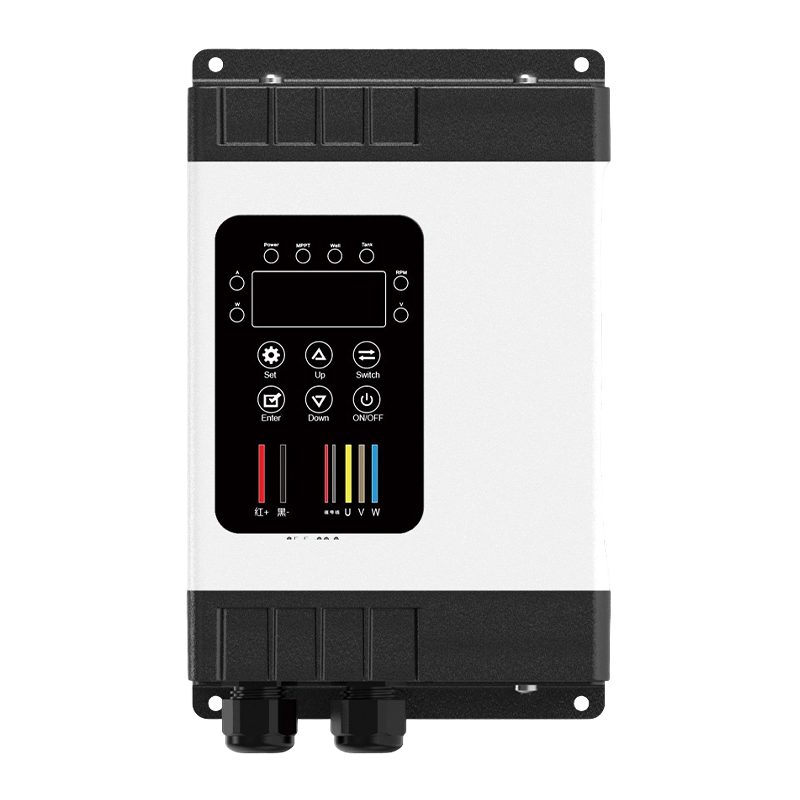

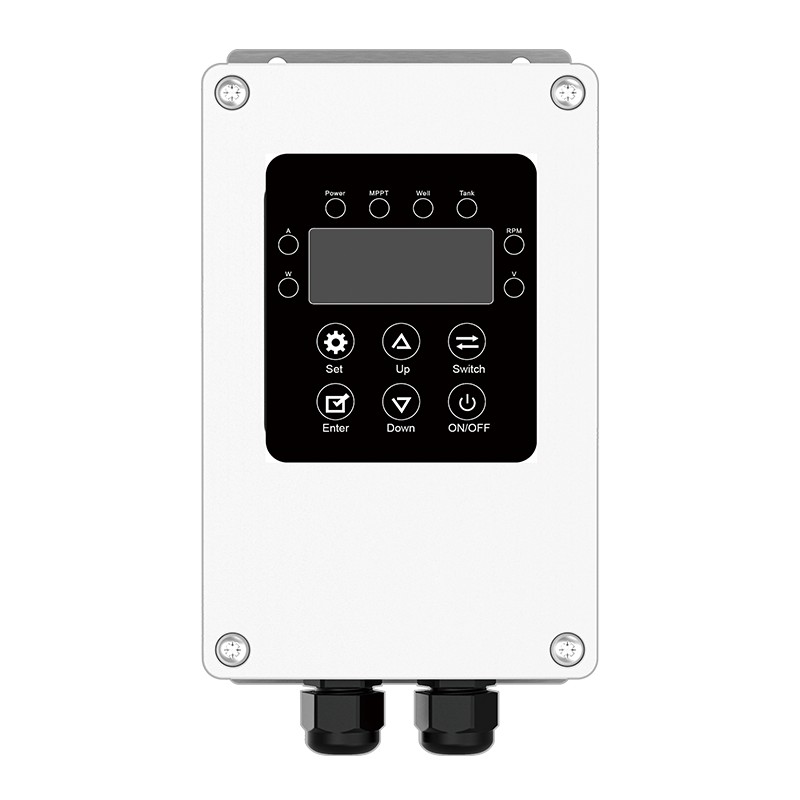

4-Inch Solar Well Pump with Square-Wave Controller 600W-1500W is a submersible pump designed for 4-inch deep well water extraction and water supply. Model 4TYF uses solar energy as the main power source and a brushless DC motor for operation. The external square-wave DC controller provides pump control and protection functions. It is suitable for agricultural irrigation, household water supply, livestock water supply, and other off-grid water systems.

Purchasing Information
MOQ: 100 pcs
Lead Time: 35 days
Payment Terms: TT / DP / LC
Shipping: Maritime shipping, air freight, or road transportation
B2B Supply: Suitable for distributors, importers, irrigation suppliers, and water system contractors

For procurement, buyers should confirm the required power range, well dimensions, installation depth, water conditions, and solar system configuration before placing an order.

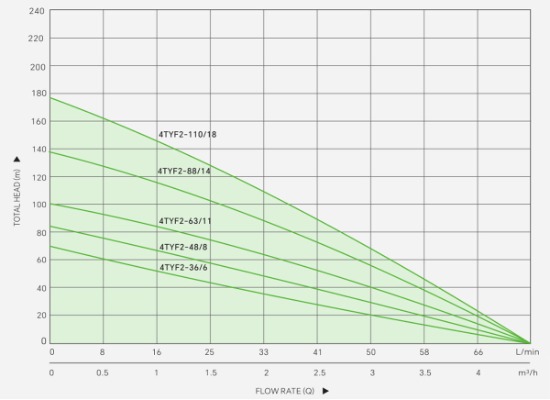

4TYF2
x14 fifqxcck1788250611

Technical Specifications

Model Voltage (V) Best Input Voltage DC (V) Power (W) Max.Flow (m3/h) Max.Head (m) Outlet (In) Cable (m) Solar Panel Open Voltage (V) Solar Panel Power (W)
4TYF2-36/6-600W/60V 60 60-84 600 4 68 1.25" 2 <155 ≥720
4TYF2-48/8-750W/72V 72 72-124 750 4 84 1.25" 2 <155 ≥900
4TYF2-63/11-900W/96V 96 96-124 900 4 100 1.25" 2 <155 ≥1080
4TYF2-88/14-1200W/110V 110 110-164 1200 4 137 1.25" 2 <210 ≥1440
4TYF2-110/18-1500W/110V 110 110-164 1500 4 176 1.25" 2 <210 ≥1800

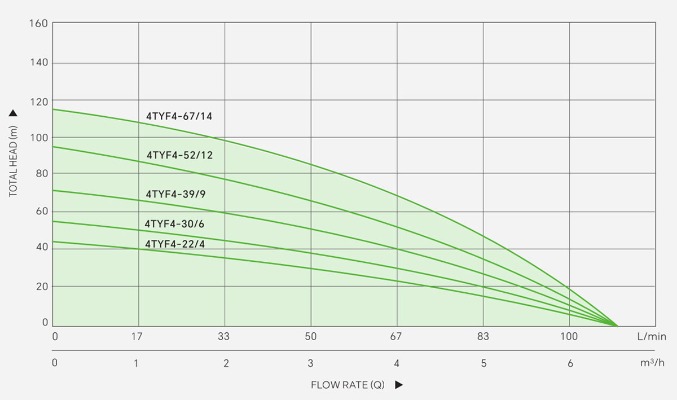

4TYF4
41638 ktocaysw1788250792

Technical Specifications

Model Voltage (V) Best Input Voltage DC (V) Power (W) Max.Flow (m3/h) Max.Head (m) Outlet (In) Cable (m) Solar Panel Open Voltage (V) Solar Panel Power (W)
4TYF4-22/4-600W/60V 60 60-84 600 6.5 42 1.25/1.5" 2 <155 ≥720
4TYF4-30/6-750W/72V 72 72-124 750 6.5 56 1.25/1.5" 2 <155 ≥900
4TYF4-39/9-900W/96V 96 96-124 900 6.5 72 1.25/1.5" 2 <155 ≥1080
4TYF4-52/12-1200W/110V 110 110-164 1200 6.5 95 1.25/1.5" 2 <210 ≥1440
4TYF4-67/14-1500W/110V 110 110-164 1500 6.5 116 1.25/1.5" 2 <210 ≥1800

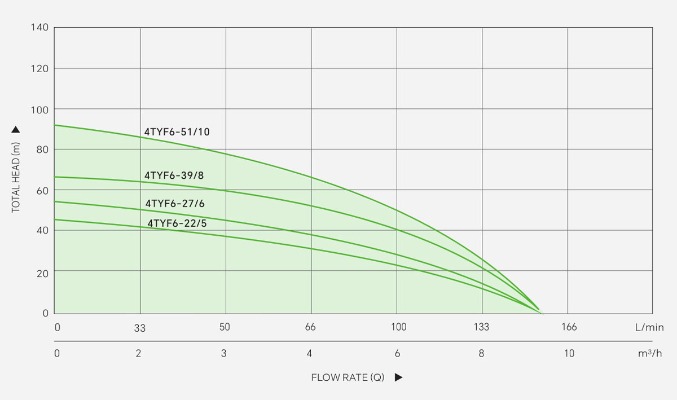

4TYF6
41638 djcydenl1788250911

Technical Specifications

Model Voltage (V) Best Input Voltage DC (V) Power (W) Max.Flow (m3/h) Max.Head (m) Outlet (In) Cable (m) Solar Panel Open Voltage (V) Solar Panel Power (W)
4TYF6-22/5-750W/72V 12 72-124 750 9 45 1.5/2" 2 <155 ≥900
4TYF6-27/6-900W/96V 96 96-124 900 9 55 1.5/2" 2 <155 ≥1080
4TYF6-39/8-1200W/110V 110 110-164 1200 9 67 1.5/2" 2 <210 ≥1440
4TYF6-51/10-1500W/110V 110 110-164 1500 9.5 92 1.5/2" 2 <210 ≥1800

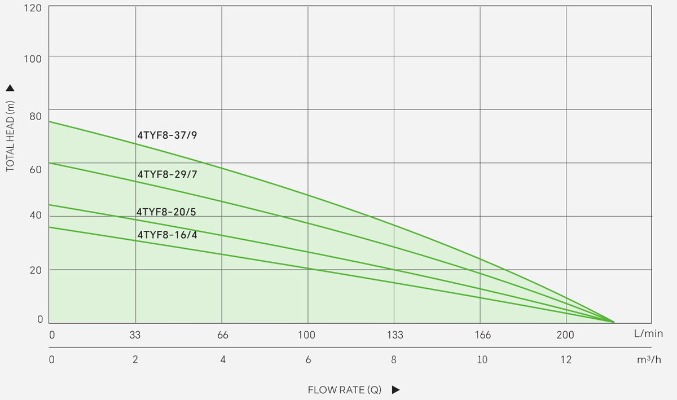

4TYF8
41638 rbmpovky1788251121

Technical Specifications

Model Voltage (V) Best Input Voltage DC (V) Power (W) Max.Flow (m3/h) Max.Head (m) Outlet (In) Cable (m) Solar Panel Open Voltage (V) Solar Panel Power (W)
4TYF8-16/4-750W/72V 72 72-124 750 13 36 2" 2 <155 ≥900
4TYF8-20/5-900W/96V 91 96-124 900 13 43 2" 2 <155 ≥1080
4TYF8-29/7-1200W/110V 110 110-164 1200 13 59 2" 2 <210 ≥1440
4TYF8-37/9-1500W/110V 110 110-164 1500 13 76 2" 2 <210 ≥1800

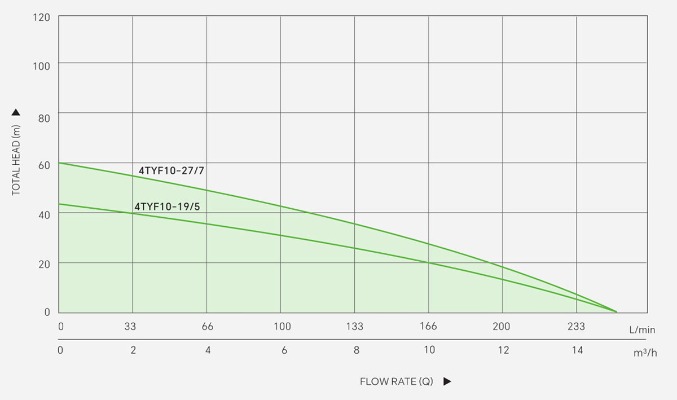

4TYF10
41638 gohfdkab1788251228

Technical Specifications

Model Voltage (V) Best Input Voltage DC (V) Power (W) Max.Flow (m3/h) Max.Head (m) Outlet (In) Cable (m) Solar Panel Open Voltage (V) Solar Panel Power (W)
4TYF10-19/5-1200W/110V 110 110-164 1200 15 44 T 2 <210 ≥1440
4TYF10-27/7-1500W/110V 110 110-164 1500 15 60 T 2 <210 ≥1800

Inquiry Now


  • The 4-Inch Solar Well Pump with Square-Wave Controller is widely used for:

    • Deep well water extraction
    • Agricultural and garden irrigation
    • Household water supply
    • Livestock and pasture water supply
    • Water tower and long-distance water delivery
