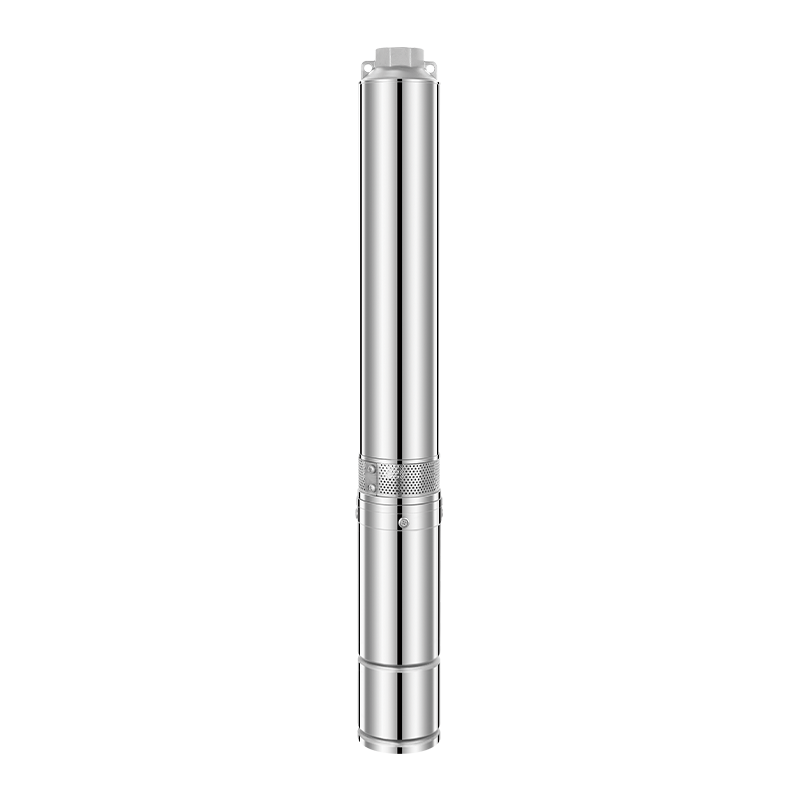

4TY2/4/6/8/10 4-Inch Solar Well Pump with MPPT Controller 750W-15000W

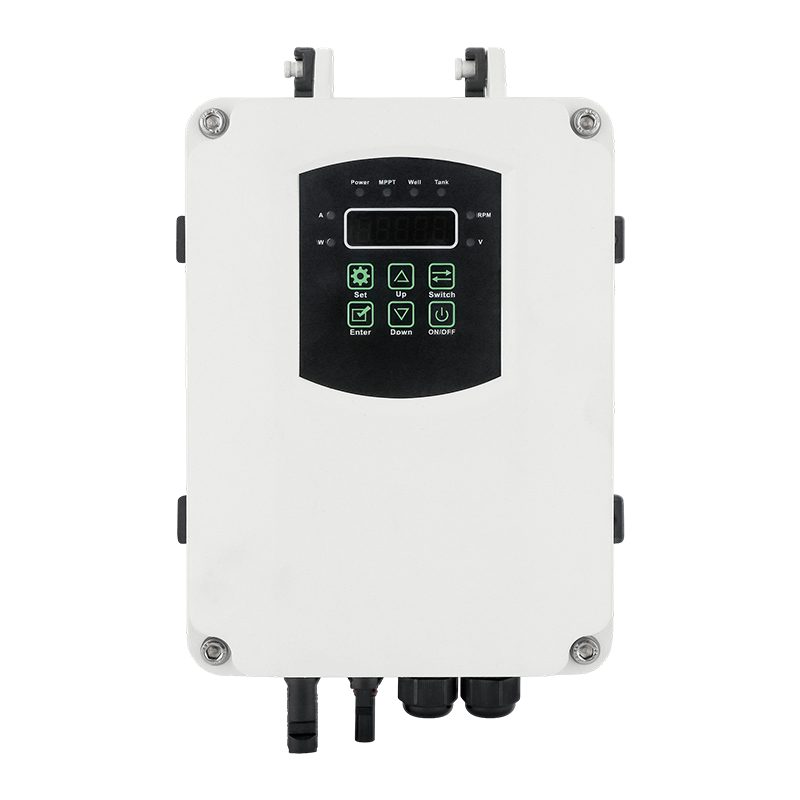

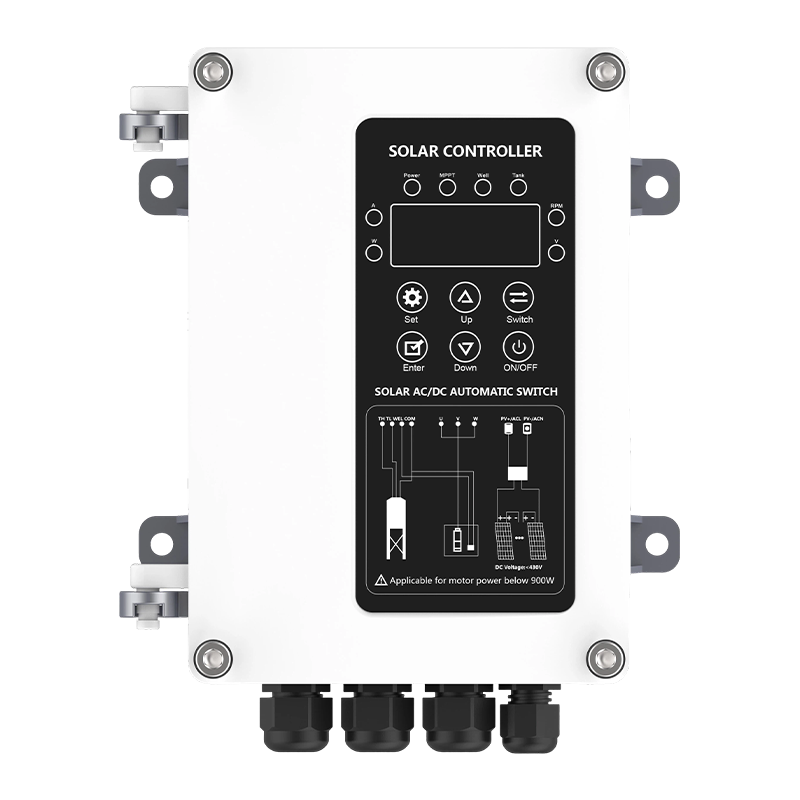

4-Inch Solar Well Pump with MPPT Controller 750W-15000W is a submersible pump designed for 4-inch deep well water extraction and water supply. Models 4TY2/4/6/8/10 use solar energy as the main power source, a brushless DC motor, and an external pure sine wave AC/DC MPPT controller. It is suitable for agricultural irrigation, household water supply, livestock water supply, and other off-grid water systems.

Purchasing Information
MOQ: 100 pcs
Lead Time: 35 days
Payment Terms: TT / DP / LC
Shipping: Maritime shipping, air freight, or road transportation
B2B Supply: Suitable for distributors, importers, irrigation suppliers, and water system contractors

For procurement, buyers should confirm the required power range, well dimensions, installation depth, water conditions, and solar system configuration before placing an order.

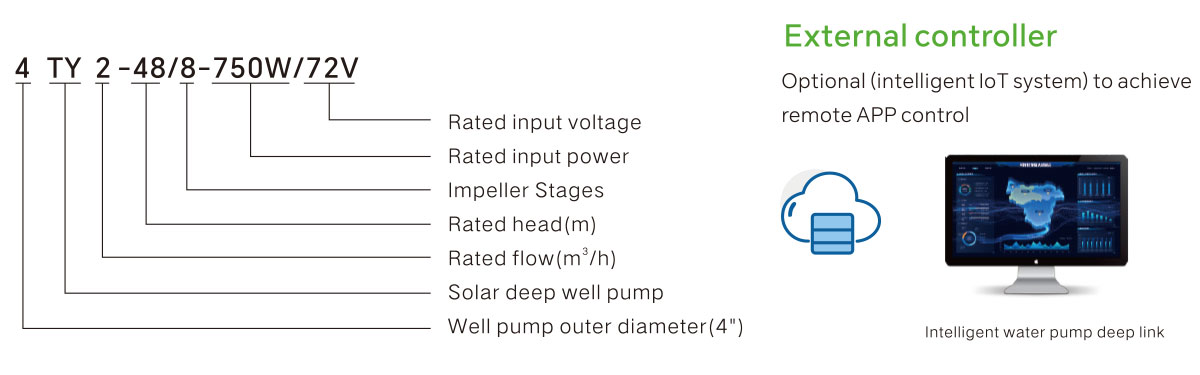

uwyuxrji1788252116

4TY2

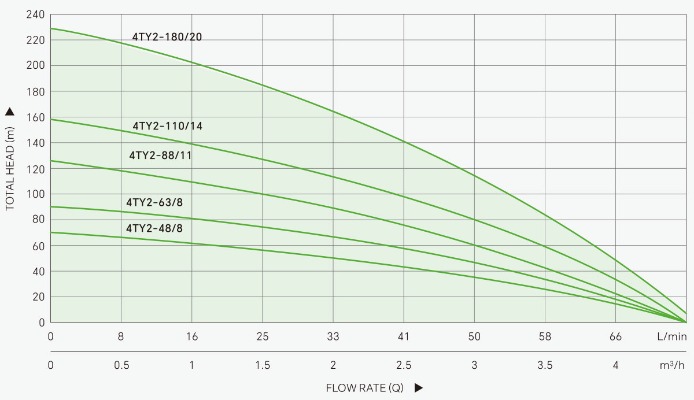

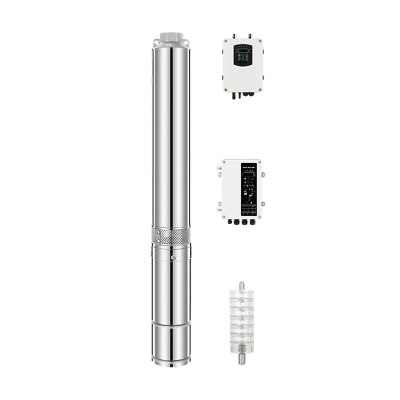

x17 mlrplqov1788252103

Technical Specifications

Model Voltage (V) Best Input Voltage DC (V) Power (W) Max.Flow (m3/h) Max.Head (m) Outlet (In) Cable (m) Solar Panel Open Voltage (V) Solar Panel Power (W)
4TY2-48/8-750W/72V-AC/DC 72 72-124 750 4.5 68 1.25" 2 <450 ≥900
4TY2-63/8-900W/96V-AC/DC 96 96-124 900 5 89 1.25" 2 <450 ≥1080
4TY2-88/11-1200W/110V-AC/DC 110 110-164 1200 5 123 1.25" 2 <450 ≥1440
4TY2-110/14-1500W/150V 150 150-205 1500 5 158 1.25" 2 <450 ≥1800
4TY2-110/14-1500W/150V-AC/DC 150 150-205 1500 5 158 1.25" 2 <450 ≥1800
4TY2-180/20-2200W/200V 200 200-330 2200 5 230 1.25" 2 <450 ≥2640
4TY2-180/20-2200W/200V-AC/DC 200 200-330 2200 5 230 1.25" 2 <450 ≥2640



4TY4

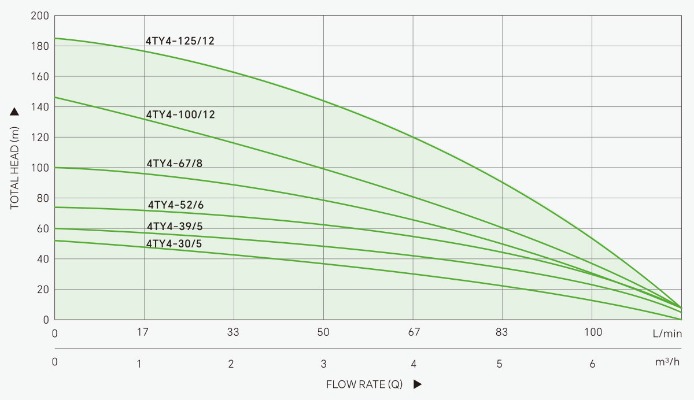

51706 ushupnso1788252303

Technical Specifications

Model Voltage (V) Best Input Voltage DC (V) Power (W) Max.Flow (m3/h) Max.Head (m) Outlet (In) Cable (m) Solar Panel Open Voltage (V) Solar Panel Power (W)
4TY4-30/5-750W/72V-AC/DC 72 72-124 750 7.5 50 1.25/1.5" 2 <450 ≥900
4TY4-39/5-900W/96V-AC/DC 96 96-124 900 8 60 1.25/1.5" 2 <450 ≥1080
4TY4-52/6-1200W/110V-AC/DC 110 110-164 1200 8 74 1.25/1.5" 2 <450 ≥1440
4TY4-67/8-1500W/150V 150 150-205 1500 8 98 1.25/1.5" 2 <450 ≥1800
4TY4-67/8-1500W/150V-AC/DC 150 150-205 1500 8 98 1.25/1.5" 2 <450 ≥1800
4TY4-100/12-2200W/200V 200 200-330 2200 8 146 1.25/1.5" 2 <450 ≥2640
4TY4-100/12-2200W/200V-AC/DC 200 200-330 2200 8 146 1.25/1.5" 2 <450 ≥2640
4TY4-125/12-2800W/240V 240 240-450 2800 8 183 1.25/1.5" 2 <450 ≥3360
4TY4-125/12-2800W/240V-AC/DC 240 240-450 2800 8 183 1.25/1.5" 2 <450 ≥3360

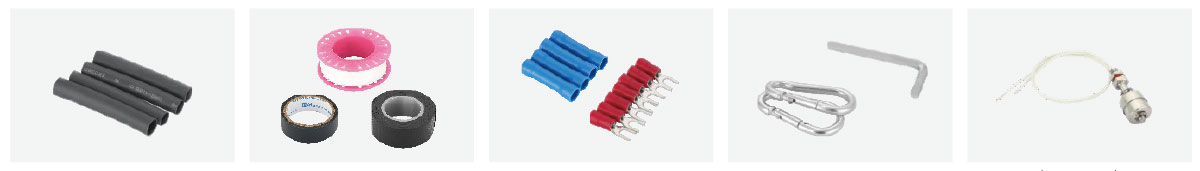

Free Spareparts

vuaanxog1788252314



4TY6

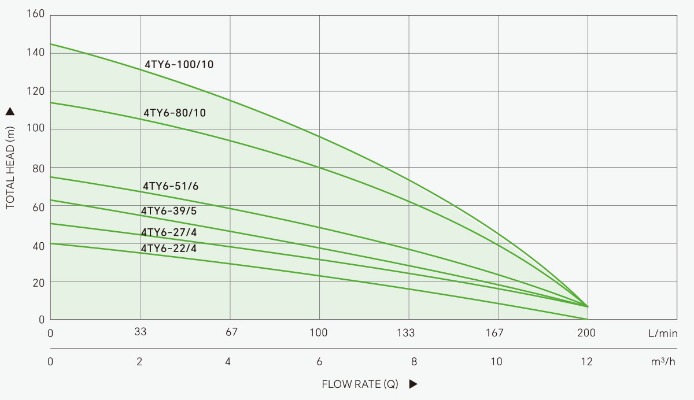

51706 jbtjumgl1788252419

Technical Specifications

Model Voltage (V) Best Input Voltage DC (V) Power (W) Max.Flow (m3/h) Max.Head (m) Outlet (In) Cable (m) Solar Panel Open Voltage (V) Solar Panel Power (W)
4TY6-22/4-750W/72V-AC/DC 72 72-124 750 11.5 40 1.5/2" 2 <450 ≥900
4TY6-27/4-900W/96V-AC/DC 96 96-124 900 12 48 1.5/2" 2 <450 ≥1080
4TY6-39/5-1200W/110V-AC/DC 110 110-164 1200 12 61 1.5/2" 2 <450 ≥1440
4TY6-51/6-1500W/150V 150 150-205 1500 12 74 1.5/2" 2 <450 ≥1800
4TY6-51/6-1500W/150V-AC/DC 150 150-205 1500 12 74 1.5/2" 2 <450 ≥1800
4TY6-80/10-2200W/200V 200 200-330 2200 12 113 1.5/2" 2 <450 ≥2640
4TY6-80/10-2200W/200V-AC/DC 200 200-330 2200 12 113 1.5/2" 2 <450 ≥2640
4TY6-100/10-2800W/240V 240 240-450 2800 12 142 1.5/2" 2 <450 ≥3360
4TY6-100/10-2800W/240V-AC/DC 240 240-450 2800 12 142 1.5/2" 2 <450 ≥3360


Free Spareparts

xlsugrti1788252427



4TY8

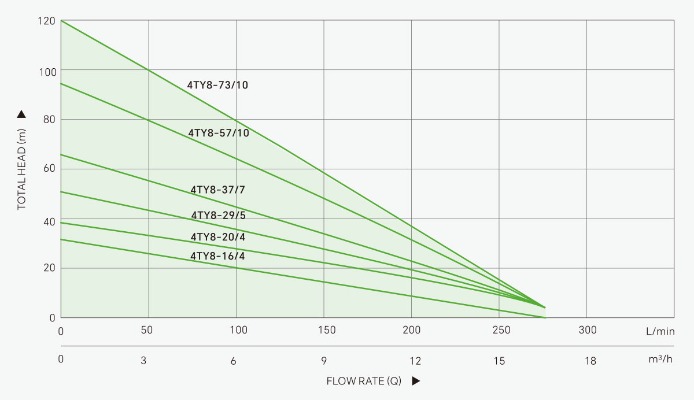

51706 oxwmwuxi1788252705

Technical Specifications

Model Voltage  (V) Best Input Voltage DC (V) Power  (W) Max.Flow (m3/h) Max.Head (m) Outlet  (In) Cable  (m) Solar Panel Open Voltage (V) Solar Panel Power (W)
4TY8-16/4-750W/72V-AC/DC 72 72-124 750 14 28 2" 2 <450 ≥900
4TY8-20/4-900W/96V-AC/DC 96 96-124 900 16.5 38 2" 2 <450 ≥1080
4TY8-29/5-1200W/110V-AC/DC 110 110-164 1200 16.5 51 2" 2 <450 ≥1440
4TY8-37/7-1500W/150V 150 150-205 1500 16.5 66 2" 2 <450 ≥1800
4TY8-37/7-1500W/150V-AC/DC 150 150-205 1500 16.5 66 2" 2 <450 ≥1800
4TY8-57/10-2200W/200V 200 240-450 2200 16.5 95 2" 2 <450 ≥2460
4TY8-57/10-2200W/200V-AC/DC 200 240-450 2200 16.5 95 2" 2 <450 ≥2460
4TY8-73/10-2800W/240V 240 240-450 2800 16.5 118 2" 2 <450 ≥3360
4TY8-73/10-2800W/240V-AC/DC 240 240-450 2800 16.5 118 2" 2 <450 ≥3360

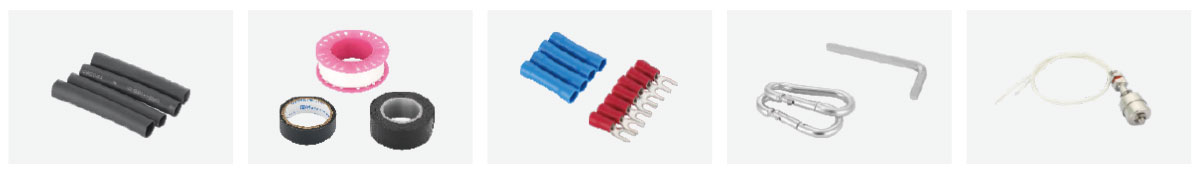

Free Spareparts

vvryxhos1788252788



4TY10

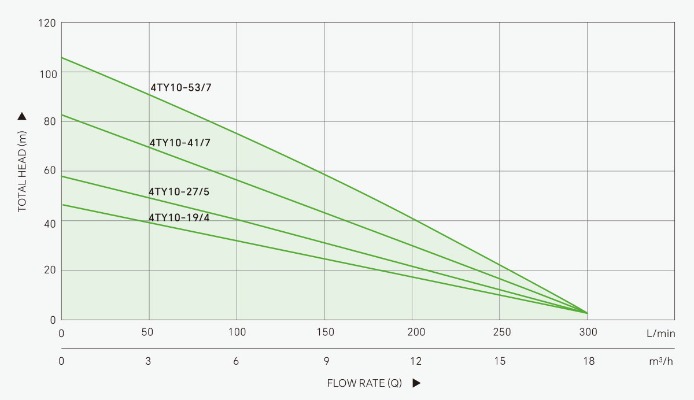

51706 tczqzfos1788252805


Technical Specifications

Model Voltage  (V) Best Input Voltage DC (V) Power  (W) Max.Flow (m3/h) Max.Head (m) Outlet  (In) Cable  (m) Solar Panel Open Voltage (V) Solar Panel Power (W)
4TY10-19/4-1200W/110V-AC/DC 110 110-164 1200 18 46 2" 2 <450 ≥1440
4TY10-27/5-1500W/150V 150 150-205 1500 18 58 2" 2 <450 ≥1800
4TY10-27/5-1500W/150V-AC/DC 150 150-205 1500 18 58 2" 2 <450 ≥1800
4TY10-41/7-2200W/200V 200 200-330 2200 18 81 2" 2 <450 ≥2640
4TY10-41/7-2200W/200V-AC/DC 200 200-330 2200 18 81 2" 2 <450 ≥2640
4TY10-53/7-2800W/240V 240 240-450 2800 18 104 2" 2 <450 ≥3360
4TY10-53/7-2800W/240V-AC/DC 240 240-450 2800 18 104 2" 2 <450 ≥3360

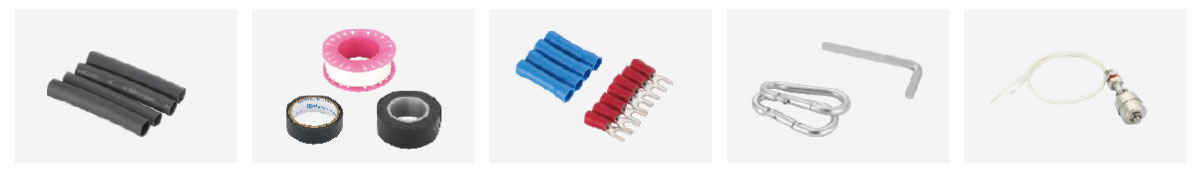

Free Spareparts

ventwwbs1788252814

Inquiry Now


  • The 4-Inch Solar Well Pump with MPPT Controller is widely used for:

    • Deep well water extraction
    • Agricultural and garden irrigation
    • Household water supply
    • Livestock and pasture water supply
    • Water tower and long-distance water delivery
