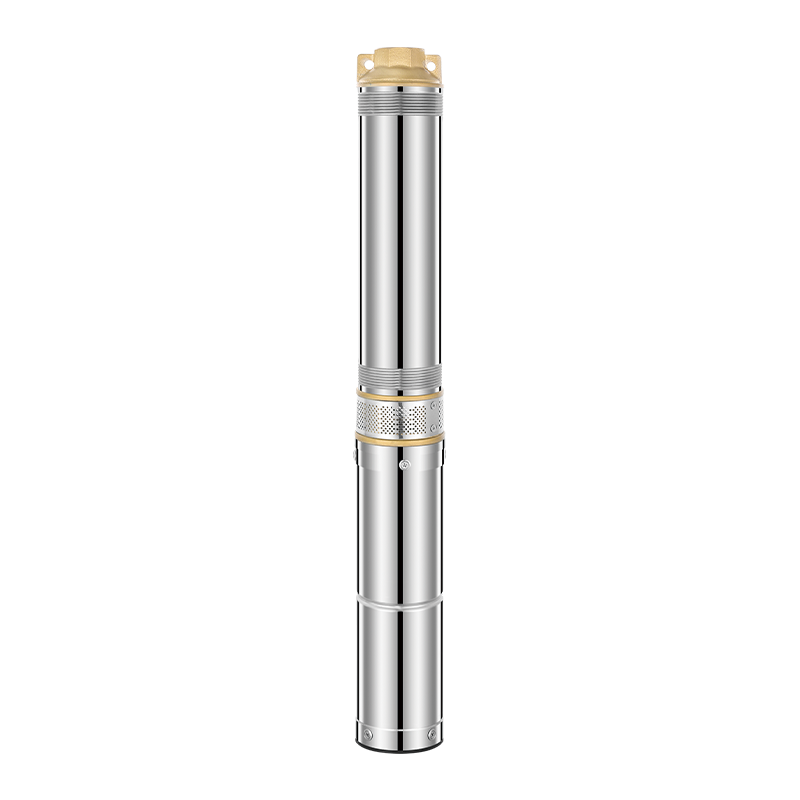

4TYN 4-Inch Solar Well Pump 600W-2800W

4-Inch Solar Well Pump 600W-2800W is a submersible pump designed for 4-inch well water extraction and water supply applications. It uses solar power as an energy source and is available with a built-in DC controller or an external AC/DC controller. The pump is suitable for agricultural irrigation, household water supply, livestock water supply, and other water systems where reliable well pumping is required.

Purchasing Information
MOQ: 100 pcs
Lead Time: 35 days
Payment Terms: TT / DP / LC
Shipping: Maritime shipping, air freight, or road transportation
B2B Supply: Suitable for distributors, importers, irrigation suppliers, and water system contractors

For procurement, buyers should confirm the required power range, well dimensions, installation depth, water conditions, and solar system configuration before placing an order.

4TYN

Technical Specifications

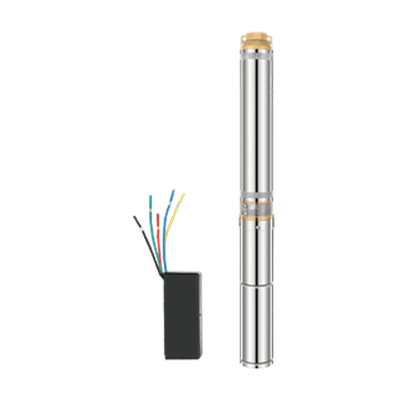

x11 4TYN2
Model Voltage  (V) Best Input Voltage DC (V) Power (W) Max.Flow (m3/h) Max.Head (m) Outlet (In) Cable (m) Solar Panel Open Voltage (V) Solar Panel Power (W)
4TYN2-36/6-600W/60V 60 60-84 600 4 68 1.25" 2 <108 ≥720
4TYN2-48/8-750W/72V 72 72-124 750 4 84 1.25" 2 <155 ≥900
4TYN2-63/11-900W/96V 96 96-124 900 4 100 1.25" 2 <155 ≥1080
4TYN2-88/14-1200W/110V 110 110-164 1200 4 137 1.25" 2 <210 ≥1440
4TYN2-110/18-1500W/110V 110 110-164 1500 4 176 1.25" 2 <210 ≥1800



38172 4TYN4
Model Voltage (V) Best Input Voltage DC (V) Power (W) Max.Flow (m3/h) Max.Head (m) Outlet (In) Cable (m) Solar Panel Open Voltage (V) Solar Panel Power (W)
4TYN4-22/4-600W/60V 60 60-84 600 6.5 42 1.25/1.5" 2 <108 ≥720
4TYN4-30/6-750W/72V 72 72-124 750 6.5 56 1.25/1.5" 2 <155 ≥900
4TYN4-39/9-900W/96V 96 96-124 900 6.5 72 1.25/1 5" 2 <155 ≥1080
4TYN4-52/12-1200W/110V 110 110-164 1200 6.5 95 1.25/1.5" 2 <210 ≥1440
4TYN4-67/14-1500W/110V 110 110-164 1500 6.5 116 1.25/1.5" 2 <210 ≥1800

38172 4TYN6
Model Voltage (V) Best Input Voltage DC (V) Power (W) Max.Flow (m3/h) Max.Head (m) Outlet (In) Cable (m) Solar Panel Open Voltage (V) Solar Panel Power (W)
4TYN6-22/5-750W/72V 12 72-124 750 9 45 1.5/2" 2 <155 ≥900
4TYN6-27/6-900W/96V 96 96-124 900 9 55 1.5/2" 2 <155 ≥1080
4TYN6-39/8-1200W/110V 110 110-164 1200 9 67 1.5/2" 2 <210 ≥1440
4TYN6-51/10-1500W/110V 110 110-164 1500 9.5 92 1.5/2" 2 <210 ≥1800



38172 4TYN8
Model Voltage (V) Best Input Voltage DC (V) Power (W) Max.Flow (m3/h) Max.Head (m) Outlet (In) Cable (m) Solar Panel Open Voltage (V) Solar Panel Power (W)
4TYN8-16/4-750W/72V 72 72-124 750 13 36 2" 2 <155 ≥900
4TYN8-20/5-900W/96V 96 96-124 900 13 43 2" 2 <155 ≥1080
4TYN8-29/7-1200W/110V 110 110-164 1200 13 59 2" 2 <210 ≥1440
4TYN8-37/9-1500W/110V 110 110-164 1500 13 76 2" 2 <210 ≥1800



38172 4TYN10
Model Voltage (V) Best Input Voltage DC (V) Power (W) Max.Flow (m3/h) Max.Head (m) Outlet (In) Cable (m) Solar Panel Open Voltage (V) Solar Panel Power (W)
4TYN10-19/5-1200W/110V 110 110-164 1200 15 44 2" 2 <210 ≥1440
4TYN10-27/7-1500W/110V 110 110-164 1500 15 60 2" 2 <210 ≥1800



4TYN-AC/DC

Technical Specifications

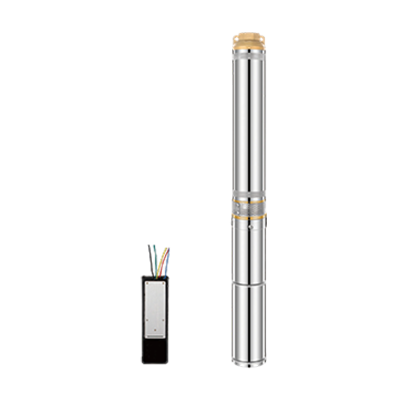

x12 4TYN2-AC/DC
Model Voltage (V) Best Input Voltage DC (V) Power (W) Max.Flow (m3/h) Max.Head (m) Outlet (In) Cable (m) Solar Panel Open Voltage (V) Solar Panel Power (W)
4TYN2-48/8-750W/72V-AC/DC 72 72-124 750 4 84 1.25" 2 <450 ≥900
4TYN2-63/11 -900W/96V-AC/DC 96 96-124 900 4 100 1.25" 2 <450 ≥1080
4TYN2-88/14-1200W/110V-AC/DC 110 110-164 1200 4 137 1.25" 2 <450 ≥1440
4TYN2-110/18-1500W/150V-AC/DC 150 150-205 1500 4 176 1.25" 2 <450 ≥1800
4TYN2-180/25-2200W/200V-AC/DC 200 200-330 2200 4 232 1.25" 2 <450 ≥2640



35746 4TYN4-AC/DC
Model Voltage (V) Best Input Voltage DC (V) Power (W) Max.Flow (m3/h) Max.Head (m) Outlet (In) Cable (m) Solar Panel Open Voltage (V) Solar Panel Power (W)
4TYN4-30/6-750W/72V-AC/DC 72 72-124 750 6.5 56 1.25/1.5" 2 <450 ≥900
4TYN4-39/9-900W/96V-AC/DC 96 96-124 900 6.5 72 1.25/1 5" 2 <450 >1080
4TYN4-52/12-1200W/110V-AC/DC 110 110-164 1200 6.5 95 1.25/1.5" 2 <450 ≥1440
4TYN4-67/14-1500W/150V-AC/DC 150 150-205 1500 6.5 116 1.25/1.5" 2 <450 ≥1800
4TYN4-100/20-2200W/200V-AC/DC 200 200-330 2200 6.5 155 1.25/1.5" 2 <450 ≥2640
4TYN4-125/20-2800W/240V-AC/DC 240 240-450 2800 6.5 178 1.25/1.5" 2 <450 ≥3360



35746 4TYN6-AC/DC
Model Voltage (V) Best Input Voltage DC (V) Power (W) Max.Flow (m3/h) Max.Head (m) Outlet (In) Cable (m) Solar Panel Open Voltage (V) Solar Panel Power (W)
4TYN6-22/5-750W/72V-AC/DC 72 72-124 750 9 45 1.5/2" 2 <450 >900
4TYN6-27/6-900W/96V-AC/DC 96 96-124 900 9 55 1.5/2" 2 <450 >1080
4TYN6-39/8-1200W/110V-AC/DC 110 110-164 1200 9 67 1.5/2" 2 <450 >1440
4TYN6-51 /10-1500W/150V-AC/DC 150 150-205 1500 9.5 92 1.5/2" 2 <450 >1800
4TYN6-80/15-2200W/200V-AC/DC 200 200-330 2200 9.5 132 1.5/2" 2 <450 >2640
4TYN6-100/15-2800W/240V-AC/DC 240 240-450 2800 9.5 153 1.5/2" 2 <450 ≥3360



35746 4TYN8-AC/DC
Model Voltage  (V) Best Input Voltage DC (V) Power  (W) Max.Flow (m3/h) Max.Head (m) Outlet  (In) Cable  (m) Solar Panel Open Voltage (V) Solar Panel Power (W)
4TYN8-16/4-750W/72V-AC/DC 72 72-124 750 13 36 2" 2 <450 >900
4TYN8-20/5-900W/96V-AC/DC 96 96-124 900 13 43 2" 2 <450 >1080
4TYN8-29/7-1200W/110V-AC/DC 110 110-164 1200 13 59 2" 2 <450 >1440
4TYN8-37/9-1500W/150V-AC/DC 150 150-205 1500 13 76 2" 2 <450 >1800
4TYN8-57/14-2200W/200V-AC/DC 200 200-330 2200 13 103 2" 2 <450 >2640
4TYN8-73/14-2800W/240V-AC/DC 240 240-450 2800 13 123 2" 2 <450 ≥3360



35746 4TYN10-AC/DC
Model Voltage  (V) Best Input Voltage DC (V) Power (W) Max.Flow (m3/h) Max.Head (m) Outlet (In) Cable (m) Solar Panel Open Voltage (V) Solar Panel Power (W)
4TYN10-19/5-1200W/110V-AC/DC 110 110-164 1200 15 44 2" 2 <450 ≥1440
4TYN10-27/7-1500W/150V-AC/DC 150 150-205 1500 15 60 2" 2 <450 ≥1800
4TYN10-41/12-2200W/200V-AC/DC 200 200-330 2200 15 86 2" 2 <450 ≥2640
4TYN10-53/12-2800W/240V-AC/DC 240 240-450 2800 15 123 2" 2 <450 ≥3360
Inquiry Now


  • The 4-Inch Solar Well Pump is widely used for:

    • Deep well water extraction
    • Agricultural and garden irrigation
    • Household water supply
    • Livestock and pasture water supply
    • Water supply and storage systems
