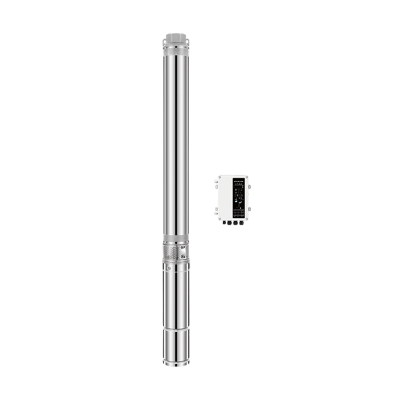

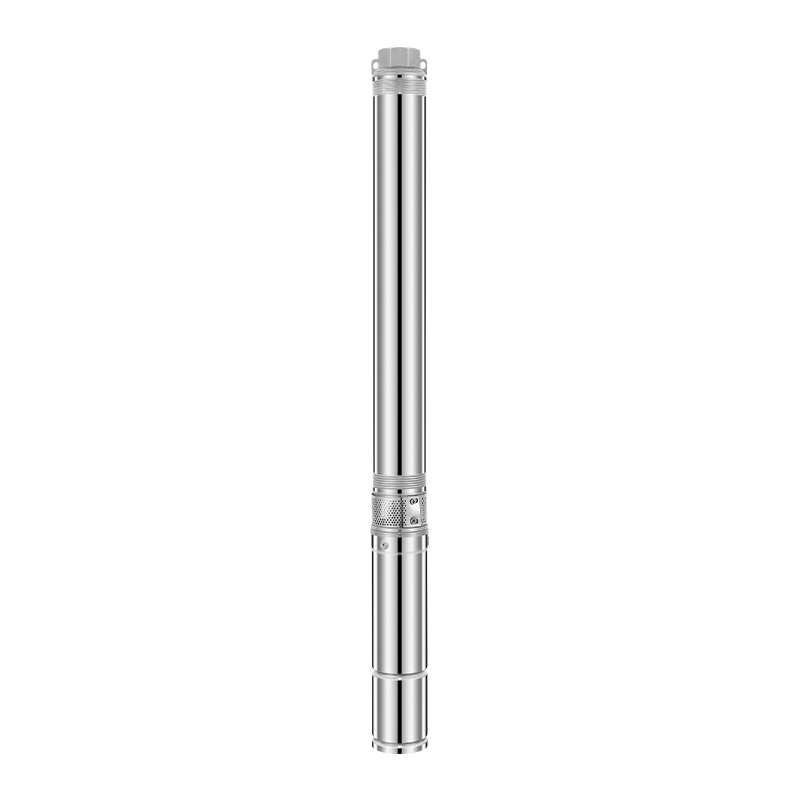

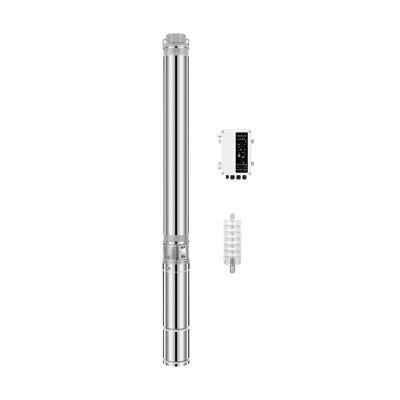

3TY1.8-AC/DC 3-Inch Solar Well Pump with MPPT Controller 750W-1500W

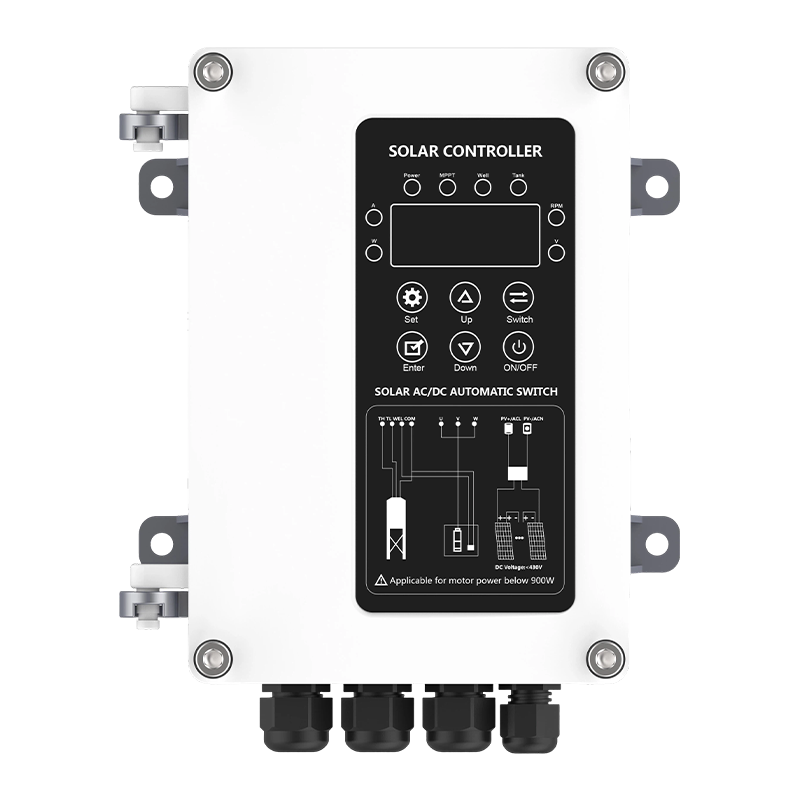

3-Inch Solar Well Pump with MPPT Controller 750W-1500W is a compact submersible pump designed for 3-inch deep well water extraction and water supply. Model 3TY1.8-AC/DC uses solar energy as the main power source, a brushless DC motor, and an external pure sine wave AC/DC MPPT controller. It is suitable for agricultural irrigation, household water supply, pasture water supply, and other off-grid water systems.

Purchasing Information
MOQ: 100 pcs
Lead Time: 35 days
Payment Terms: TT / DP / LC
Shipping: Maritime shipping, air freight, or road transportation
B2B Supply: Suitable for distributors, importers, irrigation suppliers, and water system contractors

For procurement, buyers should confirm the required power range, well dimensions, installation depth, water conditions, and solar system configuration before placing an order.

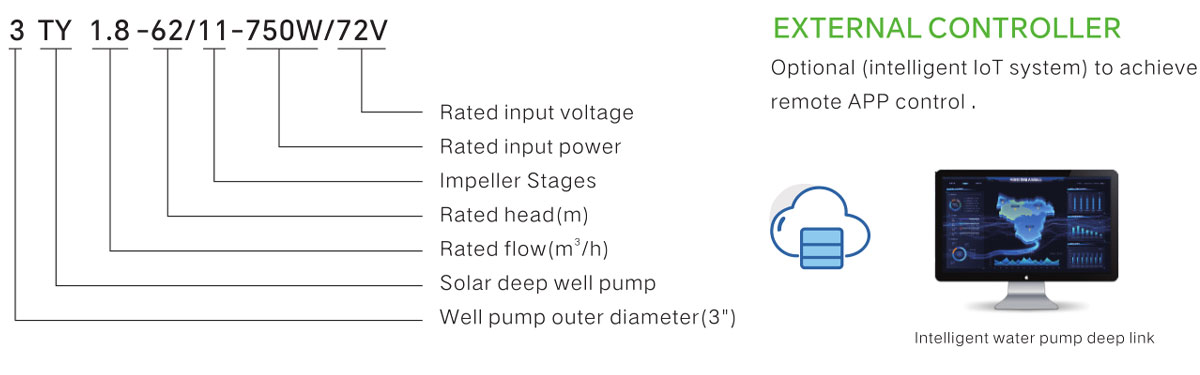

xsmyarxf1788251553

3TY1.8-AC/DC

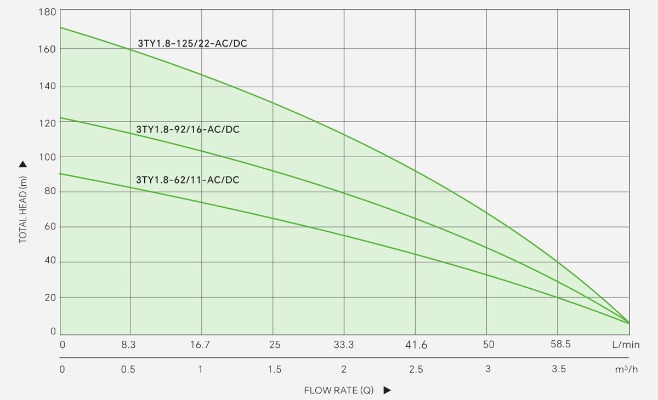

x16 uwbfuqbc1788251515

Technical Specifications

Model Voltage (V) Best Input Voltage DC (V) Power (W) Max.Flow (m3/h) Max.Head (m) Outlet (In) Cable (m) Solar Panel Open Voltage (V) Solar Panel Power (W)
3TY1.8-62/11-750W/72V-AC/DC 72 72-124 750 4 90 1/1.25" 2 <450 ≥900
3TY1.8-92/16-1100W/110V-AC/DC 110 110-164 1100 4 122 1/1.25" 2 <450 ≥1320
3TY1.8-125/22-1500W/110V-AC/DC 110 110-164 1500 4 170 1/1.25" 2 <450 >1800

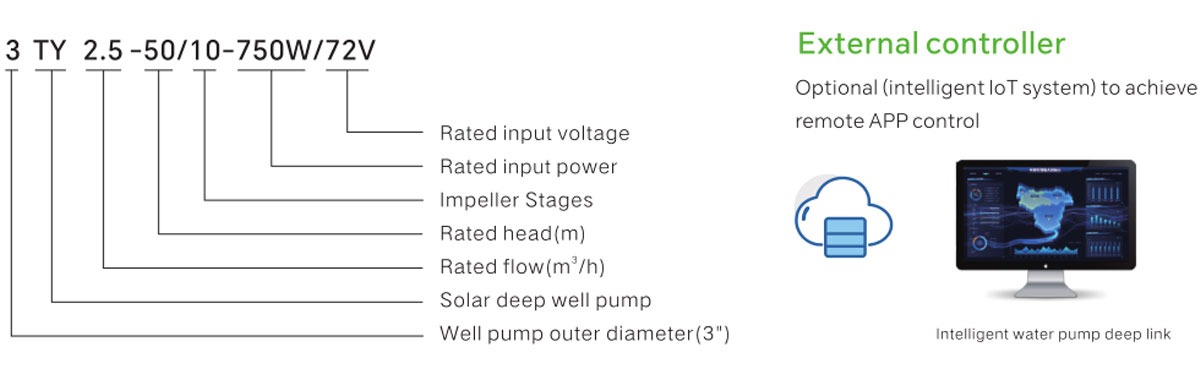

3TY2.5/4-AC/DC

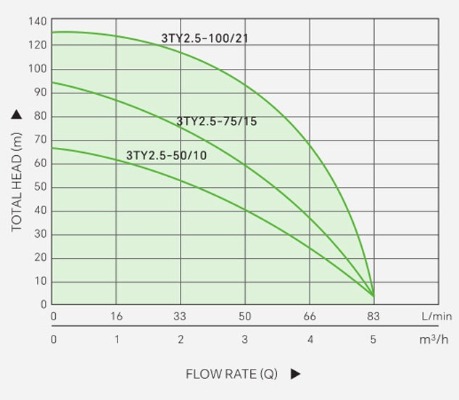

Performance Curves

drsbkkiw1788312286

3TY2.5-AC/DC
x15 drsbkkiw1788312286

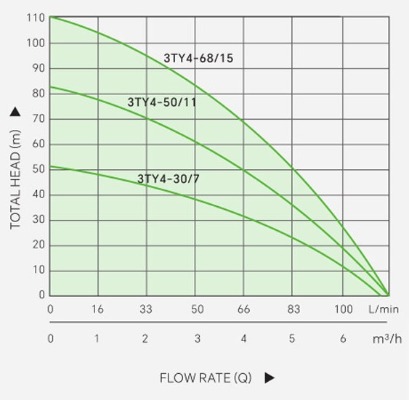

3TY4-AC/DC
31789 drsbkkiw1788312286

Technical Specifications

Model Voltage (V) Best Input Voltage DC (V) Power (W) Max.Flow (m3/h) Max.Head (m) Outlet (In) Cable (m) Solar Panel Open Voltage (V) Solar Panel Power (W)
3TY2.5-50/10-750W/72V-AC/DC 72 72-124 750 5 68 1.25"/1.5" 2 <450 ≥900
3TY2.5-75/15-110OW/110V-AC/DC 110 110-164 1100 5 93 1.25"/1.5" 2 <450 ≥1320
3TY2.5-100/21-1500W/110V-AC/DC 110 110-164 1500 5 130 1.25"/1.5" 2 <450 ≥1800
3TY4-30/7-750W/72V-AC/DC 72 72-124 750 7 52 1.25"/1.5" 2 <450 ≥900
3TY4-50/11-1100W/110V-AC/DC 110 110-164 1100 7 83 1.25"/1.5" 2 <450 ≥1320
3TY4-68/15-1500W/110V-AC/DC 110 110-164 1500 7 111 1.25"/1.5" 2 <450 ≥1800
Inquiry Now


  • The 3-Inch Solar Well Pump with MPPT Controller is widely used for:

    • Deep well water extraction
    • Agricultural and garden irrigation
    • Household water supply
    • Pasture and grassland water supply
    • Water tower and long-distance water delivery
