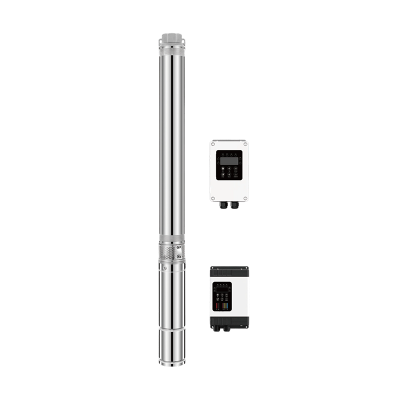

3TYF1.8/2.5/4 3-Inch Solar Well Pump with Square-Wave Controller 300W-1500W

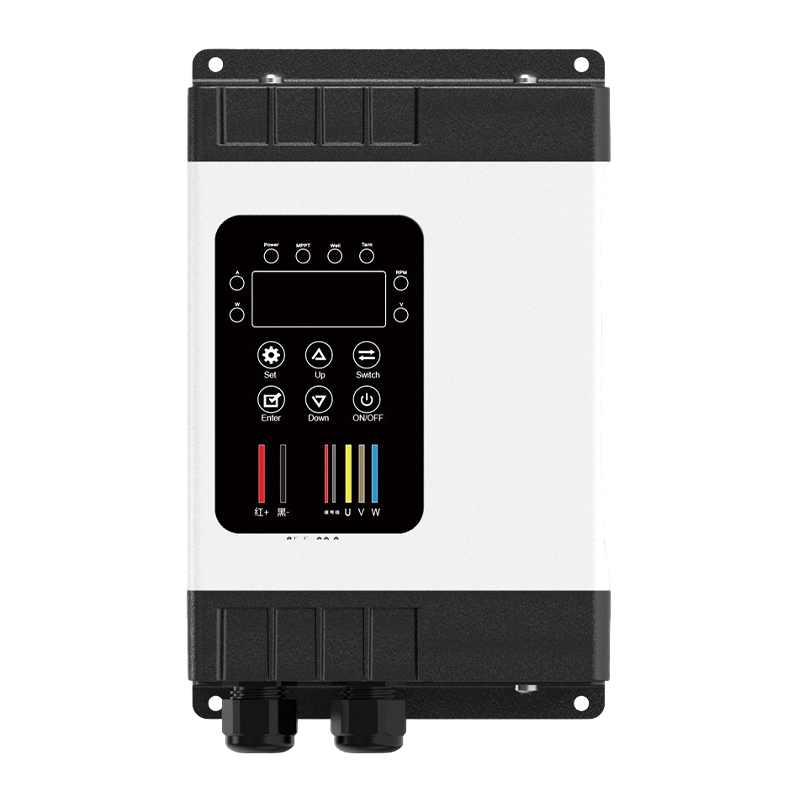

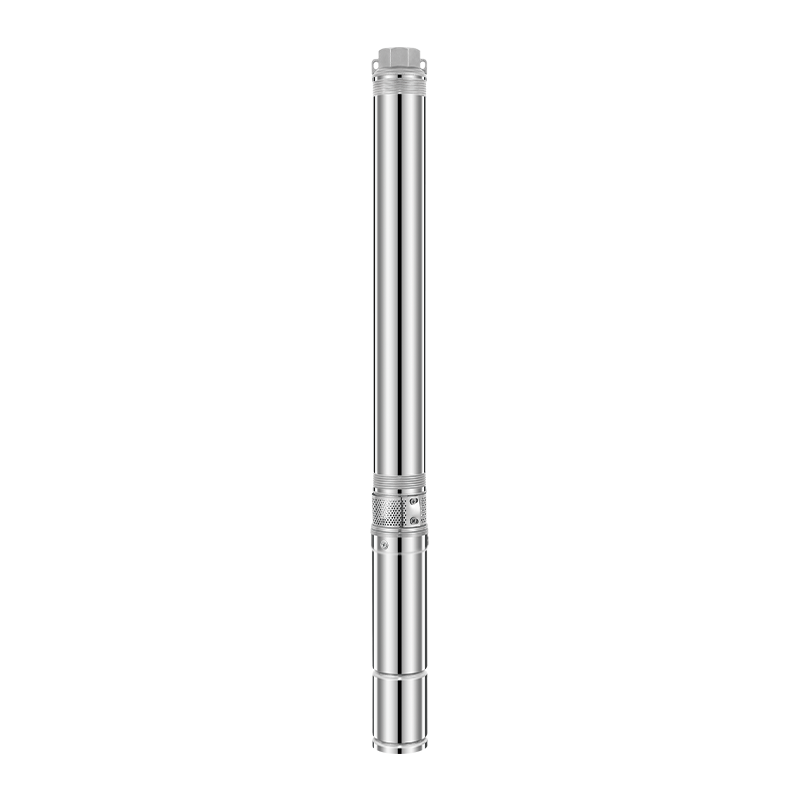

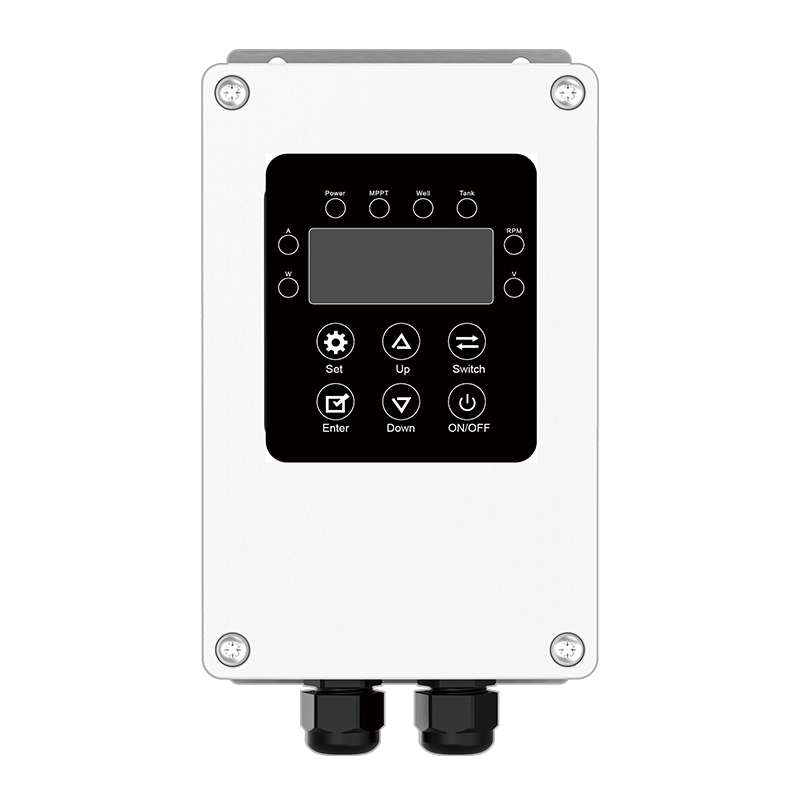

3-Inch Solar Well Pump with Square-Wave Controller 300W-1500W is a compact submersible pump designed for 3-inch deep well water extraction and water supply. It uses solar energy as the main power source and a brushless DC motor for operation. The external square-wave DC controller provides pump control and protection functions for off-grid water supply applications.

Purchasing Information
MOQ: 100 pcs
Lead Time: 35 days
Payment Terms: TT / DP / LC
Shipping: Maritime shipping, air freight, or road transportation
B2B Supply: Suitable for distributors, importers, irrigation suppliers, and water system contractors

For procurement, buyers should confirm the required power range, well dimensions, installation depth, water conditions, and solar system configuration before placing an order.

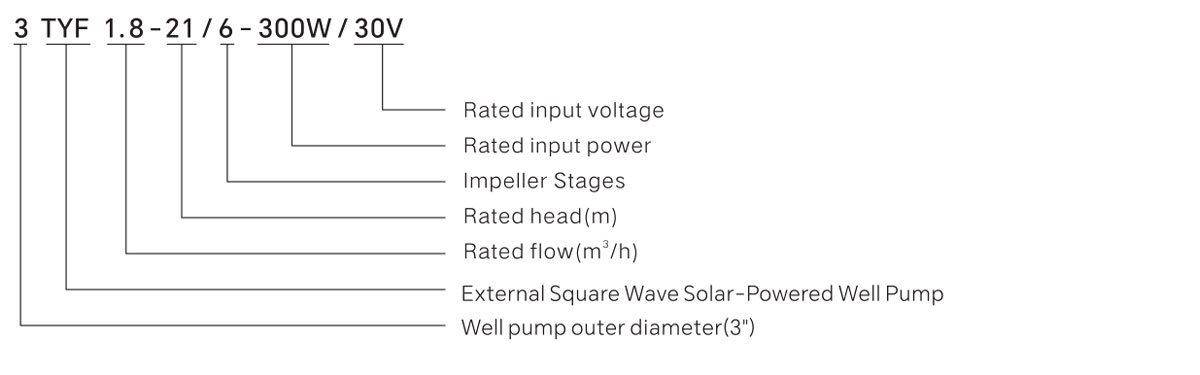

3TYF1.8/2.5/4

ciizlofc1788249736

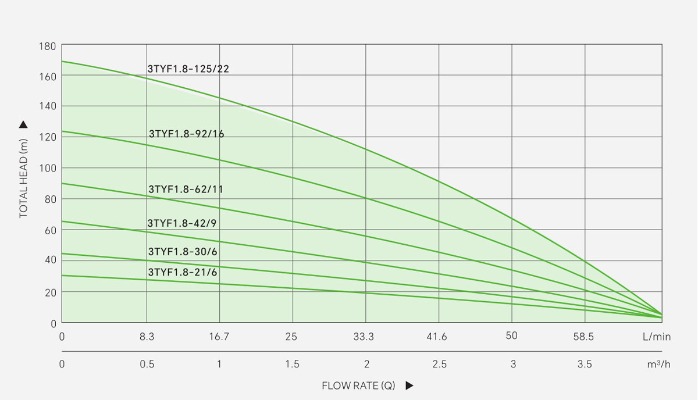

3TYF1.8
x13 qtfwxbvi1788249940

Technical Specifications

Model Voltage (V) Best Input Voltage DC (V) Power (W) Max.Flow (m3/h) Max.Head (m) Outlet (In) Cable (m) Solar Panel Open Voltage (V) Solar Panel Power (W)
3TYF1.8-21/6-300W/30V 30 30-42 300 4 32 1/1.25" 2 <60 ≥360
3TYF1.8-30/6-400W/48V 48 48-84 400 4 44 1/1.25" 2 <105 ≥480
3TYF1.8-42/9-550W/60V 60 60-84 550 4 65 1/1.25" 2 <105 ≥660
3TYF1.8-62/11-750W/72V 72 72-124 750 4 90 1/1.25" 2 <155 ≥900
3TYF1.8-92/16-1100W/110V 110 110-164 1100 4 122 1/1.25" 2 <210 ≥1320
3TYF1.8-125/22-1500W/110V 110 110-164 1500 4 170 1/1.25" 2 <210 ≥1800

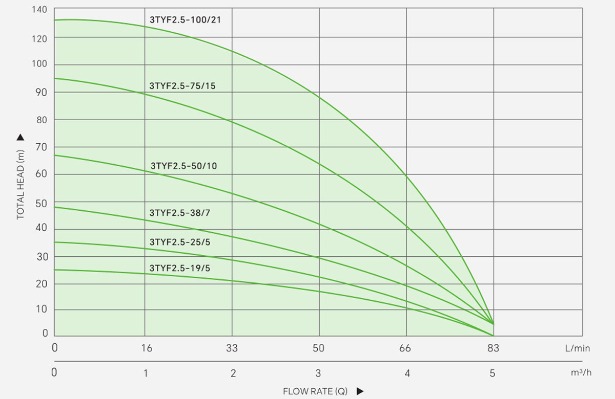

3TYF2.5
34084 vfopdrjz1788250166

Technical Specifications

Model Voltage (V) Best Input Voltage DC (V) Power (W) Max.Flow (m3/h) Max.Head (m) Outlet  (In) Cable (m) Solar Panel Open Voltage (V) Solar Panel Power (W)
3TYF2.5-19/5-300W/30V 30 30-42 300 5 25 1.25/1.5" 2 <60 ≥360
3TYF2.5-25/5-400W/48V 48 48-84 400 5 35 1.25/1.5" 2 <105 ≥480
3TYF2.5-38/7-550W/60V 60 60-84 550 5 48 1.25/1.5" 2 <105 ≥660
3TYF2.5-50/10-750W/72V 72 72-124 750 5 68 1.25/1.5" 2 <155 ≥900
3TYF2.5-75/15-1100W/110V 110 110-164 1100 5 93 1.25/1.5" 2 <210 ≥1320
3TYF2.5-100/21-1500W/110V 110 110-164 1500 5 130 1.25/1.5" 2 <210 ≥1800

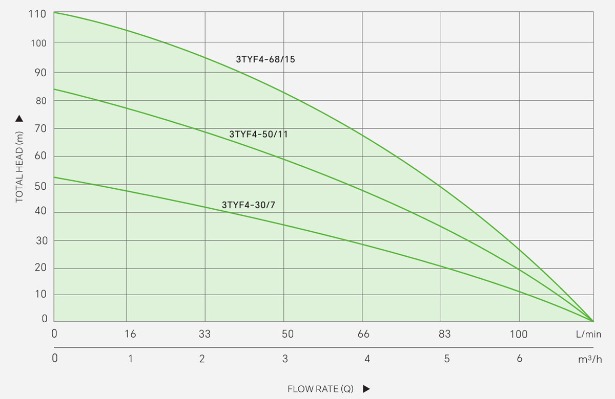

3TYF4
34084 onnpxote1788250340

Technical Specifications

Model Voltage (V) Best Input Voltage DC (V) Power (W) Max.Flow (m3/h) Max.Head (m) Outlet (In) Cable (m) Solar Panel Open Voltage (V) Solar Panel Power (W)
3TYF4-30/7-750W/72V 72 72-124 750 7 52 1.25/1.5" 2 <155 ≥900
3TYF4-50/11-1100W/110V 110 110-164 1100 7 83 1.25/1.5" 2 <210 ≥1320
3TYF4- 68/15-1500W/110V 110 110-164 1500 7 111 1.25/1.5" 2 <210 ≥1800

Inquiry Now


  • The 3-Inch Solar Well Pump with Square-Wave Controller is widely used for:

    • Deep well water extraction
    • Agricultural and garden irrigation
    • Household water supply
    • Pasture and grassland water supply
    • Water tower and long-distance water delivery
