TZK, TZK/H, TPF/TP-S 2-Inch to 4-Inch Solar Surface Pump for Agricultural Irrigation 400W-1500W

2-Inch to 4-Inch Solar Surface Pump for Agricultural Irrigation 400W-1500W is a compact surface pump series designed for agricultural irrigation and general water transfer. The series uses a permanent magnet brushless motor and semi-open impeller, with self-priming capability. Models include TZK, TZK/H, and TP series configurations for clean water supply, farmland irrigation, pasture water supply, and solar irrigation systems.

Purchasing Information
MOQ: 100 pcs
Lead Time: 35 days
Payment Terms: TT / DP / LC
Shipping: Maritime shipping, air freight, or road transportation
B2B Supply: Suitable for distributors, importers, irrigation suppliers, and water system contractors

For procurement, buyers should confirm the required power range, well dimensions, installation depth, water conditions, and solar system configuration before placing an order.

TZK

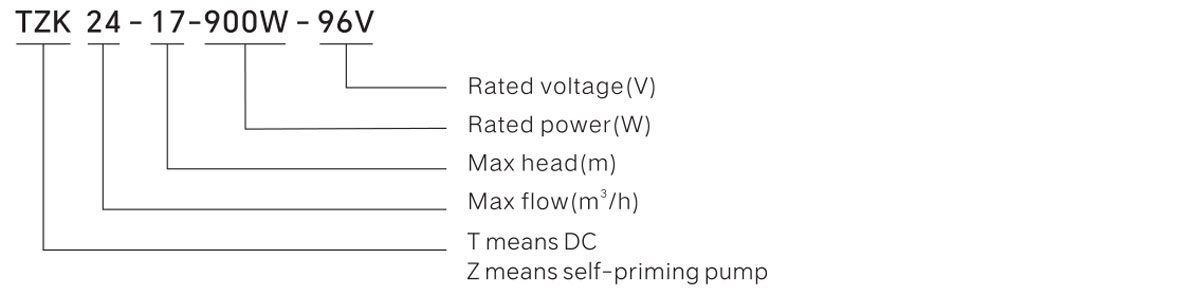

Model Instruction

lvmydokm1788315672

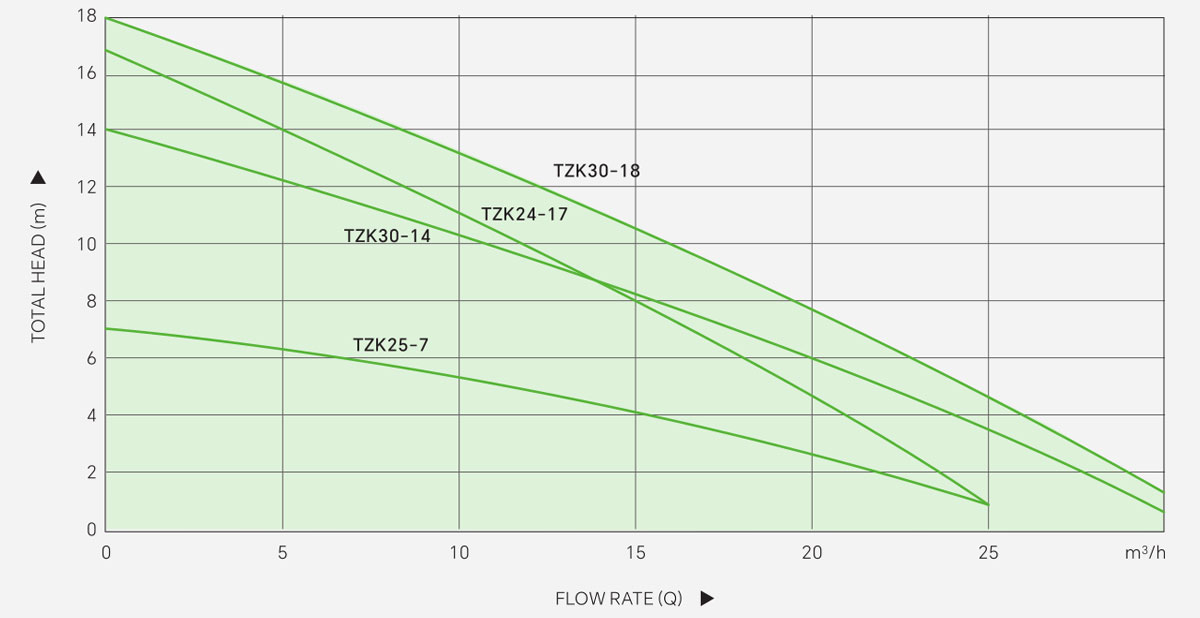

Performance Curves

lzhljwbb1788315677

TZK25 / TZK24 / TZK30

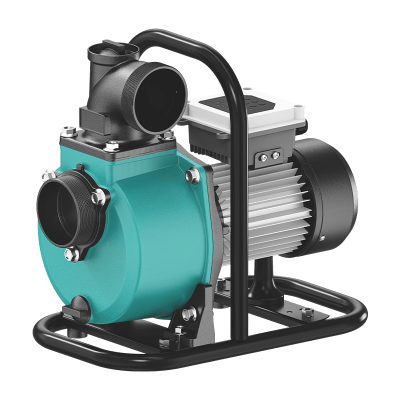

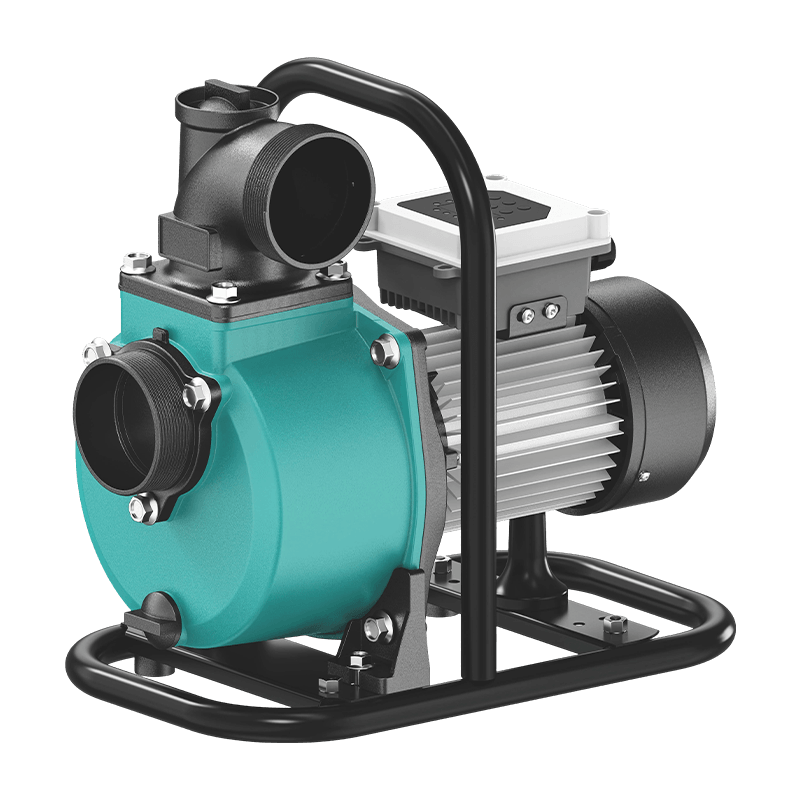

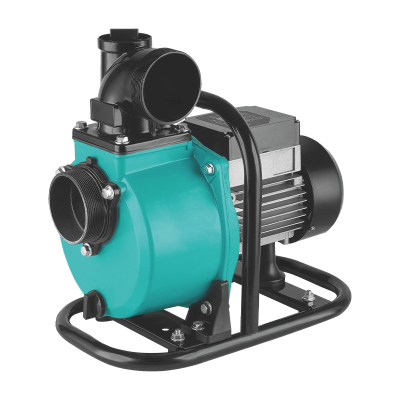

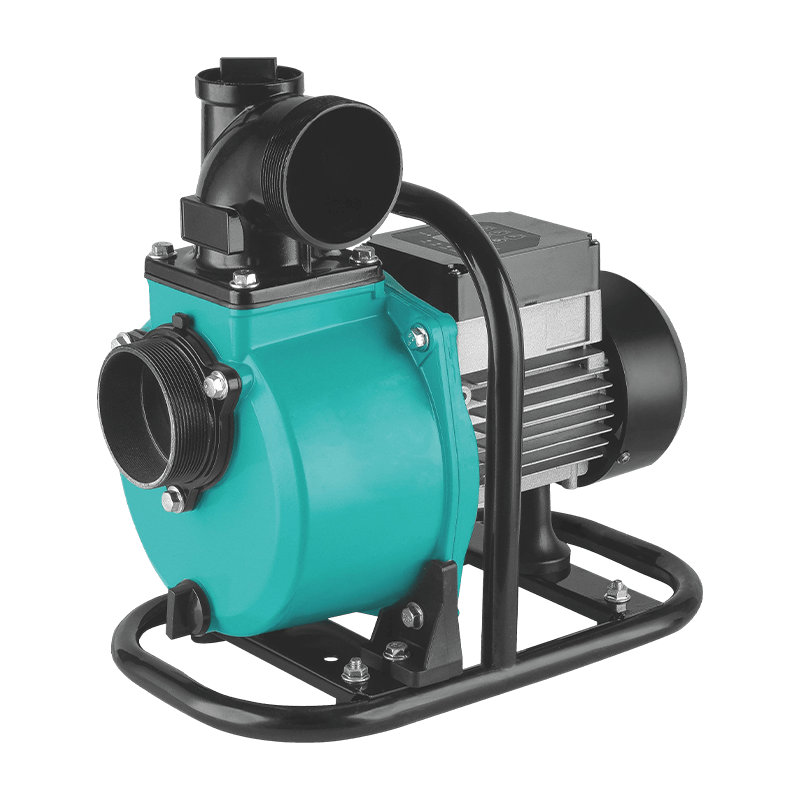

n18-h3jG n19



Technical Specifications

Model Power Inlet/Outlet NPSH H.Max Q.Max 3000-3600r/min
HP kW In m m L/min m3/h 0 5 10 15 20 25 30
TZK25-7-400W/36V 0.55 0.4 3"x3" 6 7 416 H(m) 7 6 5 4 2 0.5 0
TZK24-17-900W/96V 1.2 0.9 2"x2" 8 17 416 17 13 10 8 5 0.5 -
TZK30-14-900W/96V 1.2 0.9 3"x3" 8 14 500 14 11 10 9 6 4 0.5
TZK30-18-1200W/110V 1.6 1.2 3"x3" 8 18 500 18 14 12 10.5 7 5 1.5
TZK30-14-900W/96V-A/D 1.2 0.9 3"x3" 8 14 500 14 11 10 9 6 4 0.5



ywadzcyg1788315797

TZK-H

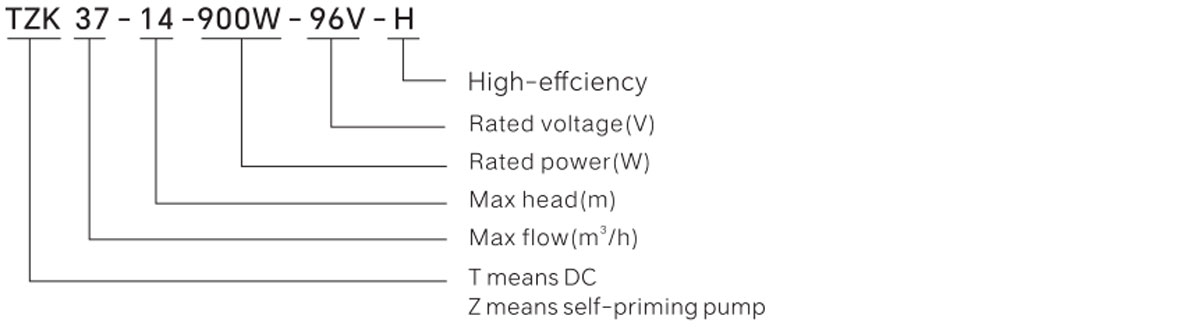

Model Instruction

qjmcdpki1788315830

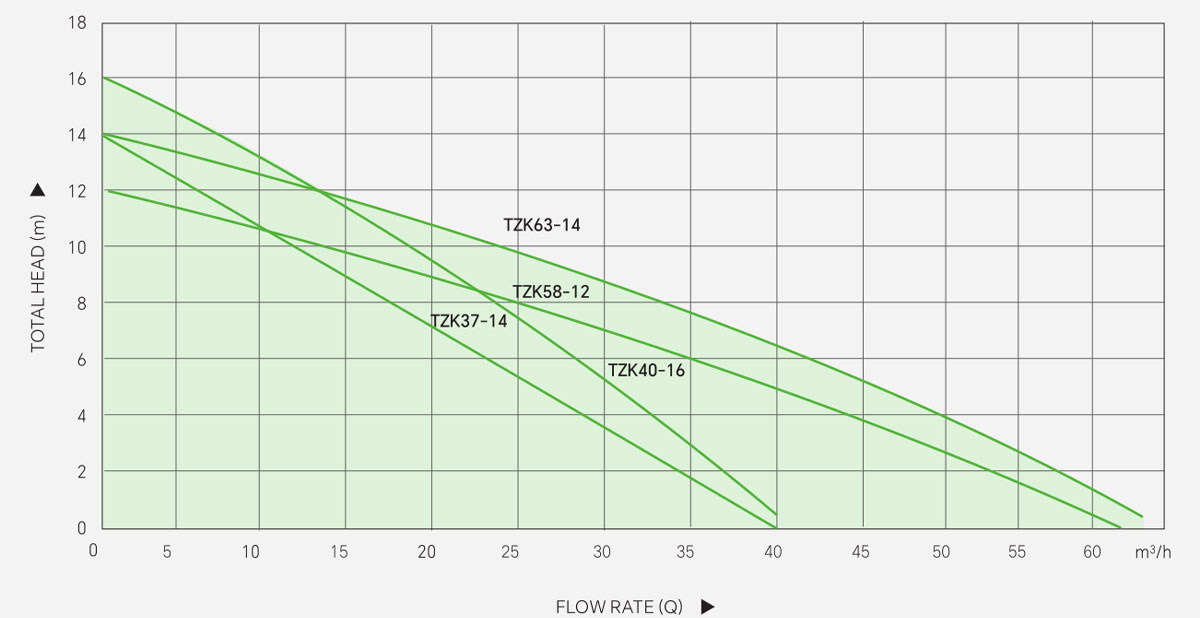

Performance Curves

esodabck1788315837



TZK37 TZK40

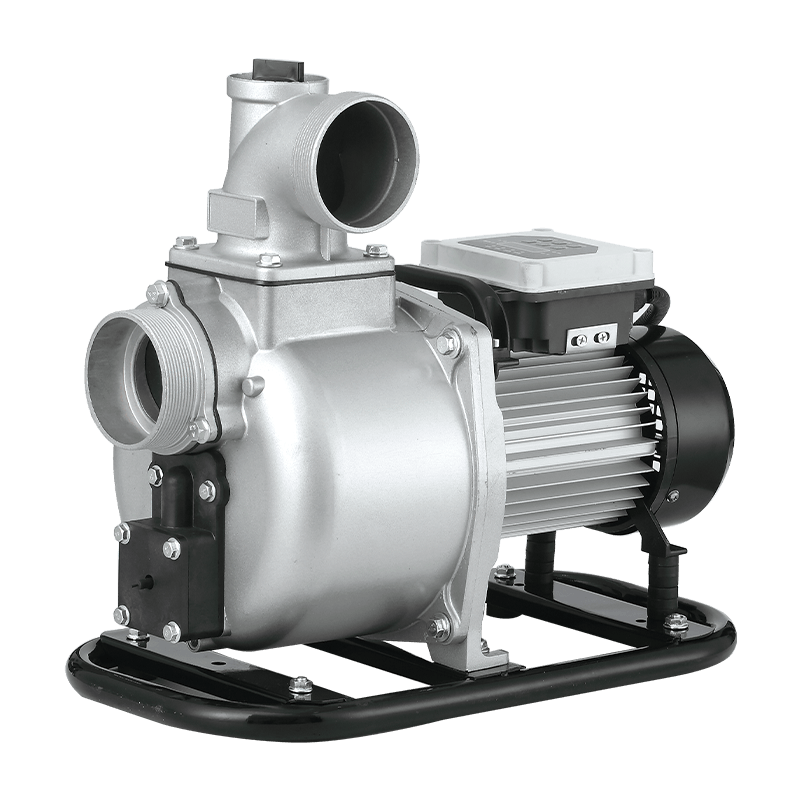

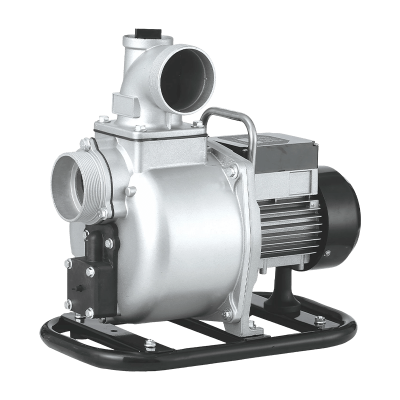

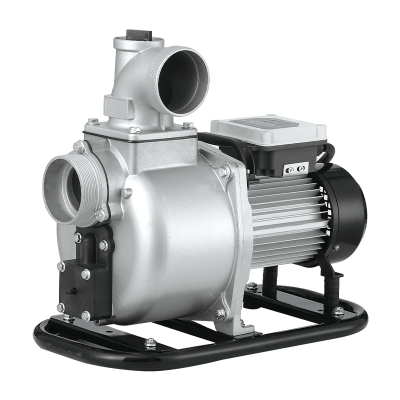

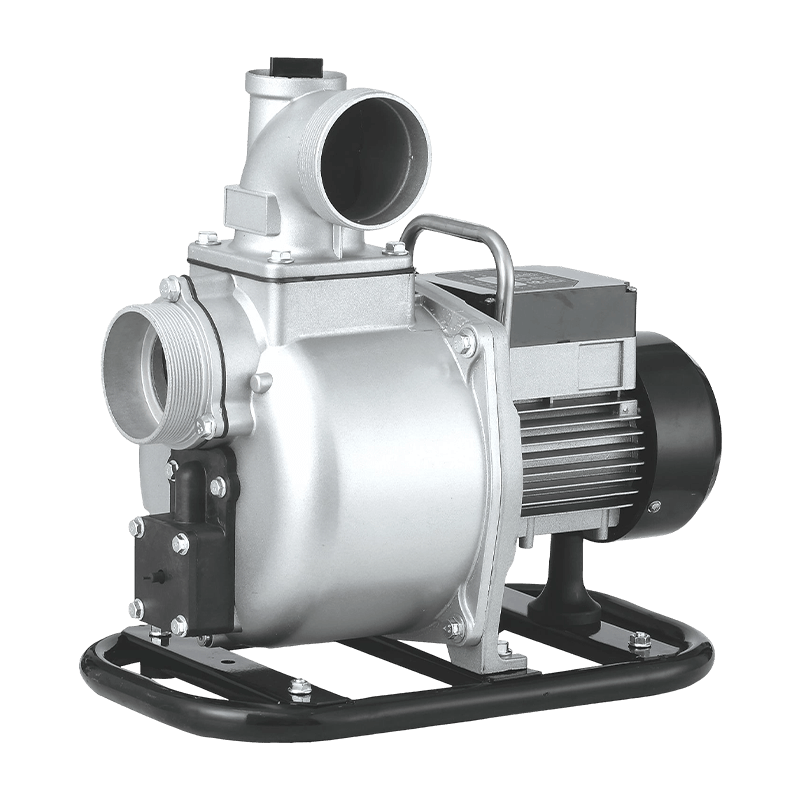

n20 p19

Technical Specifications

Model Power Inlet/Outlet NPSH H.Max Q.Max 3000-3600r/min
HP kW In m m L/min m3/h 0 10 15 20 25 30 37 40
TZK37-14-900W/96V 1.2 0.9 3"x3" 8 14 617 H(m) 14 11 9 7.5 5.5 4 0.5 0
TZK40-16-1200W/110V 1.6 1.2 3"x3" 8 16 667 16 13 11 9 7 5.5 2 0.5

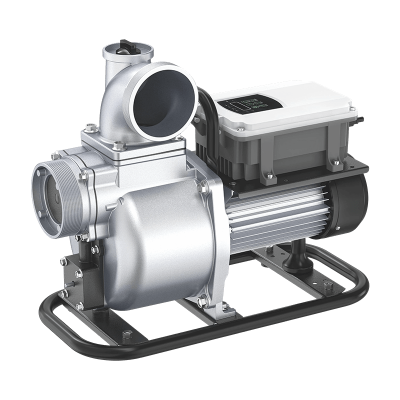

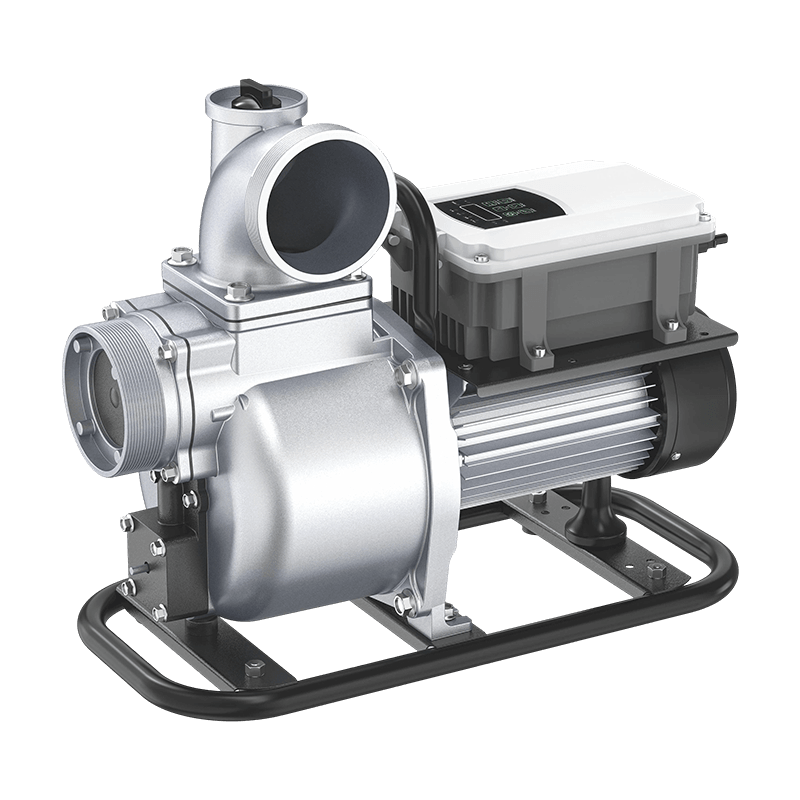

n21 TZK58 / TZK63

Technical Specifications

Model Power Inlet/Outlet NPSH H.Max Q.Max 3000-3600r/min
HP kW In m m L/min m3/h D 15 30 40 50 58 63
TZK58-12-1200W/110V 1.6 1.2 4"x4" 8 12 967 H(m) 12 10 9 7 5 2.5 0.5 0
TZK63-14-1500W/150V 2 1.5 4"x4" 8 14 1050 14 12 11 9 6.5 4 2 0.5
TZK63-14-1500W/150V-A/D 2 1.5 4"x4" 8 14 1050 14 12 11 9 6.5 4 2 0.5



scowdsto1788316009

TPF/TP-S

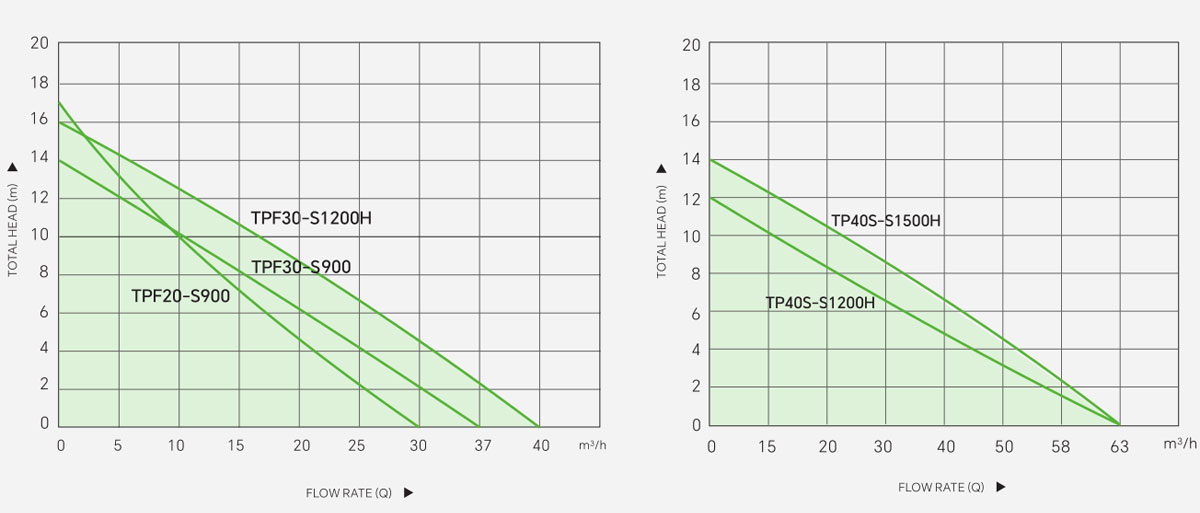

Performance Curves

zbsvouwn1788316079

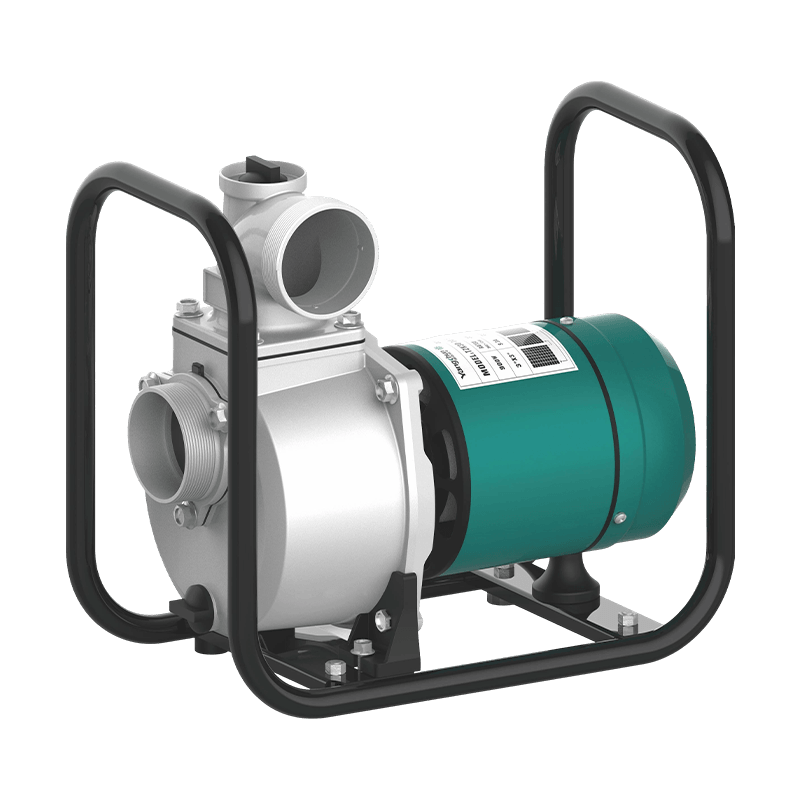

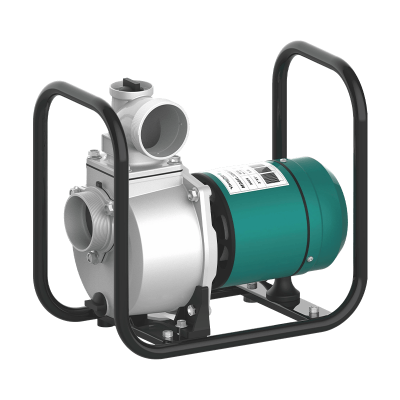

n22 TPF20 / TPF30

Technical Specifications

Model Power Inlet/Outlet NPSH H.Max 3000-3600r/min
HP kW In m m m3/h 0 5 10 15 20 25 30 37 40
TPF20-S900 1.2 0.9 2" x 2" 8 17 H(m) 17 13 10 8 5 0.5 0 0 0
TPF30-S900 1.2 1.2 3" x 3" 8 14 14 11 10 9 6 4 0.5 0 0
TPF30-S1200H 1.6 1.6 3" x 3" 8 16 16 14 12.5 11 9 7 5.5 2 0.5

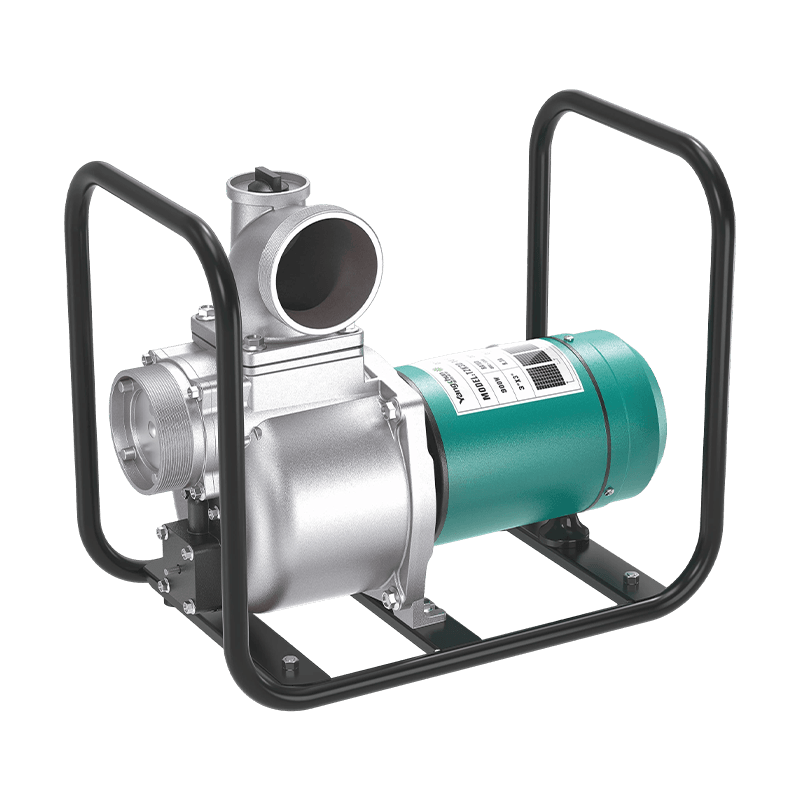

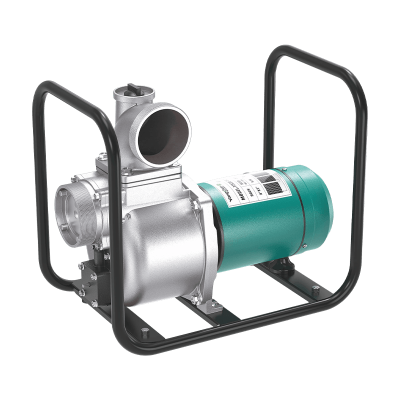

n23 TP40S

Technical Specifications

Model Power Inlet/Outlet NPSH H.Max 3000-3600r/min
HP kW In m m m3/h 0 15 20 30 40 50 58 63
TP40S-S1200H 1.6 1.2 4"×4" 8 12 H(m) 12 10 9 7 5 2.5 0.5 0
TP40S-S1500H 2 1.5 4"×4" 8 14 14 12 11 9 6.5 4 2 0.5



sbyoeeld1788316376

Inquiry Now


  • The 2-Inch to 4-Inch Solar Surface Pump is widely used for:

    • Farmland irrigation
    • Garden and small-scale agricultural irrigation
    • Domestic water supply
    • Pasture and grassland water supply
    • Water tower water delivery
