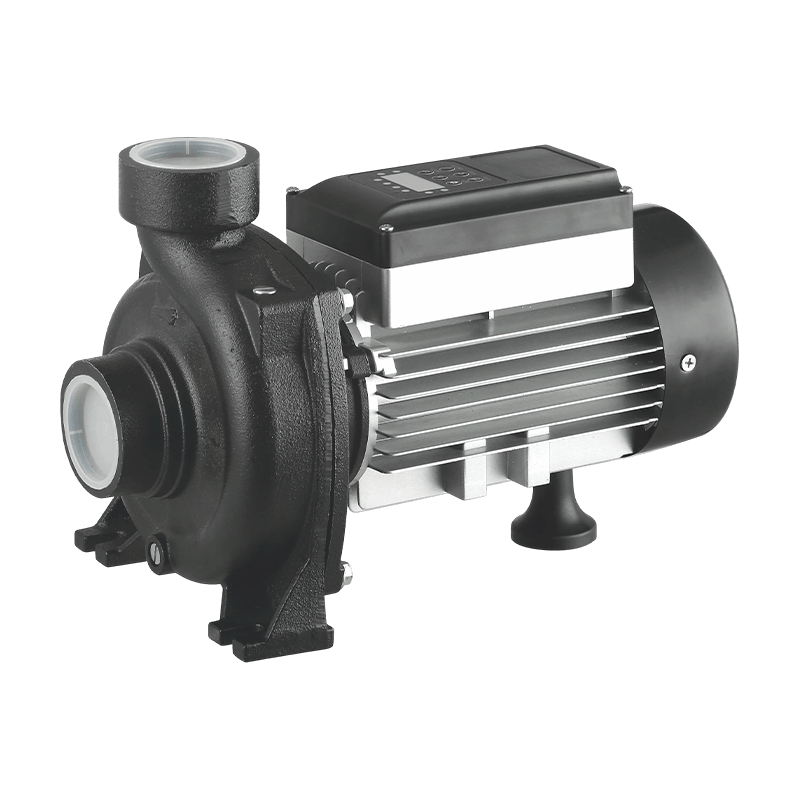

TZDK, TPN, TCPM 1.5-Inch to 2-Inch Household Solar Pump with MPPT Controller 750W-2200W

1.5-Inch to 2-Inch Household Solar Pump with MPPT Controller 750W-2200W is a compact solar water pump series for household water supply and irrigation. Models TZDK, TPN, and TCPM use permanent magnet brushless motors with built-in control functions. Depending on the model, the pump provides self-priming or centrifugal pumping and supports automatic speed adjustment according to available sunlight.

Purchasing Information
MOQ: 100 pcs
Lead Time: 35 days
Payment Terms: TT / DP / LC
Shipping: Maritime shipping, air freight, or road transportation
B2B Supply: Suitable for distributors, importers, irrigation suppliers, and water system contractors

For procurement, buyers should confirm the required power range, well dimensions, installation depth, water conditions, and solar system configuration before placing an order.

TZDK

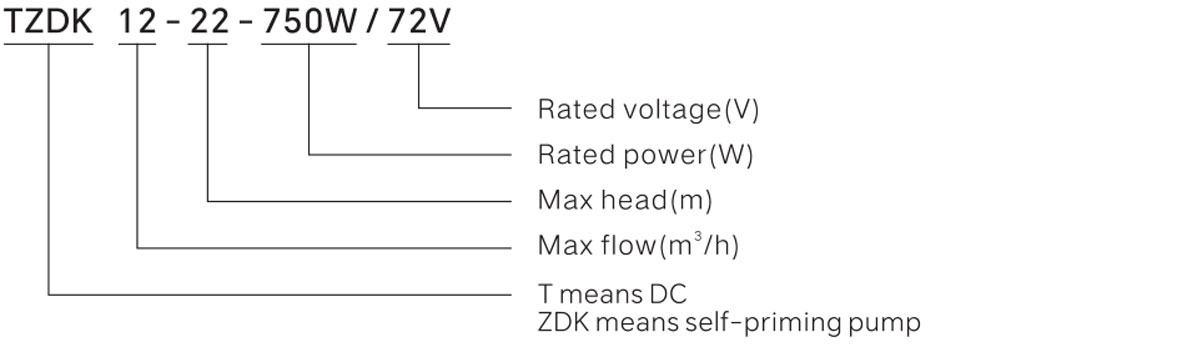

Model Instruction

otqjaimq1788314488

TZDK12-22

TZDK16-25

 TZDK-A/D

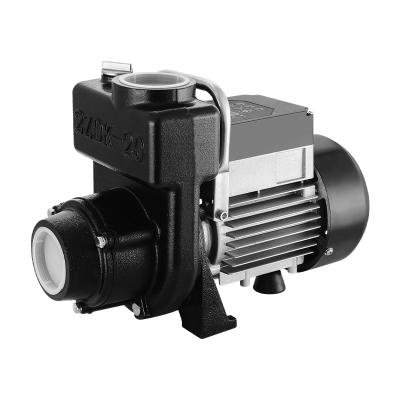

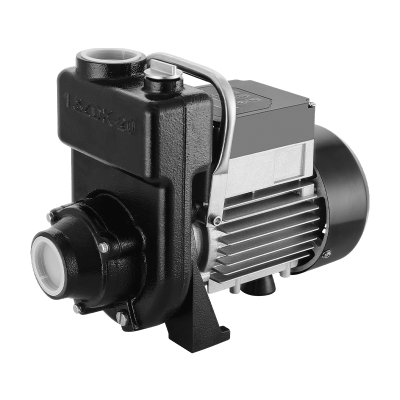

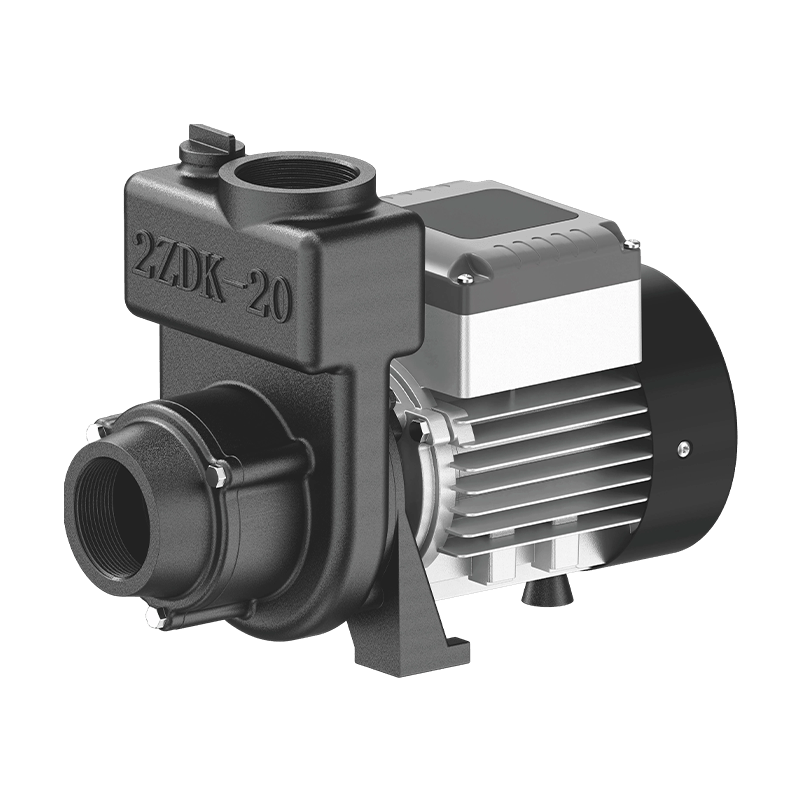

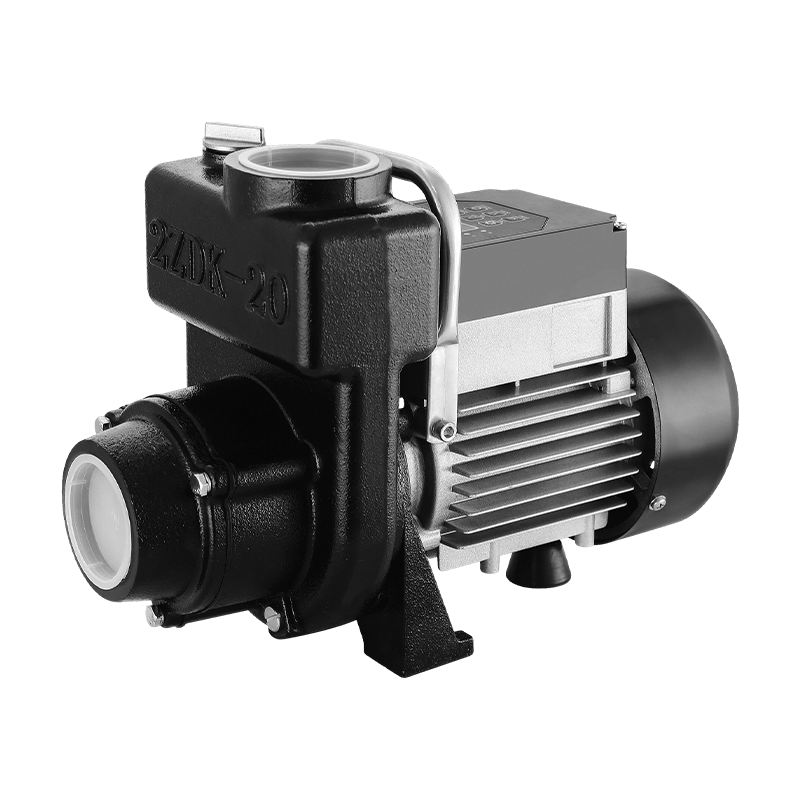

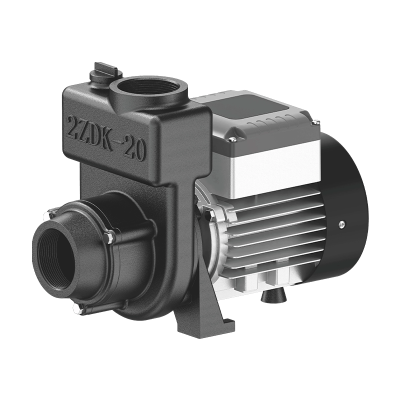

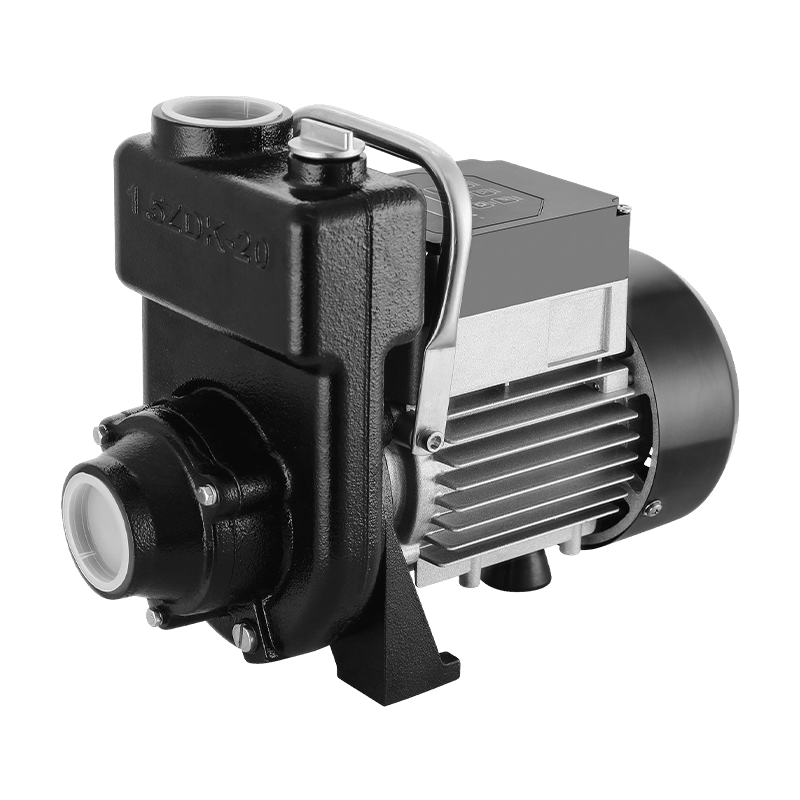

n10 n11 n12

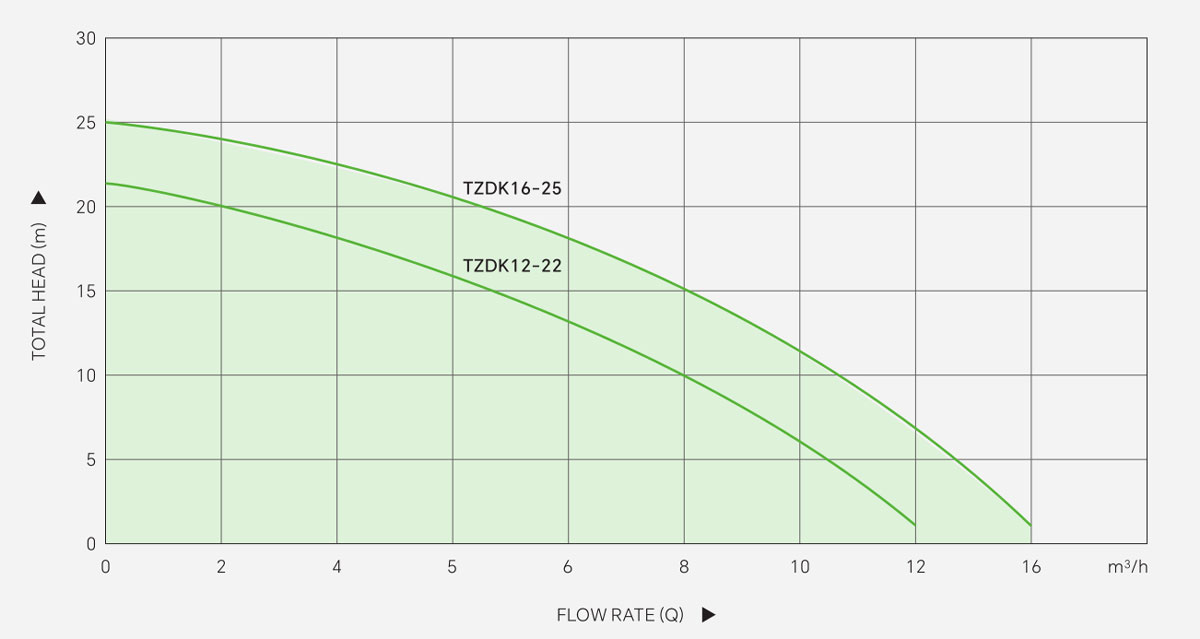

Performance Curves

zbffuvqb1788314493

Technical Specifications

Model Power Inlet/Outlet NPSH H.Max Q.Max 3000-3600r/min
HP kW In m m l/min m3/h 0 2 4 5 6 8 10 12 16
TZDK12-22-750W/72V 1 0.75 1.5"x1.5" 8 22 200 H(m) 22 20 17 16 14 11 6 1 -
TZDK16-25-900W/96V 1.2 0.9 2"x2" 8 25 266 25 22 21 19 17 15 12 9 1
TZDK12-22-750W/72V-A/D 1 0.75 1.5"x1.5" 8 22 200 22 20 20 20 14 11 6 1 -
TZDK16-25-900W/96V-A/D 1.2 0.9 2"x2" 8 25 266 25 22 22 22 17 15 12 9 1

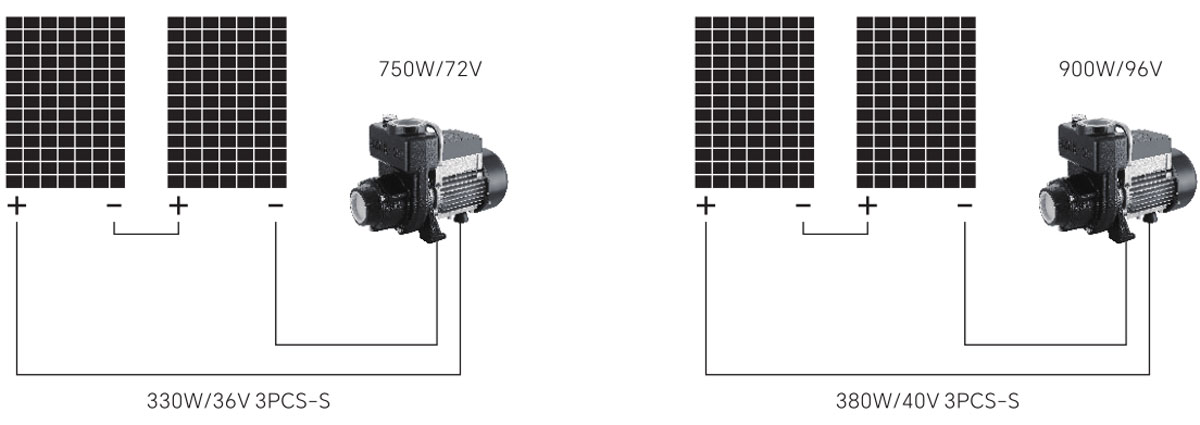

uqtjwboy1788314602

TPN

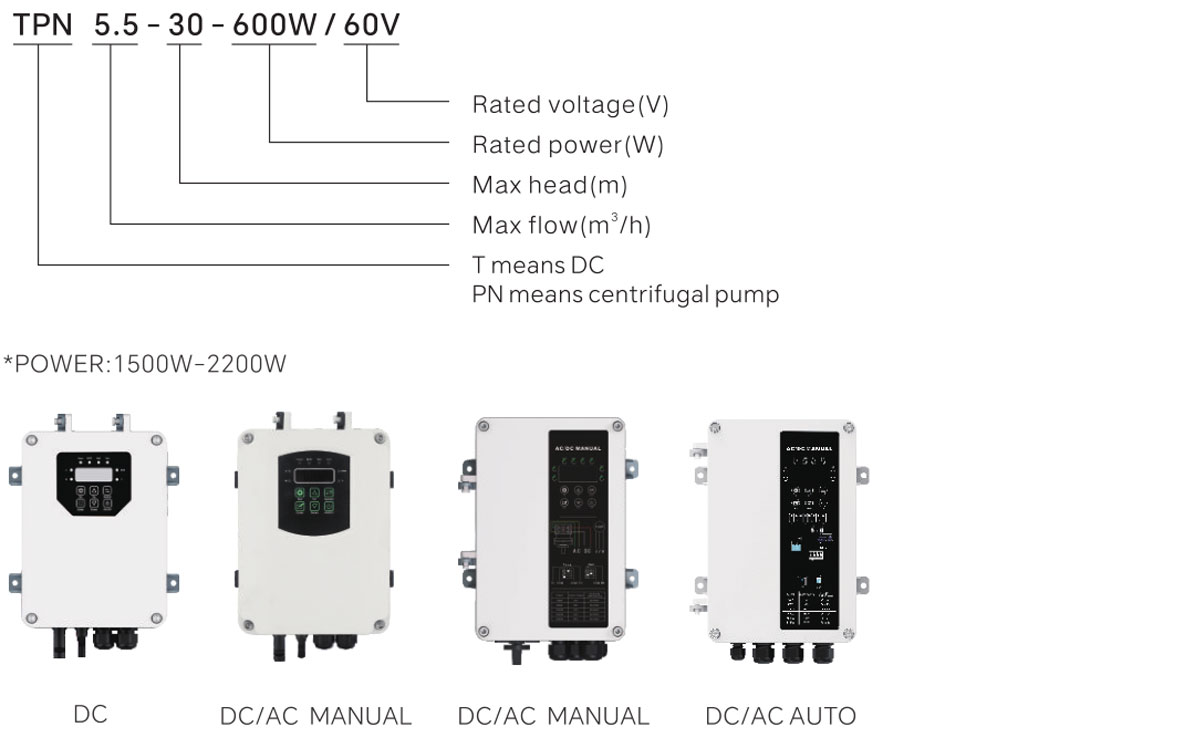

Model Instruction

kwhbkznj1788314763

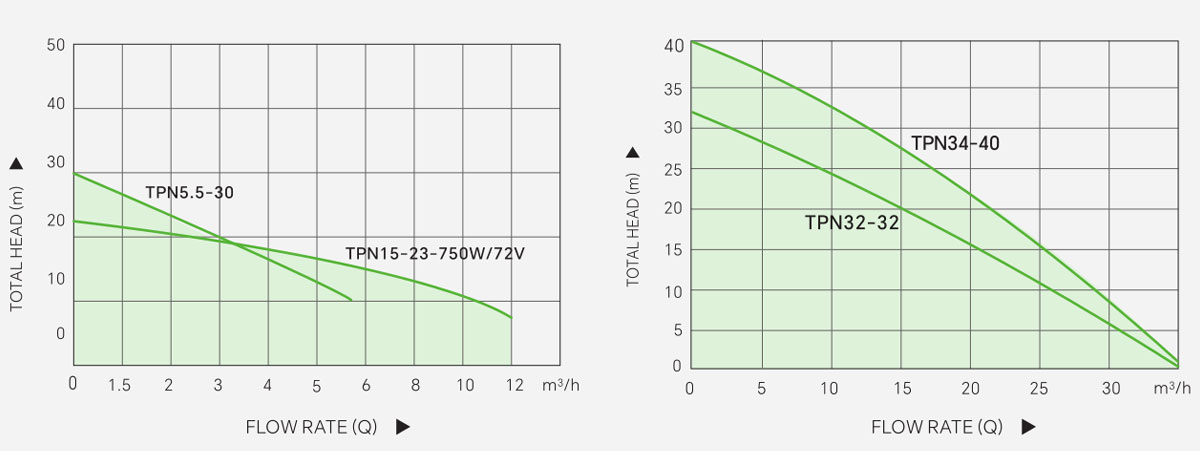

Performance Curves

yamshqmv1788314770

TPN5.5-30 TPN15-23

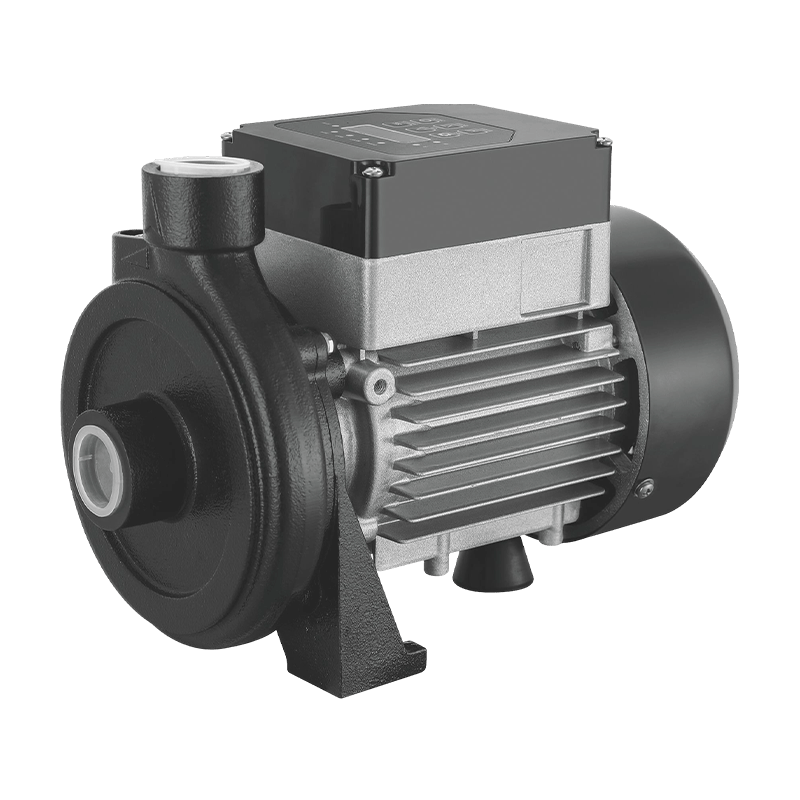

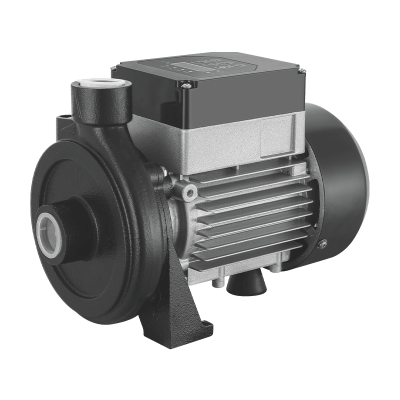

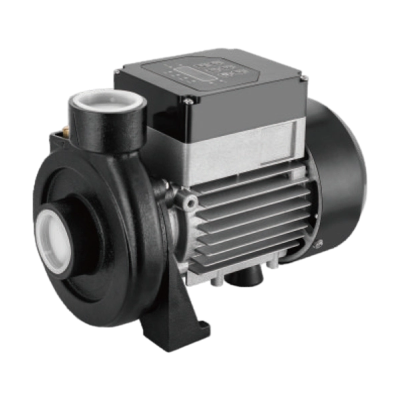

n13 x38

Technical Specifications

Model Power Inlet/Outlet NPSH H.Max Q.Max 3000-3600r/min
HP kW In m m l/min m3/h 0 2 4 5 6 8 10 12 16
TPN5.5-30-600W/60V 0.8 0.6 1"x1" 7 30 92 H(m) 30 23 15 11 - - - - -
TPN15-23-750W/72V 1 0.75 1.5"x1.5" 7 23 250 23 20.5 18 17 16 15 12.5 10 7.5
TPN15-23-750W/72V-A/D 1 0.75 1.5"x1.5" 7 23 250 23 20.5 18 17 16 15 12.5 10 7.5

TPN-A/D TPN32-32 TPN-A/D

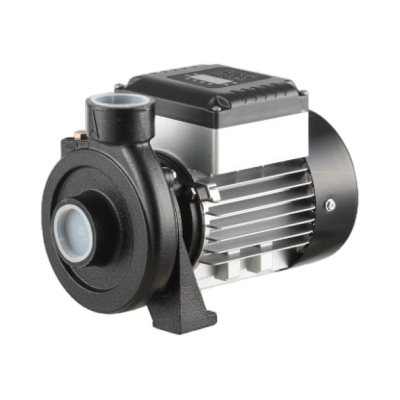

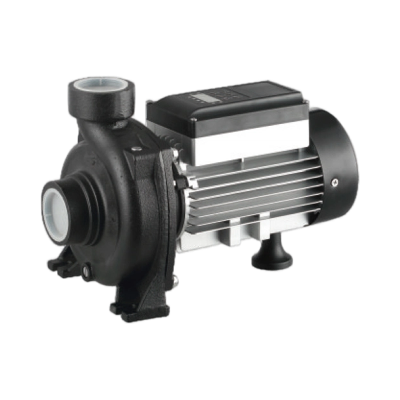

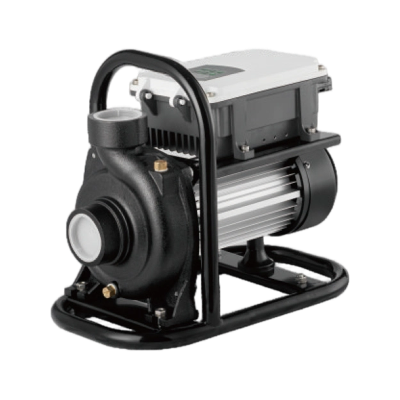

x39 x40 x41

Technical Specifications

Model Power Inlet/Outlet NPSH H.Max Q.Max 3000-3600r/min
HP kW In m m L/min m3/h 0 5 10 15 20 25 30 35
TPN32-32-1500W/150V 2 1.5 2"x2" 8 32 533 H(m) 32 27 22 20 14 10 6 0
TPN34-40-2200W/200V 3 2.2 2"x2" 8 40 566 40 36 31.5 27 22 18 12.5 1
TPN32-32-1500W/150V-AC/DC 2 1.5 2"x2" 8 32 533 32 27 22 20 14 10 6 0
TPN34-40-2200W/200V-AC/DC 3 2.2 2"x2" 8 40 566 40 36 31.5 27 22 18 12.5 1
TPN32-32-1500W/150V-A/D 2 1.5 2"x2" 8 32 533 32 27 22 20 14 10 6 0
TPN34-40-2200W/200V-A/D 3 2.2 2"x2" 8 40 566 40 36 31.5 27 22 18 12.5 1

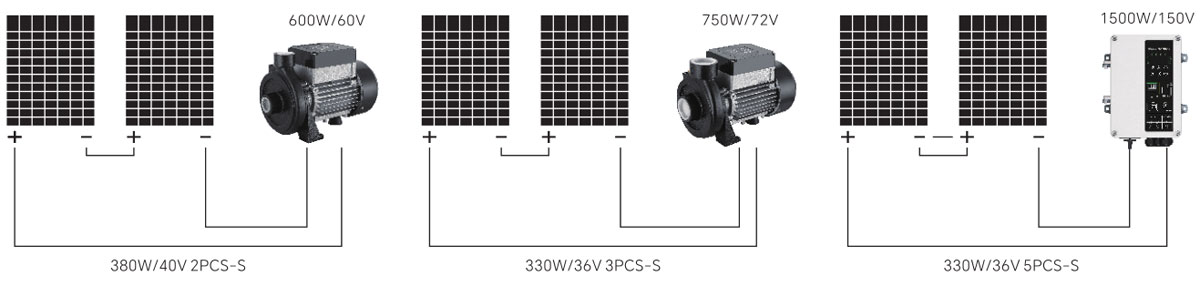

hprjnolu1788314964

TCPM

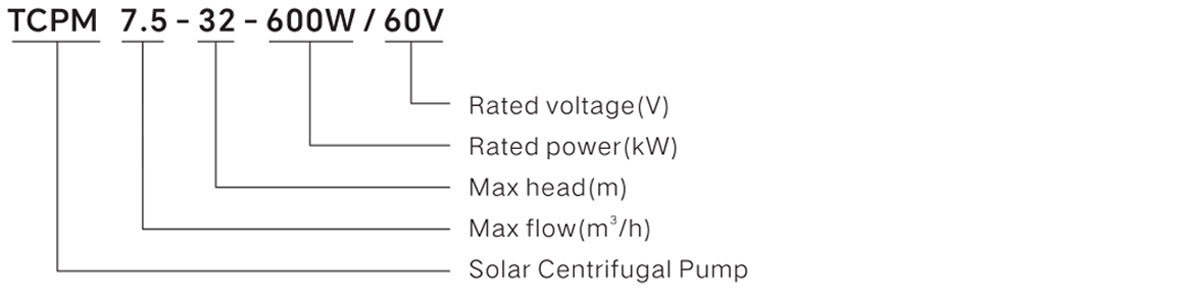

Model Instruction

axygdcba1788315095

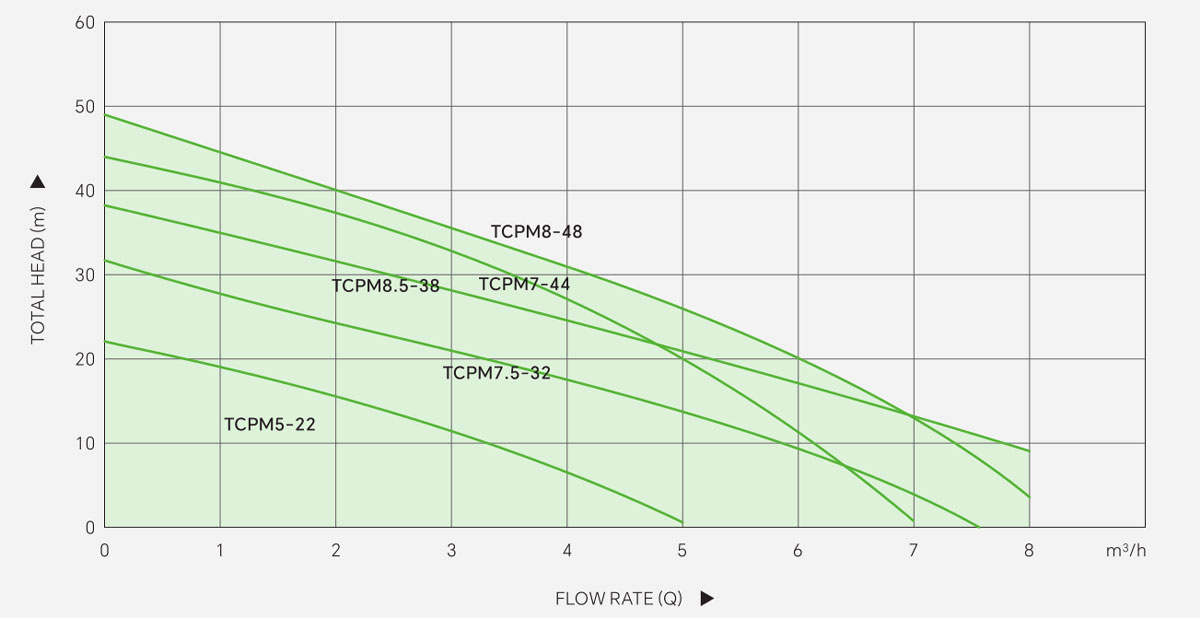

Performance Curves

twceobqk1788315100

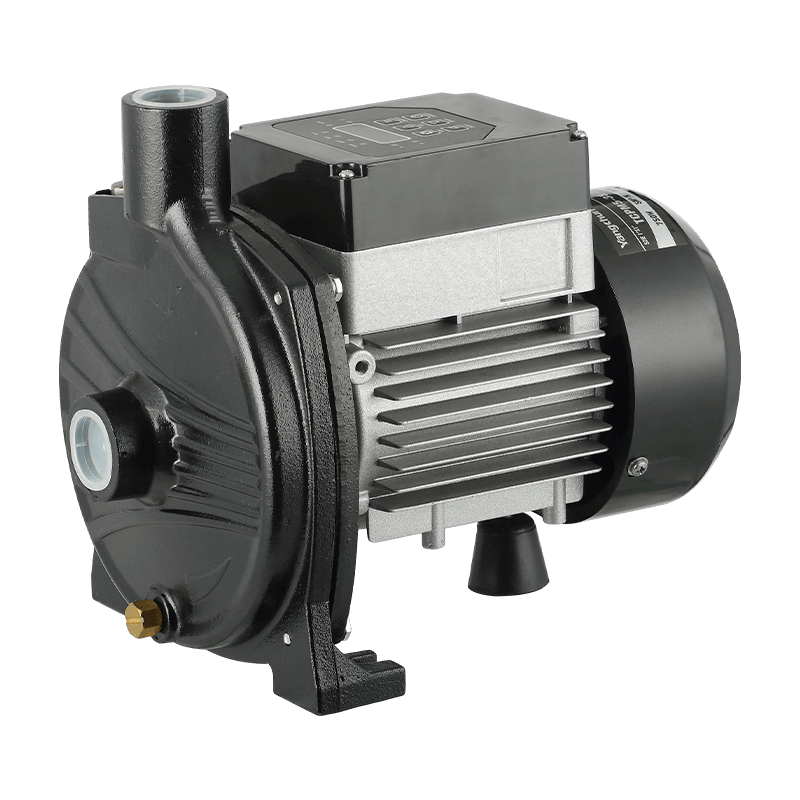

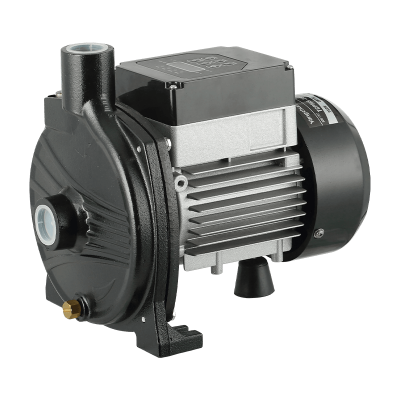

TCPM5-22 / TCPM5-35 TCPM-A/D

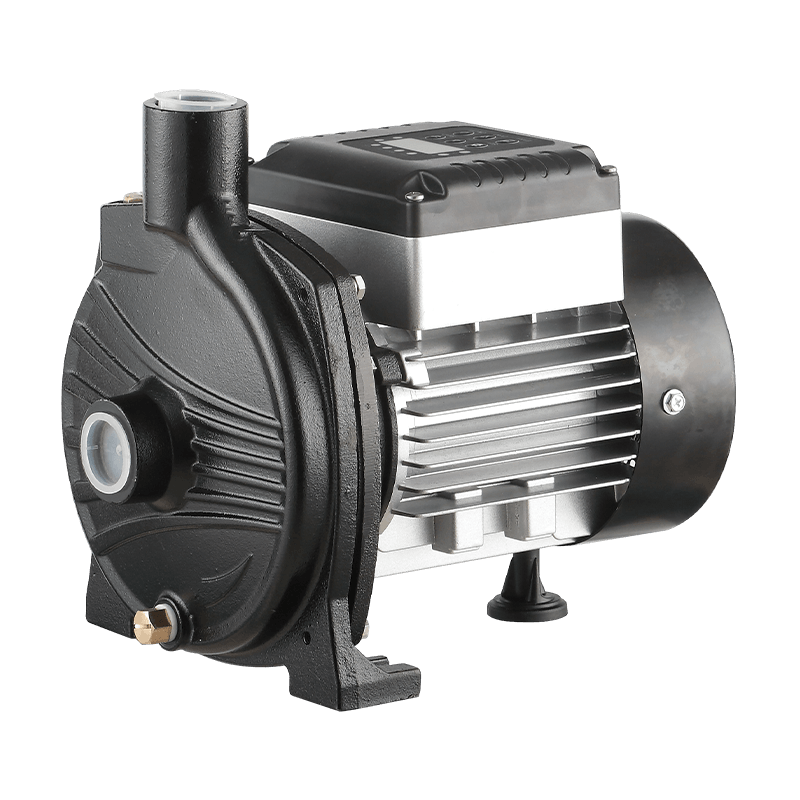

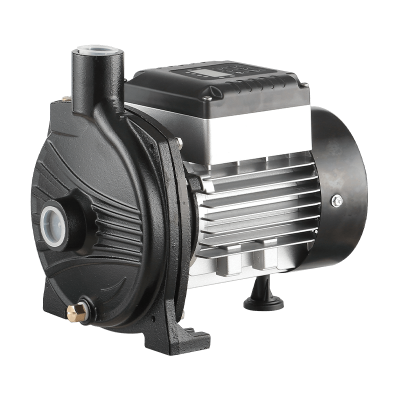

ucbfqxfr1788314152 ocjoikkd1788314153

Technical Specifications

Model Power Inlet/Outlet H.Max Q.Max 3000-3600r/min
HP kW In m L/min m3/h 0 1 2 3 4 5 6 7 8
TCPM5-22-400W/36V 0.55 0.4 1"x1" 22 83 H(m) 22 18 15.5 12 7 0.5 0 0 0
TCPM7.5-32-600W/60V 0.8 0.6 1"x1" 32 125 32 27 23.5 20.5 18 14 11 7 0
TCPM8.5-38-900W/96V 1.2 0.9 1"x1" 38 142 38 35 32 30 26 23 19 13.5 9.5
TCPM8.5-38-900W/96V-A/D 1.2 0.9 1"x1" 38 142 38 35 32 30 26 23 19 13.5 9.5
TCPM7-44-1200W/110V 1.6 1.2 1.25"x1" 44 116 44 40 38 34 31 25 15 1 0
TCPM8-48-1500W/150V 2 1.5 1.25"x1" 48 133 48 45 42 39 35 30 22 15 1
TCPM8-48-1500VW150V-A/D 2 1.5 1.25"x1" 48 133 48 45 42 39 35 30 22 15 1

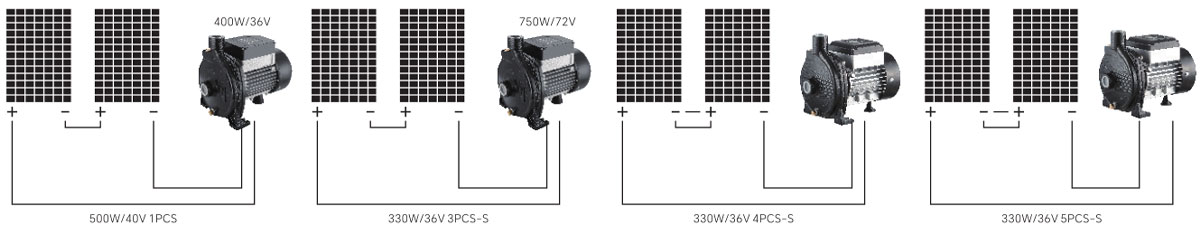

emtubtar1788315258

Inquiry Now


  • The 1.5-Inch to 2-Inch Household Solar Pump is widely used for:

    • Household clean water supply
    • Farmland irrigation
    • Farm and pasture water supply
    • Water tower water delivery
    • Solar irrigation systems
