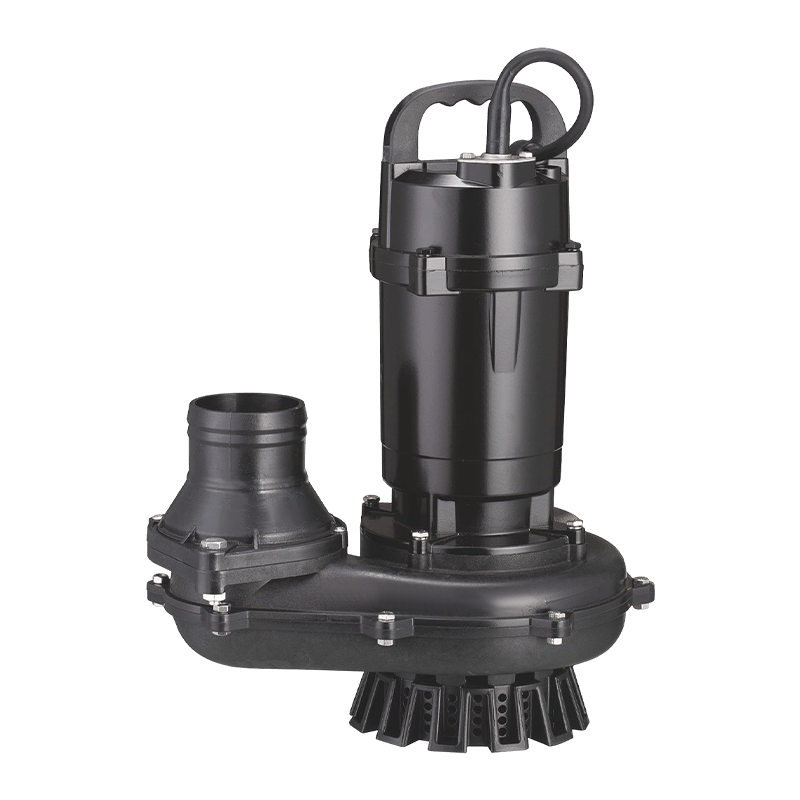

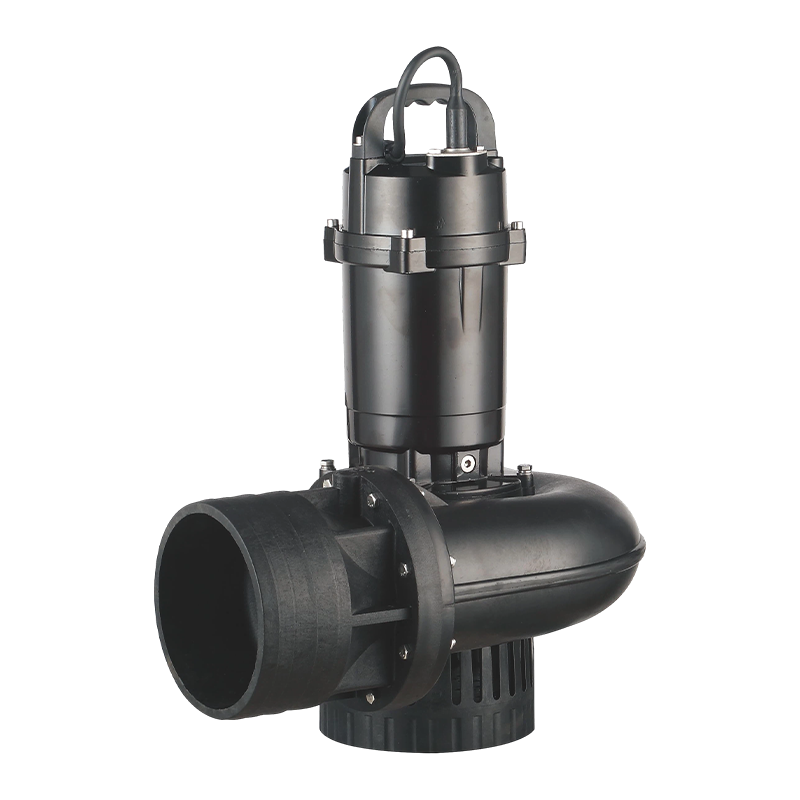

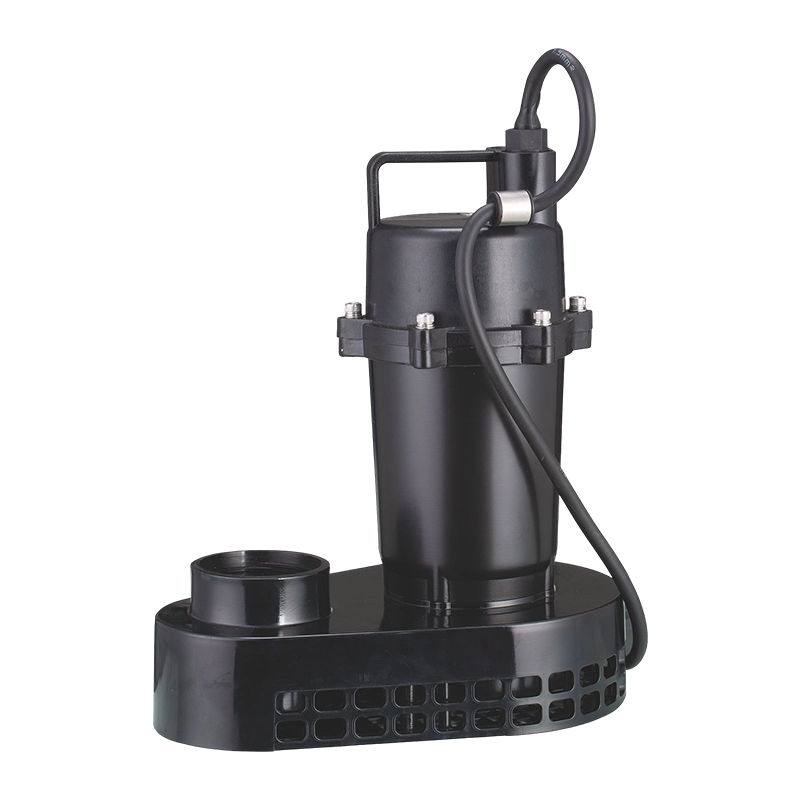

TQN 1.5-Inch to 6-Inch Solar Submersible Pump with Controller 750W-2200W

1.5-Inch to 6-Inch Solar Submersible Pump with Controller 750W-2200W is a compact solar submersible pump for small-scale water pumping. The TQN series uses a permanent magnet DC brushless motor and a built-in controller. It can automatically adjust speed according to available sunlight and supports automatic start and stop. The pump is designed for small farmland irrigation, garden irrigation, ditch water pumping, and selected battery-powered applications.

Purchasing Information
MOQ: 100 pcs
Lead Time: 35 days
Payment Terms: TT / DP / LC
Shipping: Maritime shipping, air freight, or road transportation
B2B Supply: Suitable for distributors, importers, irrigation suppliers, and water system contractors

For procurement, buyers should confirm the required power range, well dimensions, installation depth, water conditions, and solar system configuration before placing an order.

TQN

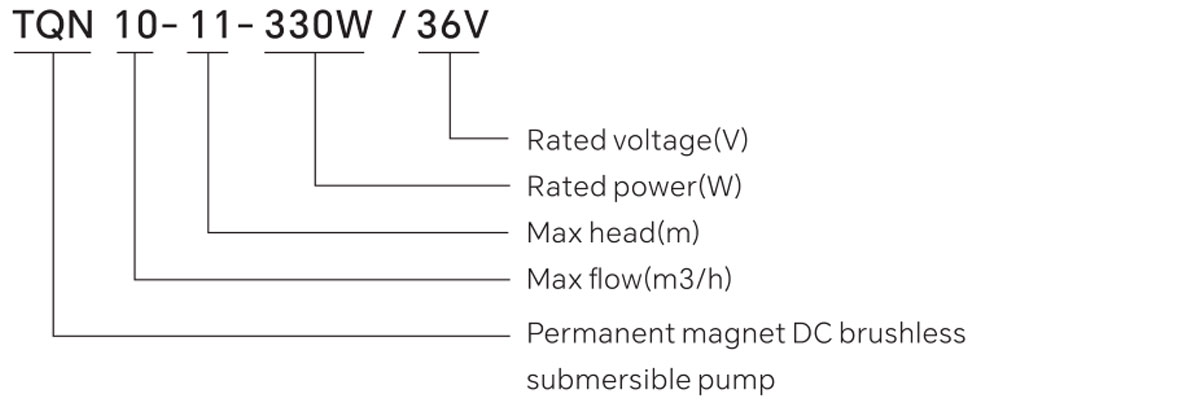

Model Instruction

vfjsodsc1788311886

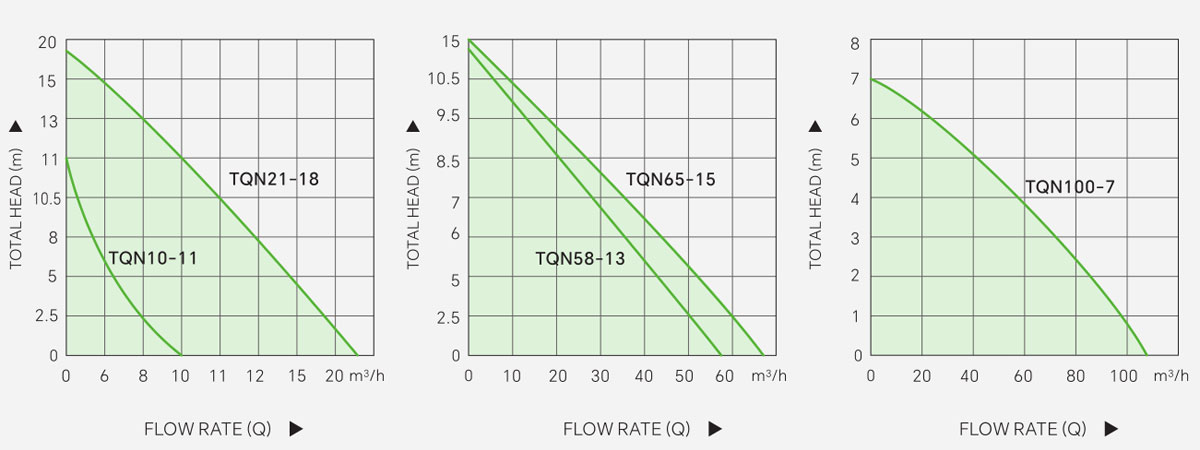

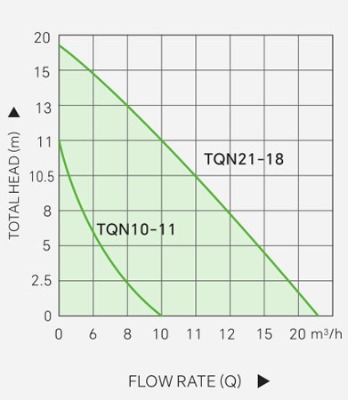

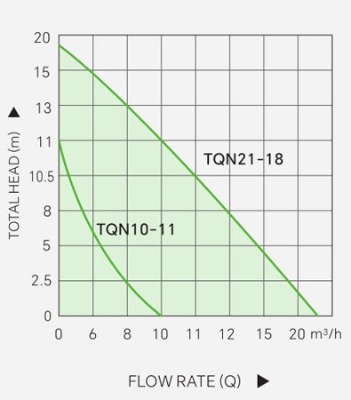

Performance Curves

uictyfpc1788311892

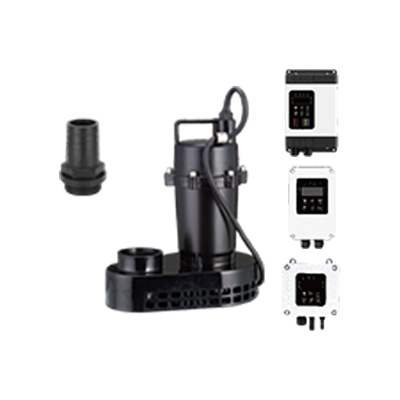

TQN10
x31 uictyfpc1788311892

Technical Specifications

Model Power Outlet H.Max Q.Max m3/h 0 3 4 6 7 8 9 10
HP kW In m l/min l/min 0 50 66 100 116 133 150 166
TQN10-11-330W/36V 0.4 0.33 1.5" 11 166 H(m) 11 8.5 7.5 6.5 5 4 3 0.5



TQN21
x32 uictyfpc1788311892

Technical Specifications

Model Power Outlet H.Max Q.Max m3/h 0 6 8 10 11 12 15 18 21
HP kW In m l/min l/min 0 100 133 166 183 200 250 300 350
TQN21-18-750W/72V 1 0.75 2" 18 350 H(m) 18 15 13 11 10 9.5 7 5 1

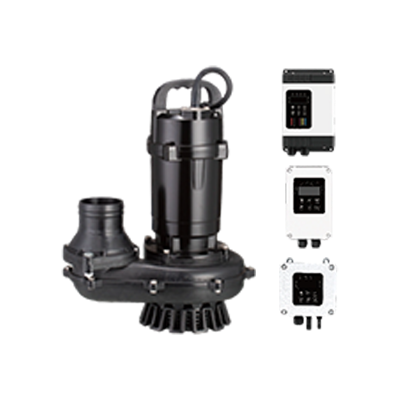

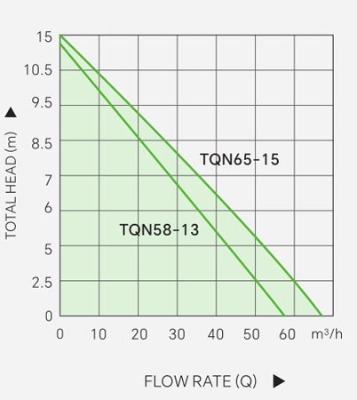

TQN58 / TQN65
105812 uictyfpc1788311892

Technical Specifications

Model Power Outlet H.Max Q.Max m3/h 0 20 25 30 35 40 45 58 65
HP kW In In m l/min l/min 0 333 416 500 583 666 750 966 1083
TQN58-13-1100W/96V 1.5 1.1 3"/4" 13 833 H(m) 13 9.5 8.5 7 6 5 3.5 0.5 0
TQN65-15-1500W/110V 2 1.5 4" 15 1083 15 13 11.5 9.5 8 7 5.5 3 0.5

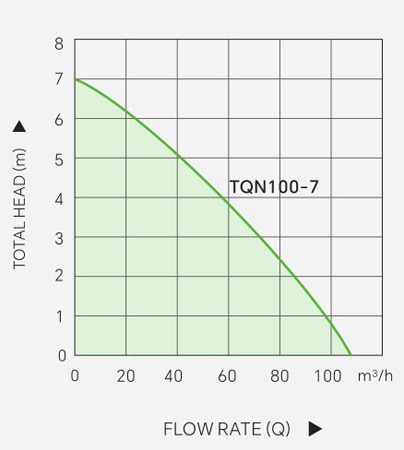

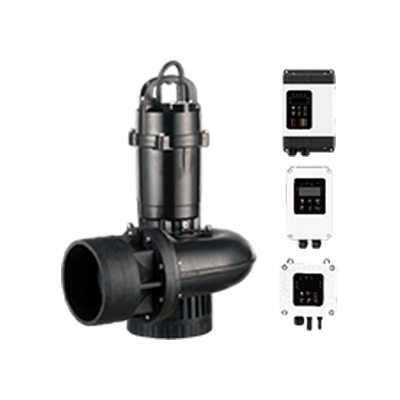

TQN100
x33 uictyfpc1788311892

Technical Specifications

Model Power Outlet H.Max Q.Max m3/h 0 30 50 60 70 80 90 100 110 120
HP kW In m l/min l/min 0 500 833 1000 1166 1133 1500 1666 1833 2000
TQN100-7-1500W/110V 2 1.5 6" 7 1666 H(m) 7 5.5 4.5 4 3.5 2.5 2 0.5 0 0
Inquiry Now


  • The 1.5-Inch to 6-Inch Solar Submersible Pump is widely used for:

    • Small-area farmland irrigation
    • Garden irrigation
    • Ditch water pumping
    • Small solar water supply systems
    • Battery-powered pumping applications
