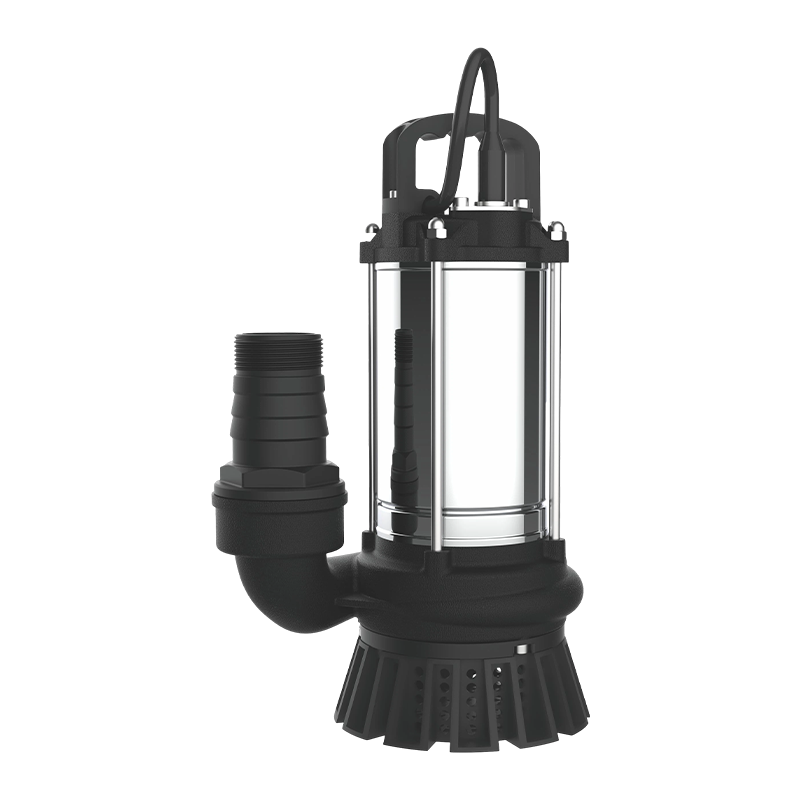

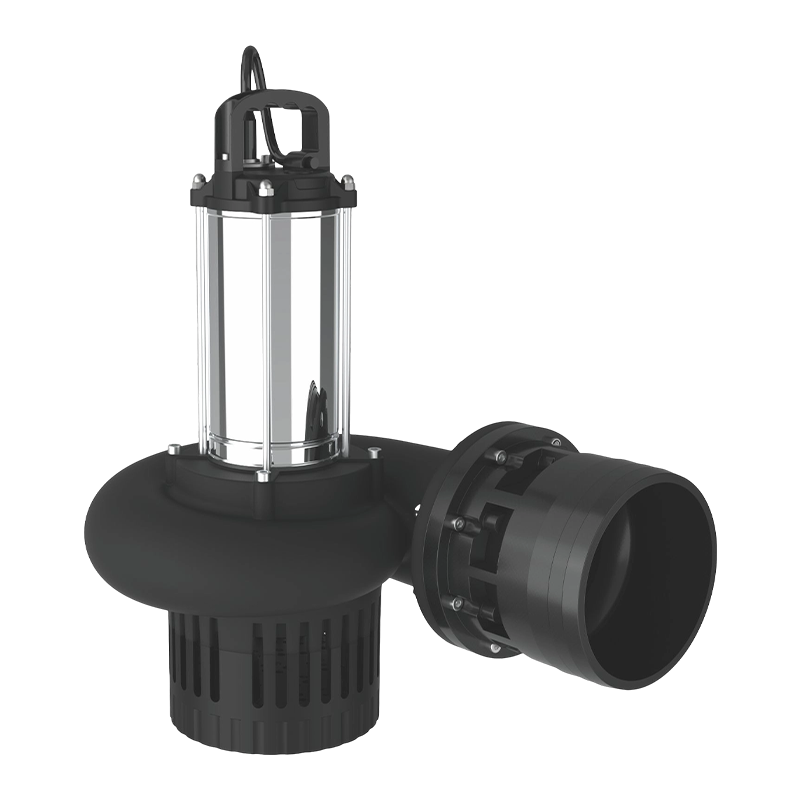

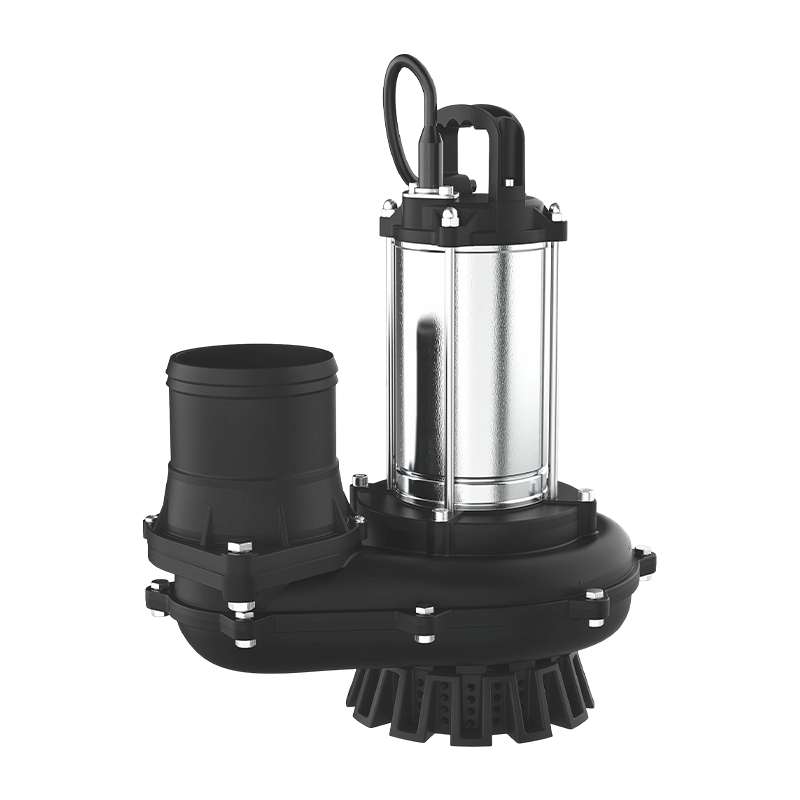

TQ 2-Inch to 6-Inch Small Solar Submersible Pump 750W-2200W

2-Inch to 6-Inch Small Solar Submersible Pump 750W-2200W is a compact submersible pump designed for small-scale water pumping applications. The TQ series uses a permanent magnet DC brushless motor with a built-in controller. It can automatically adjust motor speed according to available sunlight and can also be used with a battery-powered system. The pump is suitable for small farmland irrigation, garden irrigation, and ditch water pumping.

Purchasing Information
MOQ: 100 pcs
Lead Time: 35 days
Payment Terms: TT / DP / LC
Shipping: Maritime shipping, air freight, or road transportation
B2B Supply: Suitable for distributors, importers, irrigation suppliers, and water system contractors

For procurement, buyers should confirm the required power range, well dimensions, installation depth, water conditions, and solar system configuration before placing an order.

TQ

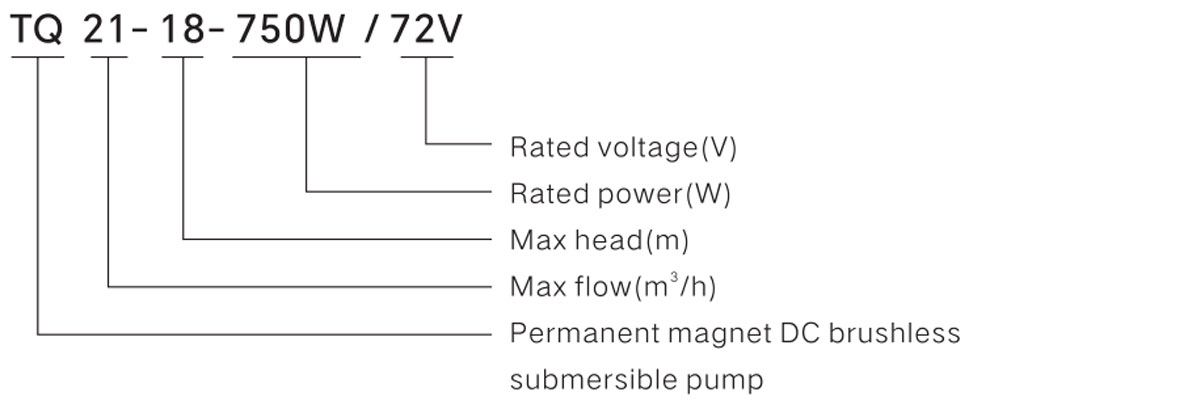

Model Instruction

qhogccef1788311352

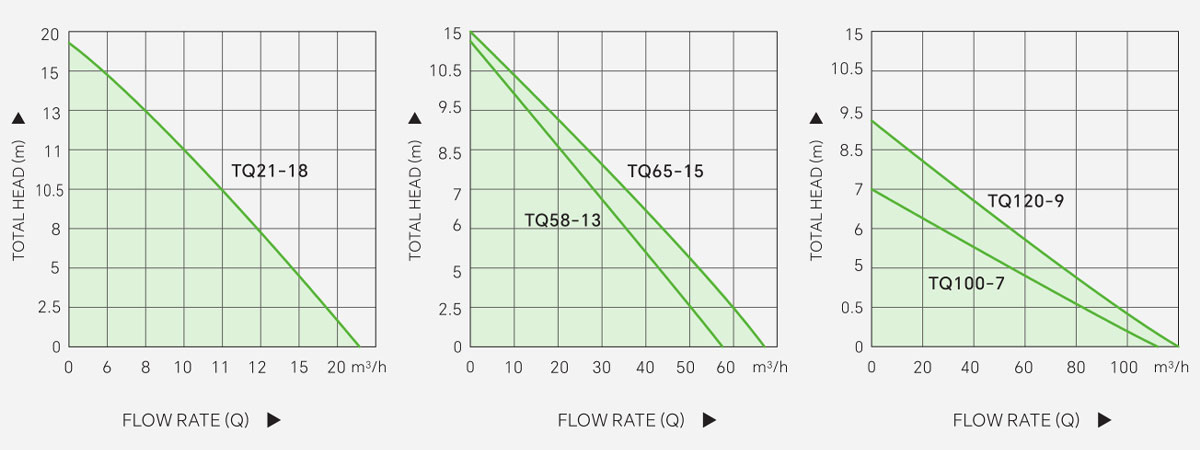

Performance Curves

korollpv1788311361

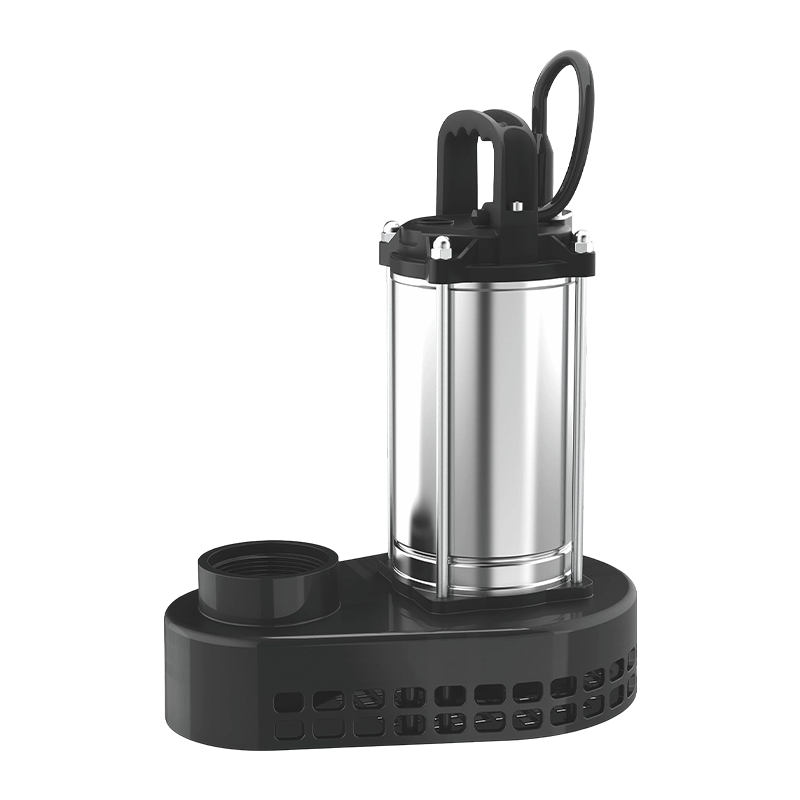

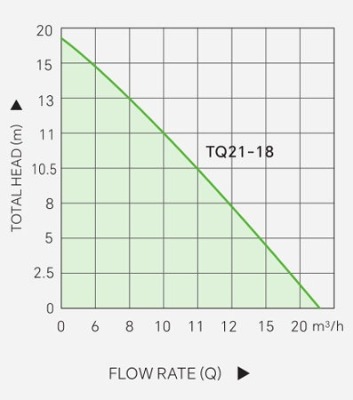

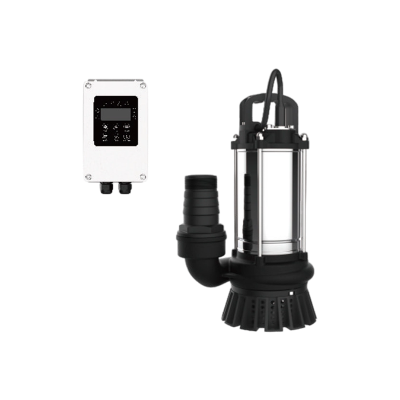

TQ21
x28 korollpv1788311361

Technical Specifications

Model Power Outlet H.Max Q.Max m3/h 0 6 8 10 11 12 15 18 21
HP kW In m l/min l/min 0 100 133 166 183 200 250 300 350
TQ21-18-750W/72V 1 0.75 2" 18 350 H(m) 18 15 13 11 10 9.5 7 5 1
TQ21-18-750W/72AC/DC 1 0.75 2" 18 350 18 15 13 11 10 9.5 7 5 1

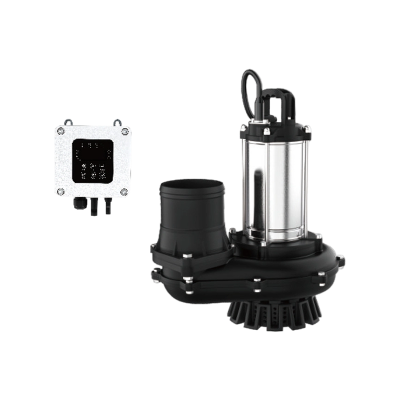

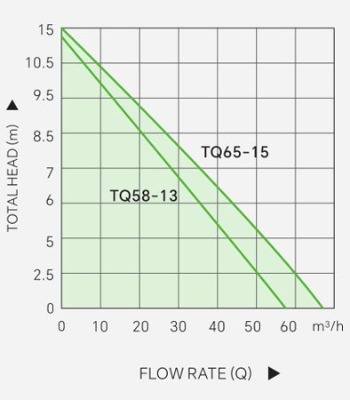

TQ58 / TQ65
x29 korollpv1788311361

 Technical Specifications

Model Power Outlet H.Max Q.Max m3/h 0 20 25 30 35 40 45 58 65
HP kW In m l/min l/min 0 333 416 500 583 666 750 966 1083
TQ58-13-1100W/96V 1.5 1.1 3"/4" 13 833 H(m) 13 9.5 8.5 7 6 5 3.5 0.5 0
TQ65-15-1500W/110V 2 1.5 4" 15 1083 15 13 11.5 9.5 8 7 5.5 3 0.5
TQ58-13-1100W/96V-AC/DC 1.5 1.1 3"/4" 13 833 13 9.5 8.5 7 6 5 3.5 0.5 0
TQ65-15-1500W/110V-AC/DC 2 1.5 4" 15 1083 15 13 11.5 9.5 8 7 5.5 3 0.5

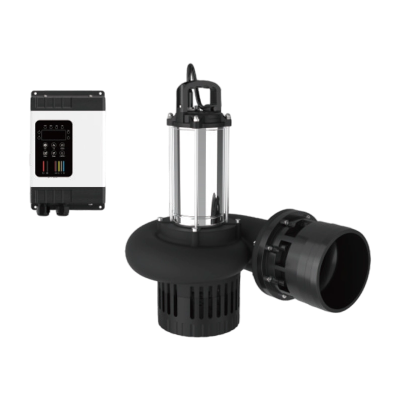

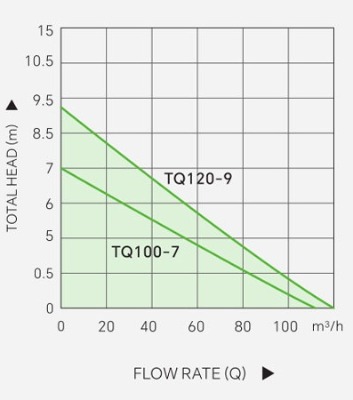

TQ100 / TQ120
x30 korollpv1788311361

Technical Specifications

Model Power Outlet H.Max Q.Max m3/h 0 30 50 60 70 80 90 100 110 120
HP kW In m l/min l/min 0 500 833 1000 1166 1333 1500 1666 1833 2000
TQ100-7-1500W/110V 2 1.5 6" 7 1666 H(m) 7 5.5 4.5 4 3.5 2.5 2 0.5 0 0
TQ120-9-2200W/200V 3 2.2 6" 9 2000 9 7 6 5.5 5 4.5 3.5 2.5 1.5 0.5
TQ100-7-1500W/110V-AC/DC 2 1.5 6" 7 1666 7 5.5 4.5 4 3.5 2.5 2 0.5 0 0
TQ120-9-2200W/200V-AC/DC 3 2.2 6" 9 2000 9 7 6 5.5 5 4.5 3.5 2.5 1.5 0.5
Inquiry Now


  • The small solar submersible pump is widely used for:

    • Small-area farmland irrigation
    • Garden irrigation
    • Ditch water pumping
    • Small solar water supply systems
    • Battery-powered pumping systems
