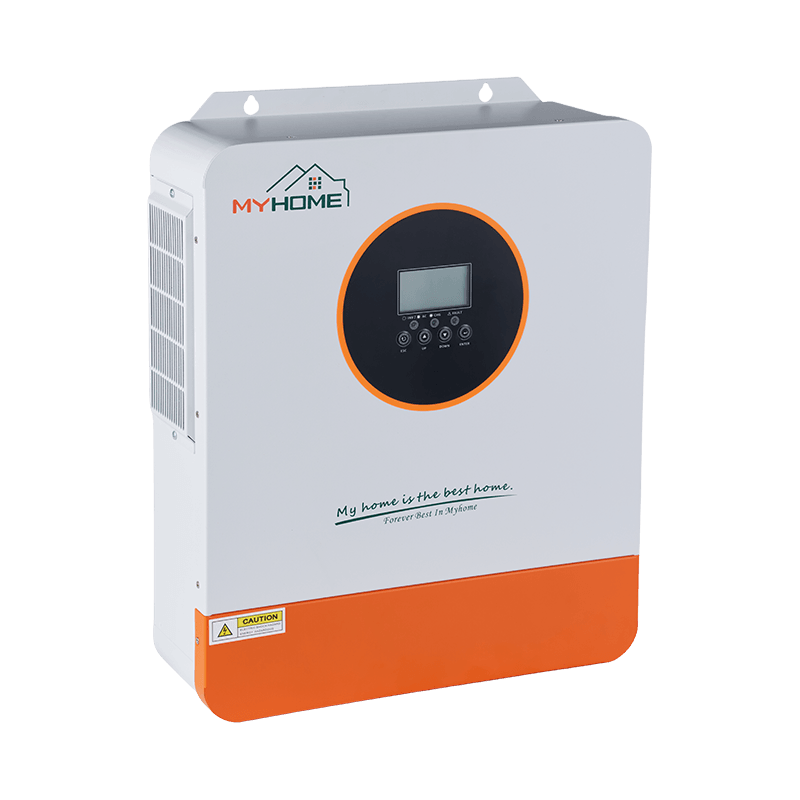

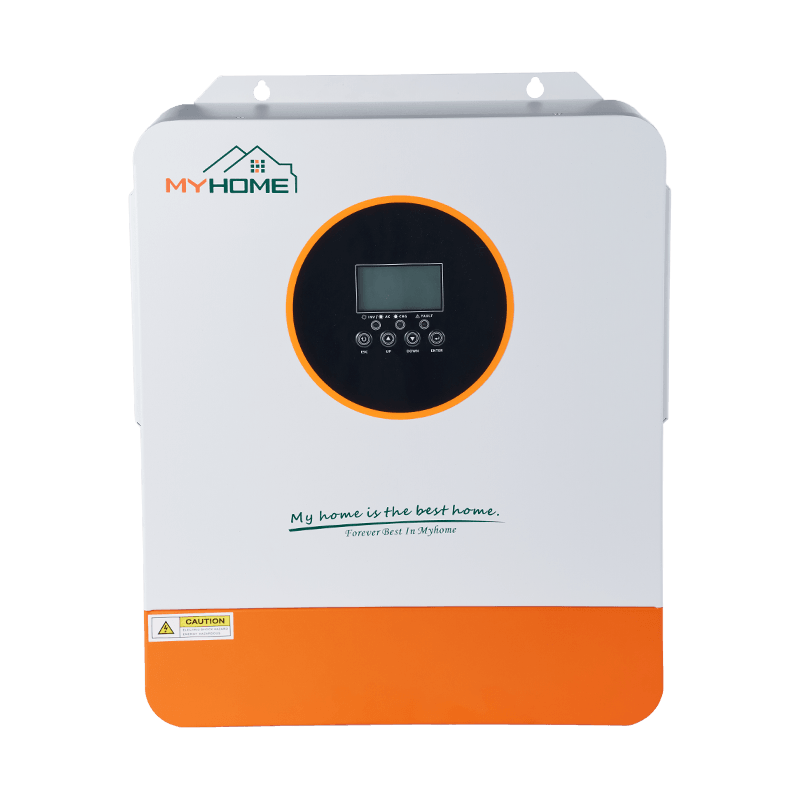

MH6200L-48 6200W 230VAC Pure Sine Wave Hybrid Solar Inverter with MPPT

6200W 230VAC Pure Sine Wave Hybrid Solar Inverter with MPPT is designed for household hybrid and off-grid solar power systems. It converts DC power from solar batteries into 230VAC power for connected loads. The hybrid design combines solar energy management, battery storage, and backup power functions. With a 6200W rated output and built-in MPPT function, it is suitable for household systems that require higher power capacity and stable AC power output.

Purchasing Information
MOQ: 100 pcs
Lead Time: 35 days
Payment Terms: TT / DP / LC
Shipping Methods: Maritime shipping / Air freight / Road transportation

For bulk orders, buyers can confirm the required quantity, target market, system configuration, packaging requirements, and technical specifications before production.

Technical Specifications
Item Specification
Product Name: 6200W 230VAC Pure Sine Wave Hybrid Solar Inverter with MPPT
Model MH6200L-48
Rated Power 6200W
AC Output Voltage 230VAC
Battery Voltage 48V

Bottom View

wvefqemf1789467885

1. AC input
2. Main output
3. Second output
4. Grounding
5. RS485 communication port
6. Grounding
7. Battery input
8. PV input

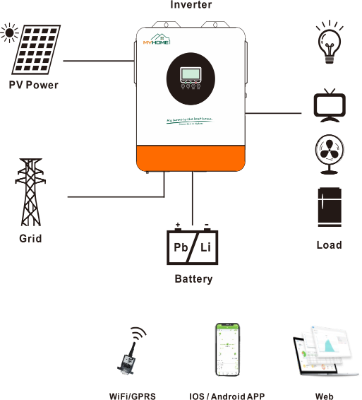

System Diagram

ustwjslg1789467903

Technical Data

MODEL EM6200T-48L
PHASE 1-Phase In /1-Phase Out
Maximum PV Input Power 9000W
Maximum Main Output Power 6200VA/6200W
Maximum Second Output Power 6200VA/6200W
Maximum Total Output Power 6200VA/6200W
Parallel Capability NO
Lithium Battery activation YES( By PV or Utility)
Lithium Battery communication YES(RS485)
WIFI Optional
AC INPUT
Nominal Voltage 230VAC
Acceptable Voltage Range 170-280VAC(For personal Computer);90-280VAC(For Home Appliances)
Frequency 50/60 Hz (Auto sensing)
AC OUTPUT
Nominal Voltage 220/230VAC±5%
Surge Power 12400VA
Frequency 50/60 Hz
Waveform Pure Sine wave
Dual Outputs Yes
Transfer Time 10ms(For personal Computer);20ms(For Home Appliances)
Peak Efficiency 94%
Overload Protection 5s@ >=140% load; 10s@100%~140% load
Admissible Power Factor 0.6~1 (inductive or capacitive)
BATTERY
Battery Voltage 48VDC
Floating Charge Voltage 54VDC
OverCharge Protection 63VDC
Charging Method CC/CV
SOLAR CHARGER & AC CHARGER
Solar Charger TYPE MPPT
Max.PV Array Power 9000W
Max. PV Array Open Circuit Voltage 500VDC
PV Array MPPT Voltage Range 60VDC~500VDC
Max. Solar Input Current 1/27A
Max. Solar Charge Current 120A
Max. AC Charge Current 120A
Max. Charge Current 120A
PHYSICAL
Dimensions, D x W x H(mm) 371.8x342x116.5
Package Dimensions,D x W x H(mm) 478x408x195
Net Weight (Kgs) 7.9
Gross weight(Kgs) 8.9
Communication Interface RS485(RJ45)/RS232(RJ45)
ENVIRONMENT
Operating Temperature Range -10°C to 50°C
Storage temperature -15°C~ 60°C
Humidity 5% to 95% Relative Humidity (Non-condensing)
Ingress Protection IP21

Product specifications are subject to change without further notice.

Inquiry Now


  • The 6200W 230VAC Pure Sine Wave Hybrid Solar Inverter is suitable for:

    • Household off-grid solar power systems
    • Residential backup power systems
    • Home solar battery storage
    • Higher-power household electrical loads
    • Remote areas with limited or unstable grid access
