MH11000L-48 11000W Pure Sine Wave Hybrid Solar Inverter with MPPT

11000W Pure Sine Wave Hybrid Solar Inverter with MPPT is designed for household off-grid solar power systems. It converts DC power from solar panels and batteries into AC power for household loads. The hybrid design supports solar energy use and battery backup, while the MPPT function helps manage available solar power. With an 11000W rated output, it is suitable for higher-load household applications that require stable AC power and energy storage.

Purchasing Information
MOQ: 100 pcs
Lead Time: 35 days
Payment Terms: TT / DP / LC
Shipping Methods: Maritime shipping / Air freight / Road transportation

For bulk orders, buyers can confirm the required quantity, target market, system configuration, packaging requirements, and technical specifications before production.

Technical Specifications
Item Specification
Product Name: 11000W Pure Sine Wave Hybrid Solar Inverter with MPPT
Model MH11000L-48
Rated Power 11000W
Battery Voltage 48V

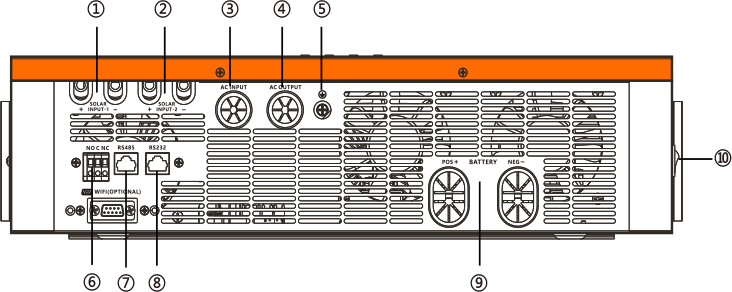

Bottom View

mkgclhkv1789468414

1. Solar input - 1
2. Solar input- 2

3. AC input

4. AC output

5. Grounding

6. Dry contact

7.RS485 communication port
8.RS232 communication port

9. Battery input
10. Power on / off switch

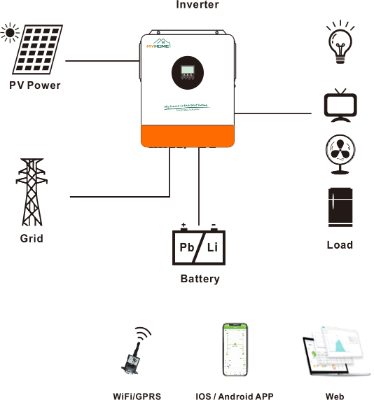

System Diagram

ofuwifkz1789468556

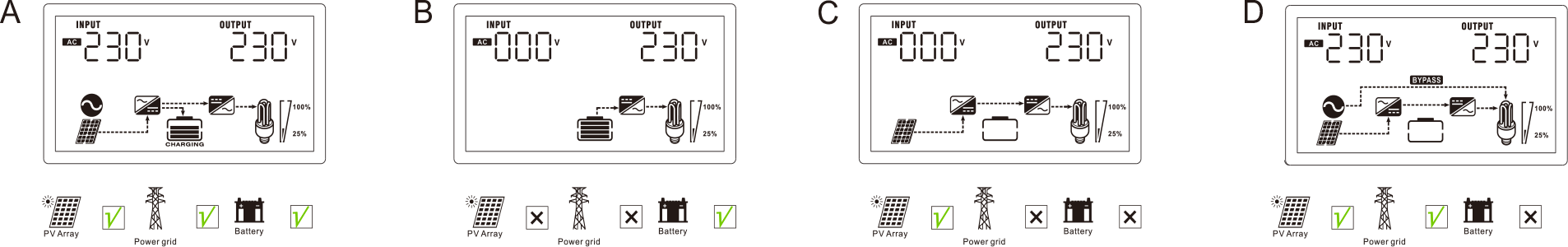

Working Mode

ccirfjzd1789468622

Technical Data

MODEL EM11000-48L
Capacity 11KVA/11KW
Parallel Capability NO
Lithium Battery activation YES ( By PV or Utility)
Lithium Battery communication YES(RS485)
Built-in WIFI Optional
INPUT
Nominal Voltage 230VAC
Acceptable Voltage Range 170-280VAC(For personal Computer);90-280vac(For Home Appliances)
Frequency 50/60 Hz(Auto sensing)
OUTPUT
Nominal Voltage 220/230VAC±5%
Surge Power 22000VA
Frequency 50/60Hz
Waveform Pure Sine wave
Transfer Time 10ms(For personal Computer);20ms(For Home Appliances)
Peak Efficiency(PV to INV) 96%
Peak Efficiency(Battery to INV) 93%
Overload Protection 5s@ >=140% load; 10s@110~140% load
Crest Factor 3:1
Admissible Power Factor 0.6~1 (inductive or capacitive)
BATTERY
Battery Voltage 48VDC
Floating Charge Voltage 54VDC
OverCharge Protection 63VDC
Charging Method CC/CV
SOLAR CHARGER & AC CHARGER
Solar Charger Type MPPT
Max.PV Array Power 5500W*2
Max.PV Array Open Circuit Voltage 500VDC
PV Array MPPT Voltage Range 60VDC~500VDC
Max.Solar Input Current 18A*2
Max.Solar Charge Current 160A
Max.AC Charge Current 120A
Max.Charge Current (PV+AC) 160A
PHYSICAL
Dimensions,D x W x H(mm) 544.5x414.5x122.5
Package Dimensions,D x W x H(mm) 637x495x214
Net Weight(Kg) 14.8
Gross weight(Kgs) 16.05
Communication Interface RS232+RS485+DRY CONTACT
ENVIRONMENT
Operating Temperature Range (-10°C to 55°C)
Storage Temperature (-15°C ~ 60°C)
Humidity 5% to 95% Relative Humidity ( Non-condensing )
Ingress Protection IP21

Product specifications are subject to change without further notice.

Inquiry Now


  • The 11000W Pure Sine Wave Hybrid Solar Inverter is suitable for:

    • Household off-grid solar power systems
    • Home energy storage systems
    • Backup power systems
    • Solar power systems for areas with unstable grid supply
    • Household electrical loads requiring higher power output
