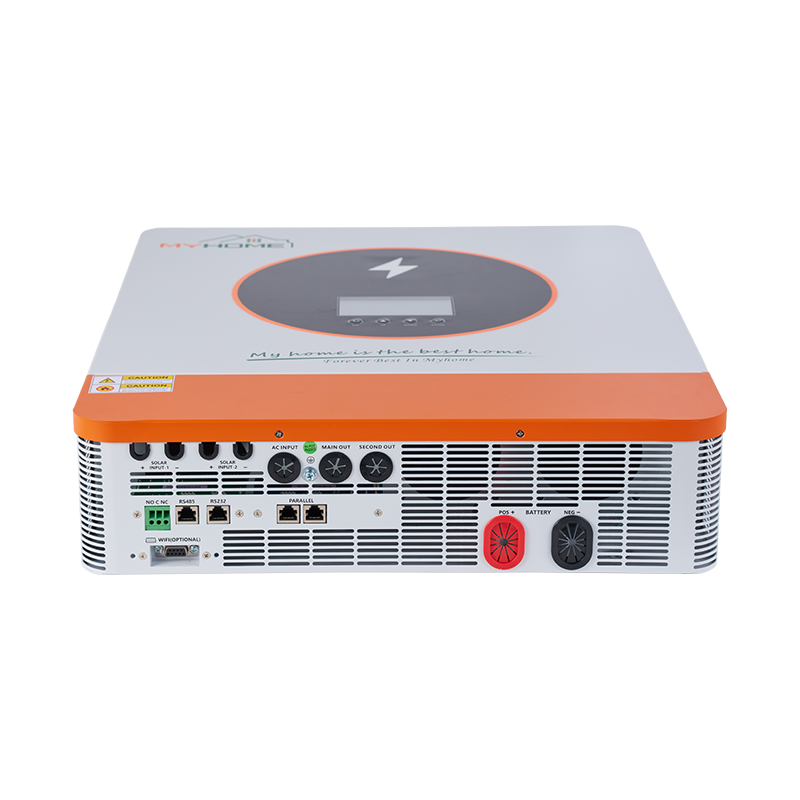

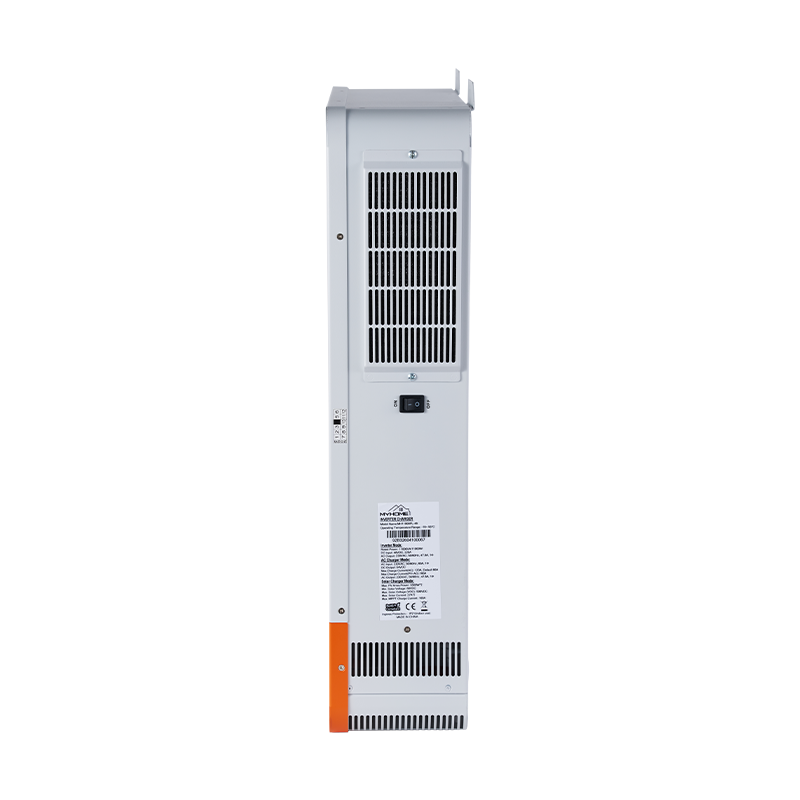

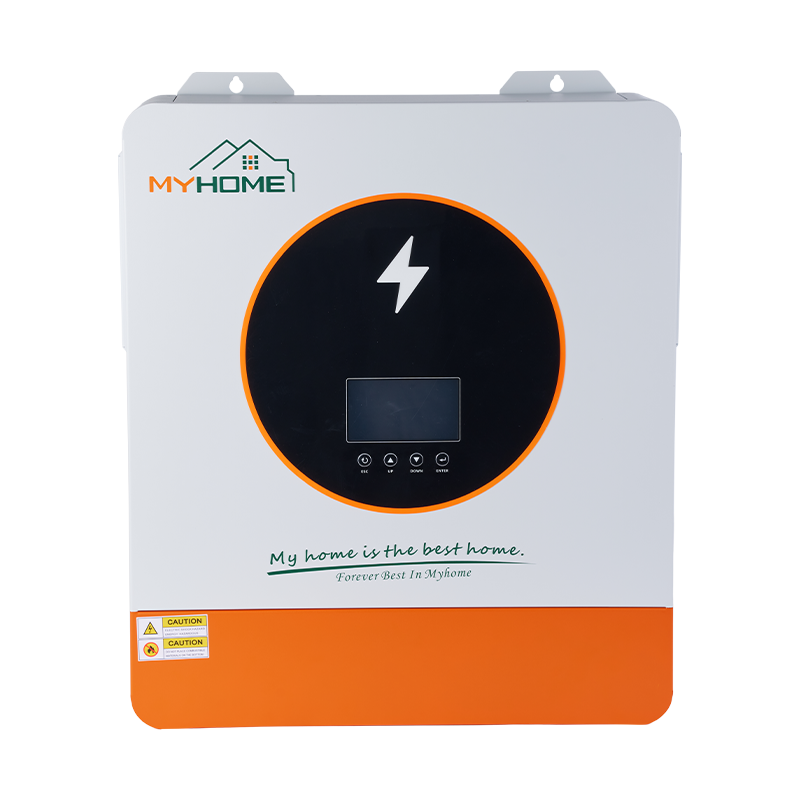

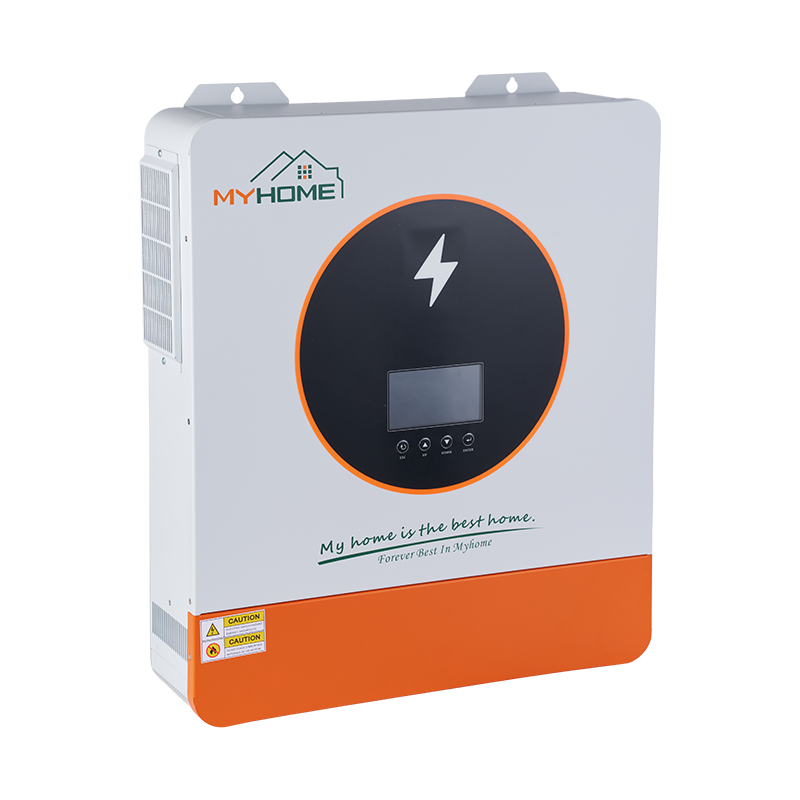

MH11000PL-48 11000W Parallel Pure Sine Wave Hybrid Solar Inverter with MPPT

11000W Parallel Pure Sine Wave Hybrid Solar Inverter with MPPT is designed for household off-grid solar power systems that require high power output and parallel operation. It converts DC power from solar panels and batteries into AC power for household loads. The integrated MPPT function manages solar energy input, while the parallel design supports system expansion. The MH11000PL-48 model uses a 48V battery system and is suitable for home energy storage and backup power applications.

Purchasing Information
MOQ: 100 pcs
Lead Time: 35 days
Payment Terms: TT / DP / LC
Shipping Methods: Maritime shipping / Air freight / Road transportation

For bulk orders, buyers can confirm the required quantity, target market, system configuration, packaging requirements, and technical specifications before production.

Technical Specifications
Item Specification
Product Name: 11000W Parallel Pure Sine Wave Hybrid Solar Inverter with MPPT
Model MH11000PL-48
Rated Power 11000W
Battery Voltage 48V

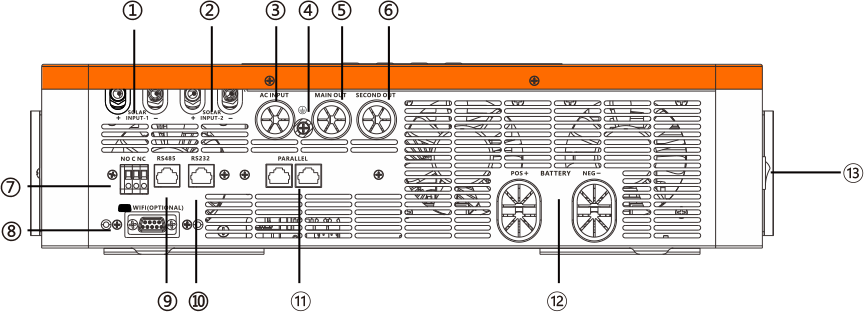

Bottom View

N11-f78o

1. Solar input-1

2. Solar input 2

3. AC input

4. Grounding

5. AC Main output

6. AC Second output

7. Dry contact

8. WiFi (Optional)

9. RS485 communication port

10. RS232 communication port

11. Parallel

12. Battery input

13. Power on/off switch

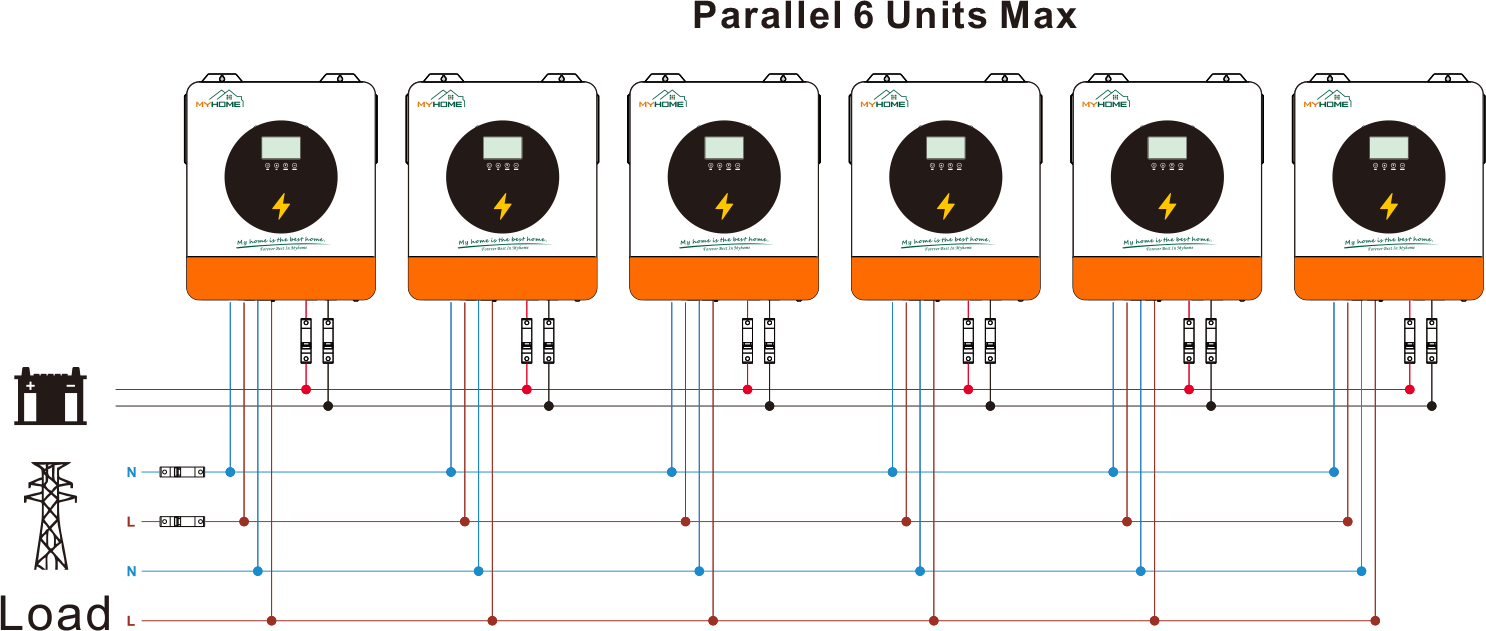

System Diagram

N12

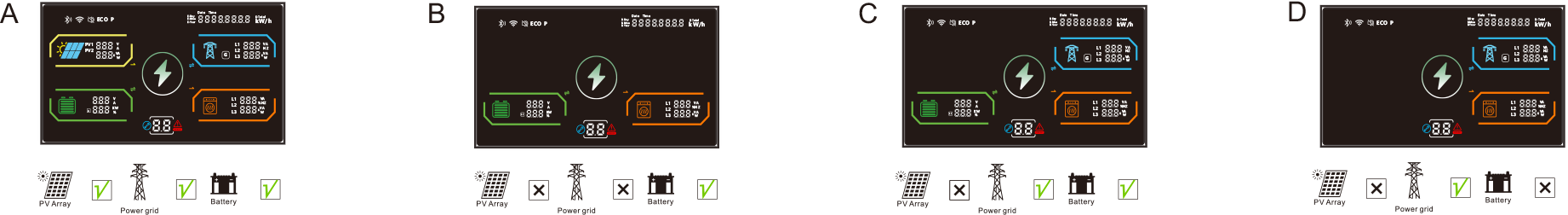

Working Mode

N13

Technical Data

MODEL M11000T-48PL Pro
CAPACITY 11KVA/11KW
Maximum PV Input Power 11KW
Twin AC Output Function YES
Maximum Main Output Power 11KVA/11KW
Maximum Second Output Power 5.5KVA/5.5KW
Maximum Total Output Power 11KVA/11KW
Parallel Capability YES, 6units
Lithium Battery Communication YES(RS485)
Lithium Battery Activation YES(By PV or Utility)
Built-in WIFI Optional
INPUT
Nominal Voltage 230VAC
Acceptable Voltage Range 170-280VAC(For personal Computer);90-280VAC(For Home Appliances)
Frequency 50/60 Hz (Auto sensing)
OUTPUT
Nominal Voltage 220/230/240VAC
Surge Power 22000VA
Frequency 50/60 Hz
Waveform Pure Sine wave
Transfer Time 10ms(For personal Computer);20ms(For Home Appliances)
Peak Efficiency (PV to INV) 94%
Peak Efficiency (Battery to INV) 93%
Overload Protection 5.5s@ >=140% load; 10.5s@110%~140% load
Crest Factor 3:1
Admissible Power Factor 0.6~1 (inductive or capacitive)
BATTERY
Battery Voltage 48VDC
Maximum Discharge Current 220A
Floating Charge Voltage 54VDC
OverCharge Protection 63VDC
Charging Method CC/CV
Solar Charger & AC Charger
Solar Charger TYPE MPPT
Max.PV Array Power 5500W*2
Max. PV Array Open Circuit Voltage 500VDC
PV Array MPPT Voltage Range 60VDC-500VDC
Max. Solar Input Current 18A*2
Max. Solar Charge Current 160A
Max. AC Charge Current 120A
Max. Charge Current 160A
PHYSICAL
Dimensions, D x W x H(mm) 544.5x414.5x123
Package Dimensions, D x W x H(mm) 637x495x214
Net Weight (Kgs) 14.8
Gross weight(Kgs) 16.95
Communication Interface RS232/RS485/Dry-contact
LCD YES
ENVIRONMENT
Operating Temperature Range -10°C to 55°C
Storage temperature -15°C~ 60°C
Humidity 5% to 95% Relative Humidity (Non-condensing)
Ingress Protection IP21

Product specifications are subject to change without further notice.

Inquiry Now


  • The 11000W Parallel Pure Sine Wave Hybrid Solar Inverter is suitable for:

    • Household off-grid solar power systems
    • Home energy storage systems
    • Backup power systems
    • Higher-load household electrical applications
    • Solar systems requiring parallel inverter configuration
