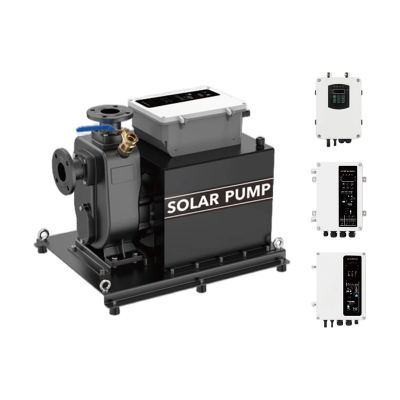

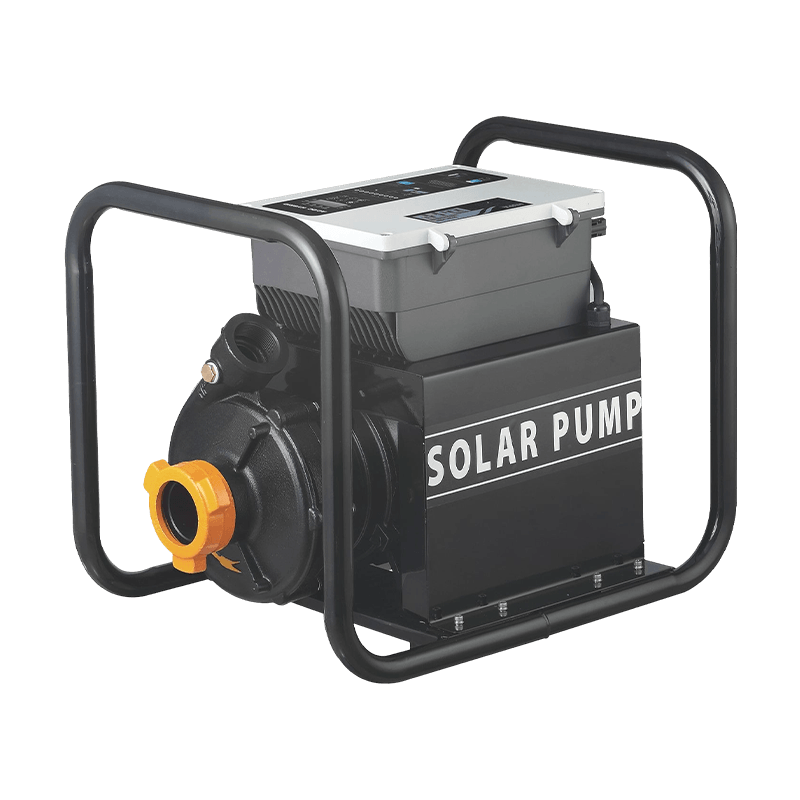

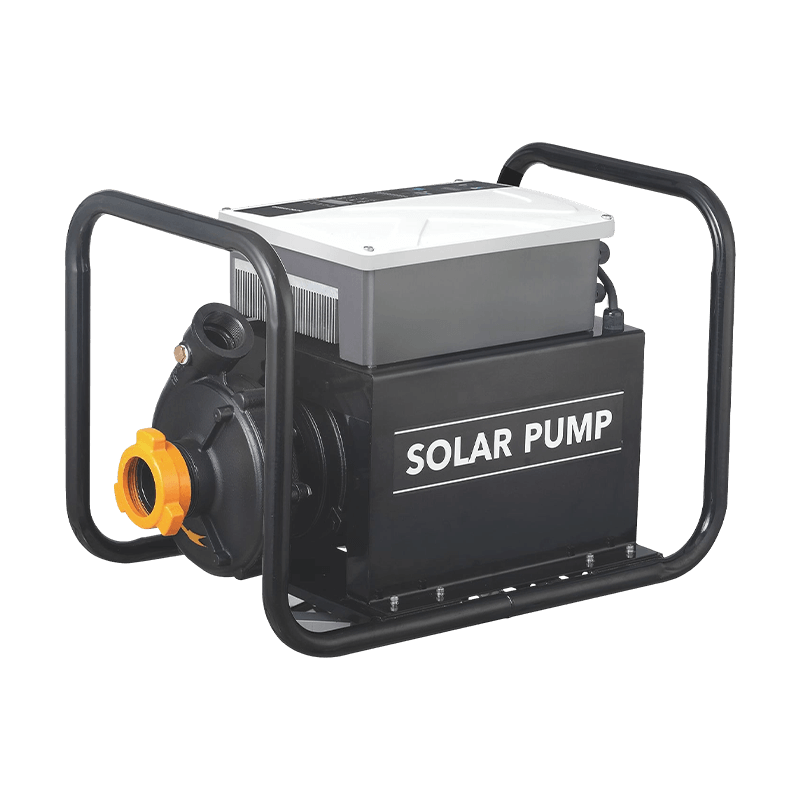

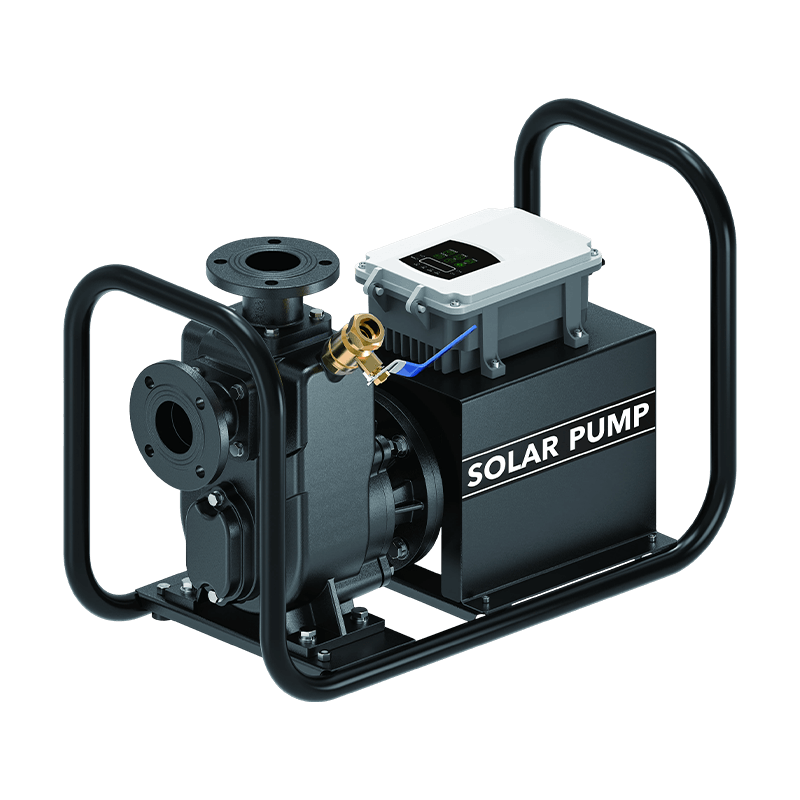

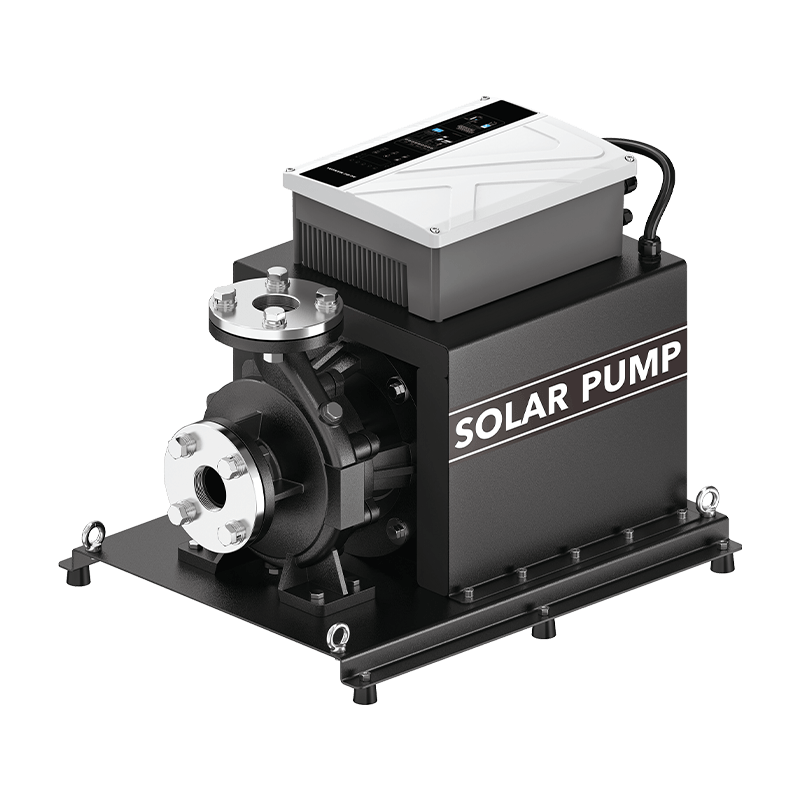

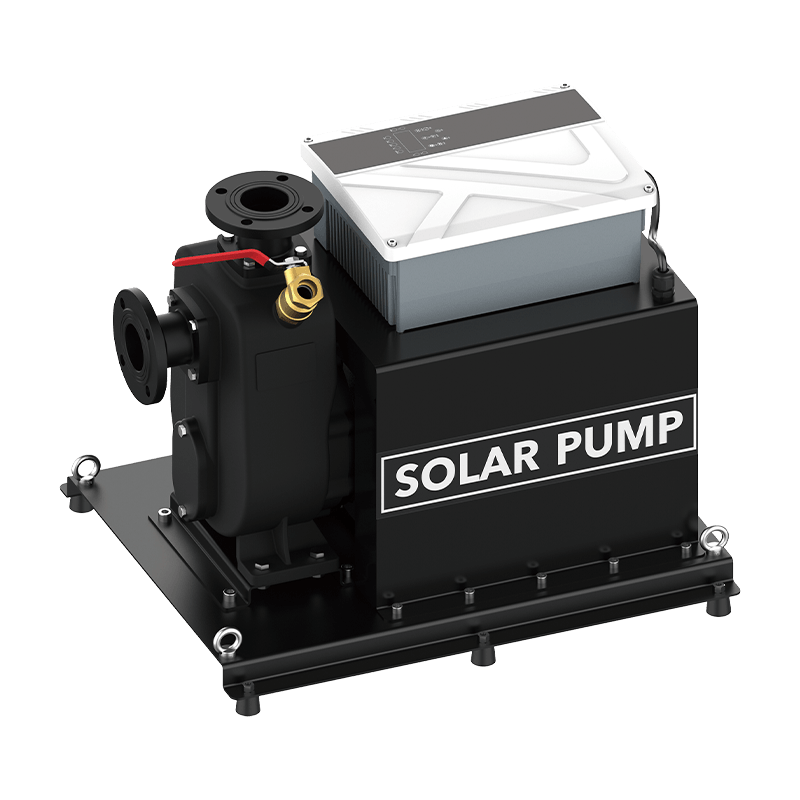

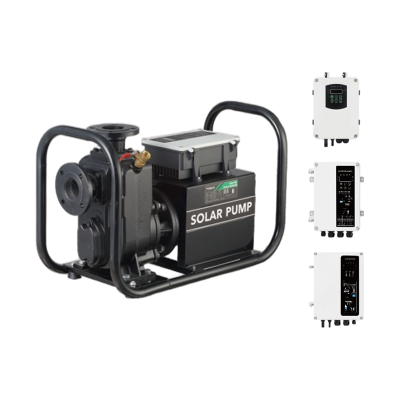

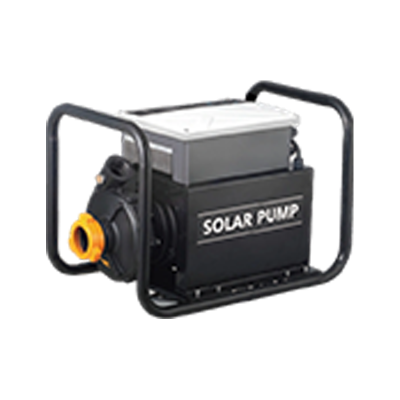

TCPM, TBZ, TISW 2-Inch Solar Centrifugal Pump for Sprinkler Irrigation 2800W-11000W

The 2-Inch Solar Centrifugal Pump is widely used for:

• Long-distance sprinkler irrigation
• Farmland irrigation
• Mountain and hillside water delivery
• Garden irrigation
• Irrigation areas without grid electricity

High-Head Water Delivery
2-Inch Solar Centrifugal Pump for Sprinkler Irrigation 2800W-11000W is designed for applications requiring long-distance water transfer and higher delivery heads.

Large-Flow Irrigation

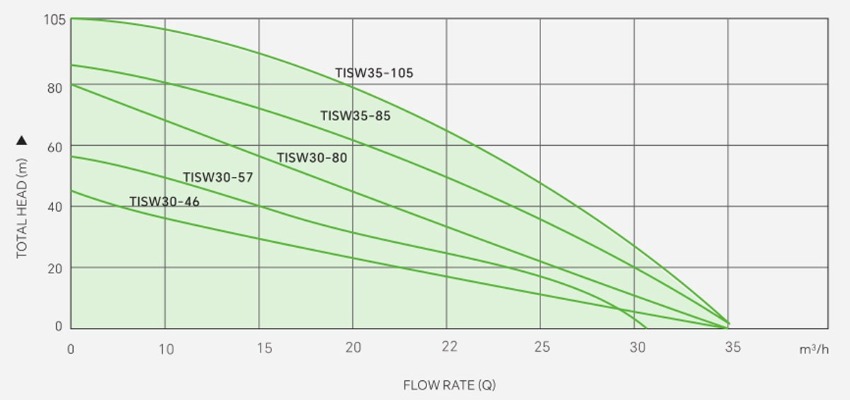

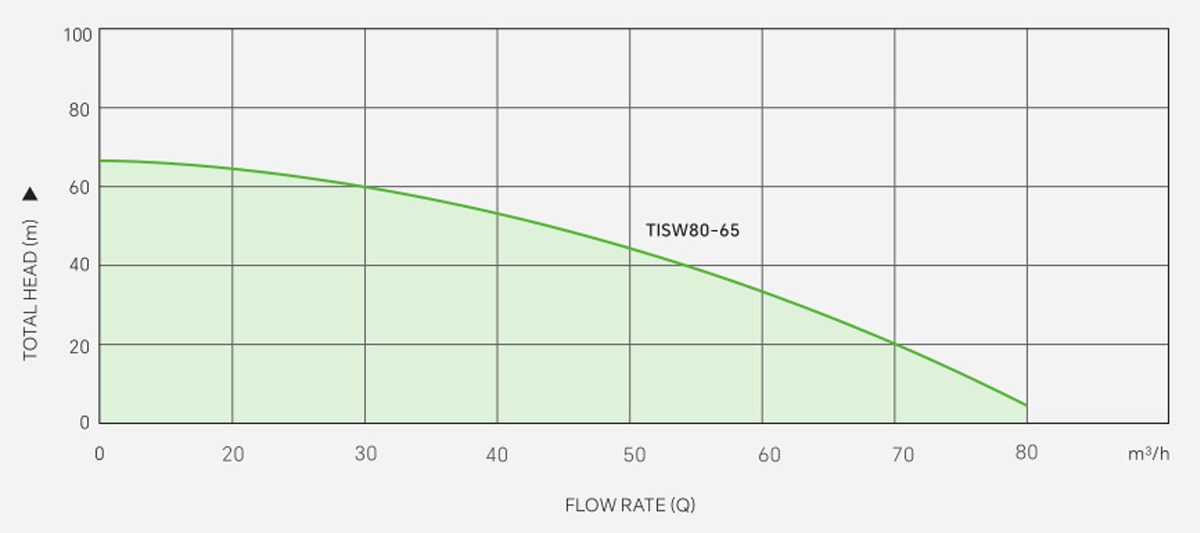

The 2-inch TISW configuration provides a specified flow range of 10-50 m³/h and a maximum head range of 32-50 m.

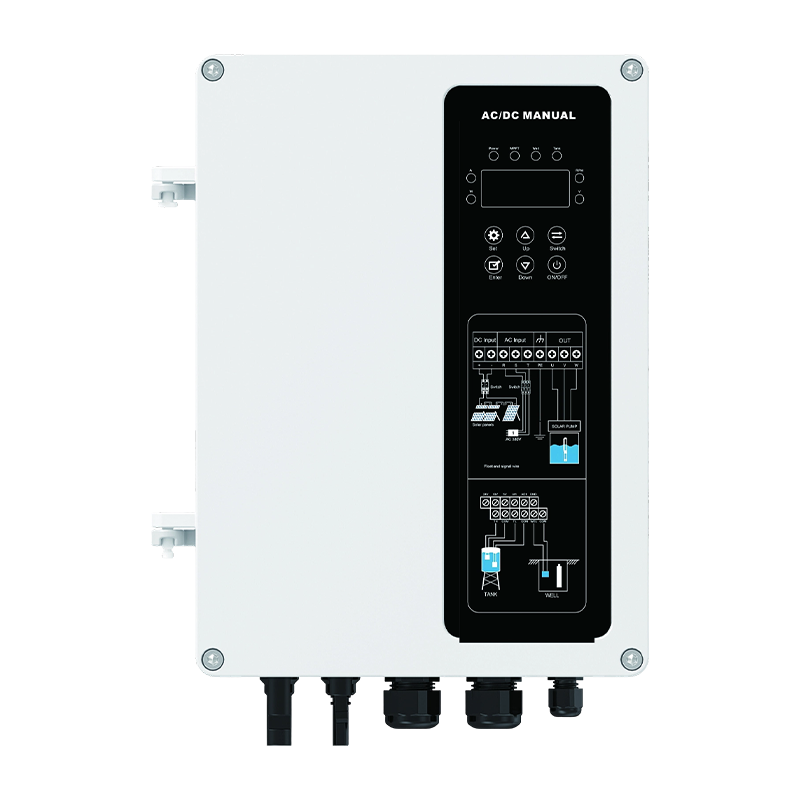

MPPT Solar Power System
TCPM uses an MPPT permanent magnet motor with an 8-pole motor design for torque and speed control.

AC Power Supplement
When photovoltaic power is below 90% of rated power, AC power can supplement the insufficient power to support full-power operation for applicable configurations.

Multiple Power Sources
TBZ and TISW can be powered by solar panels or 380V electricity, supporting different agricultural pumping system configurations.

Automatic Operation
The applicable models support automatic start and stop when a float switch is installed.

Soft Start and Frequency Conversion
Soft start and automatic frequency conversion help manage motor operation during changing solar conditions.

Remote Monitoring
An optional app remote control function is available for applicable configurations to monitor power, current, voltage, and other operating information.

2-Inch Solar Centrifugal Pump for Sprinkler Irrigation 2800W-11000W supports customer brand customization and project-based OEM/ODM services. TBZ and TISW can be developed according to customer requirements. Branding, labeling, packaging, and agreed product configurations can be discussed for bulk orders.

Q1: What models are available for 2-Inch Solar Centrifugal Pump for Sprinkler Irrigation 2800W-11000W?
The available models are TCPM, TBZ, and TISW. Their configurations differ in motor design, power supply, and irrigation applications.

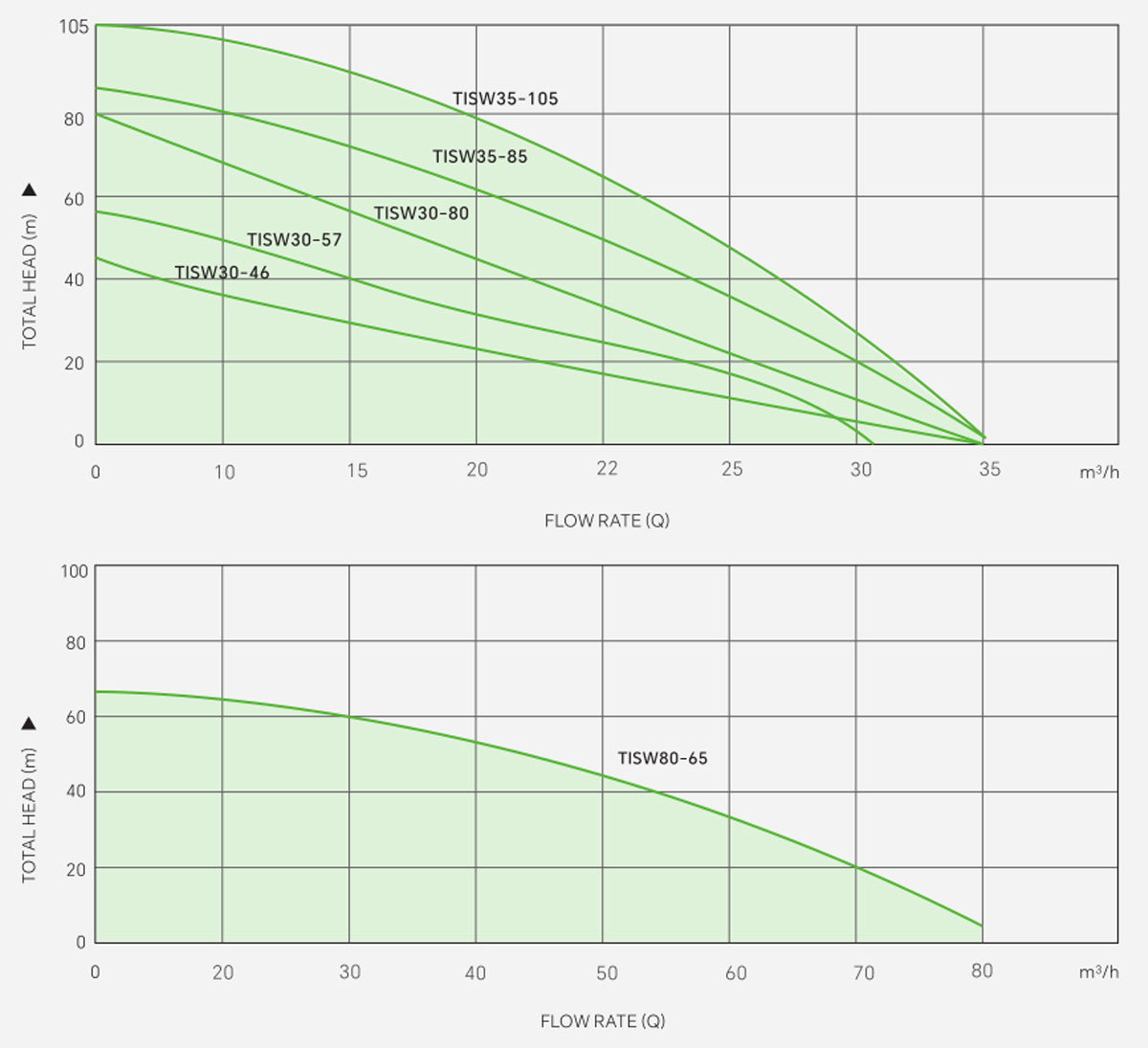

Q2: What is the flow and head range of the TISW 2-inch pump?
The supplied specifications state a flow range of 10-50 m³/h and a head range of 32-50 m.

Q3: Can these pumps use both solar and AC power?
TBZ and TISW can use solar panels or 380V electricity. When photovoltaic power is insufficient, AC power can supplement the shortage for applicable configurations.

Q4: Can the pump be customized for a specific agricultural project?
Yes. TBZ and TISW support ODM according to customer requirements. Specific flow, head, power, and system requirements should be confirmed before production.

Q5: What is the MOQ for 2-Inch Solar Centrifugal Pump for Sprinkler Irrigation 2800W-11000W?
The MOQ is 100 pcs, with a standard lead time of 35 days. Payment terms include TT, DP, and LC.
