MH1500S-12 1500W 230VAC Pure Sine Wave Hybrid Solar Inverter with MPPT

1500W 230VAC Pure Sine Wave Hybrid Solar Inverter with MPPT is designed for household off-grid and hybrid solar power systems. It converts DC electricity from solar batteries into 230VAC power for connected loads. The hybrid design supports solar energy use, battery storage, and backup power management. With pure sine wave output and built-in MPPT functionality, it can be integrated into household solar systems where stable AC power and efficient solar energy management are required.

Purchasing Information
MOQ: 100 pcs
Lead Time: 35 days
Payment Terms: TT / DP / LC
Shipping Methods: Maritime shipping / Air freight / Road transportation

For bulk orders, buyers can confirm the required quantity, target market, system configuration, packaging requirements, and technical specifications before production.

Technical Specifications
Item Specification
Product Name: 1500W 230VAC Pure Sine Wave Hybrid Solar Inverter with MPPT
Model MH1500S-12
Rated Power 1500W
AC Output Voltage 230VAC
Battery Voltage 12V

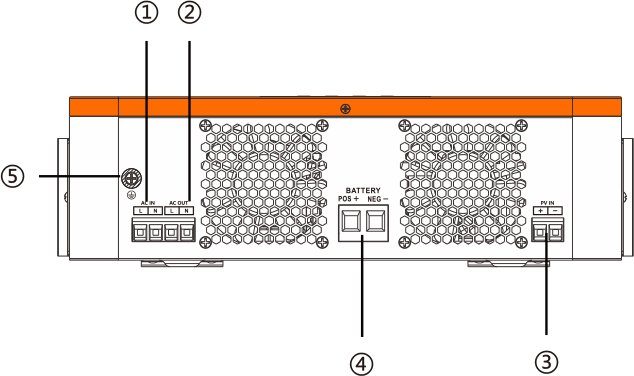

Bottom View

vbeyqmba1789466861

1. AC input

2. AC output

3. PV input

4. Battery input

5. Grounding

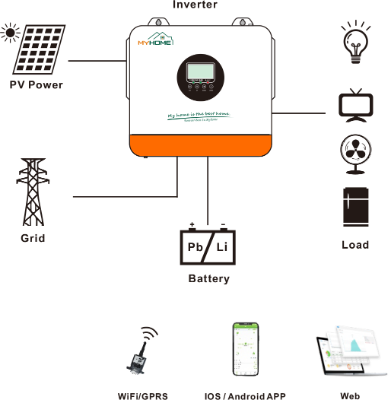

System Diagram

wwiickqh1789467013

Technical Data

MODEL CM1500-12S CM1500-12N
Capacity 1500VA/1500W 1500VA/1500W
Parallel Capability NO NO
Lithium Battery Activation YES(By PV) NO
Lithium battery Communication NO NO
INPUT
Nominal Voltage 230VAC
Acceptable Voltage Range 170-280VAC(For personal Computer);90-280VAC(For Home Appliances)
Frequency 50/60 Hz (Auto sensing)
OUTPUT
Nominal Voltage 220/230VAC±5%
Rated Power 1500VA/1500W 1500VA/1500W
Battery Mode Power 1200VA/1200W 1200VA/1200W
Surge Power 3000VA 3000VA
Frequency 50/60 Hz
Waveform Pure Sine wave
Transfer Time 10ms(For personal Computer);20ms(For Home Appliances)
Peak Efficiency (PV to INV) 96%
Peak Efficiency (Battery to INV) 93%
Overload Protection 5s@ >=140% load; 10s@100%~140% load
Crest Factor 3:1
Admissible Power Factor 0.6~1 (inductive or capacitive)
BATTERY
Battery Voltage 12Vdc 12Vdc
Floating Charge Voltage 13.5Vdc 13.5Vdc
OverCharge Protection 16.5Vdc 16.5Vdc
Charging Method CC/CV
SOLAR CHARGER & AC CHARGER
Solar Charger TYPE MPPT
Max.PV Array Power 2000W 2000W
Max. PV Array Open Circuit Voltage 500VDC
PV Array MPPT Voltage Range 30VDC~500VDC
Max. Solar Input Current 15A
Max. Solar Charge Current 100A 100A
Max. AC Charge Current 60A 60A
Max. Charge Current(AC+PV) 100A 100A
PHYSICAL
Dimensions, D x W x H(mm) 334x293x98.5
Package Dimensions, D x W x H(mm) 402x368x174
Net Weight (Kgs) 4.0 4.0
Gross weight(Kgs) 4.9 4.9
Communication Interface RJ45 For Wifi
ENVIRONMENT
Operating Temperature Range -10°C to 55°C
Storage temperature -15°C~ 60°C
Humidity 5% to 95% Relative Humidity (Non-condensing)
Ingress Protection IP21

Product specifications are subject to change without further notice

Inquiry Now


  • The 1500W 230VAC Solar Inverter with is suitable for:

    • Household off-grid solar power systems
    • Home backup power systems
    • Solar battery storage systems
    • Small residential solar installations
    • Remote areas without stable grid power
